Toyota Truck
>>
2005
>>
RAV4 4WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Condenser HVAC
Condenser HVAC

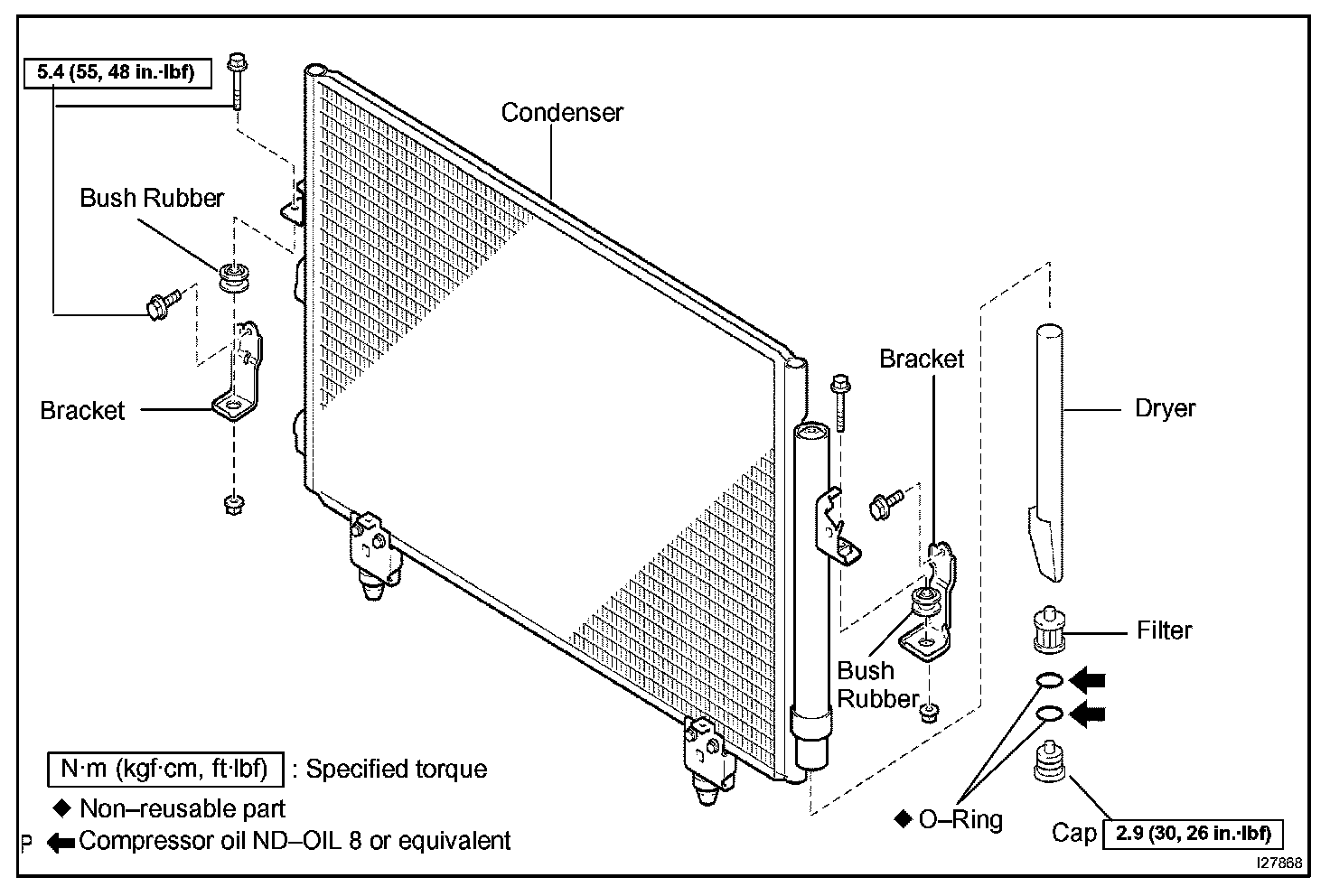

Condenser Part 1:

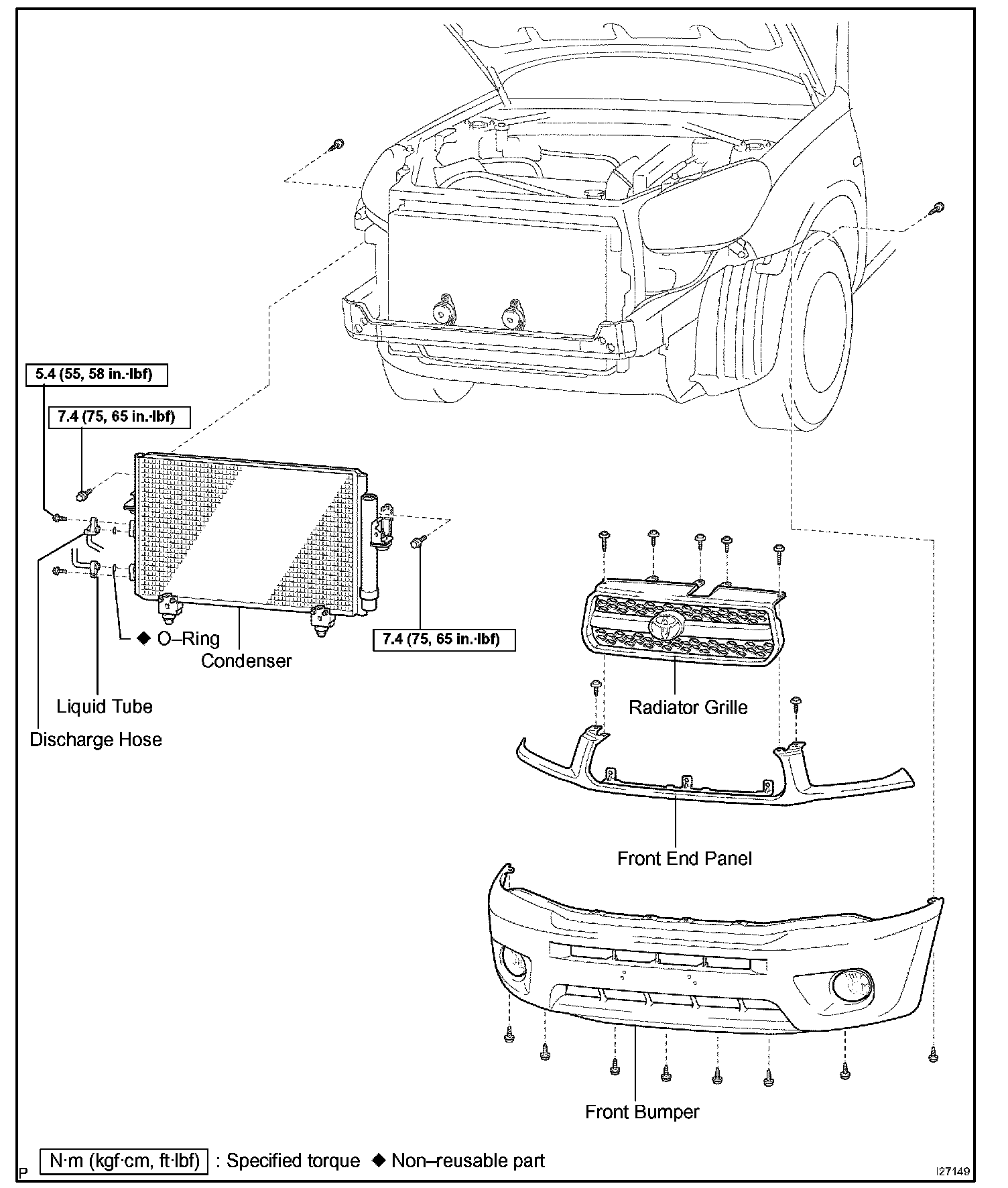

Condenser Part 2:
