Toyota Truck
>>
2005
>>
RAV4 4WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
T5 - Z2
T5 - Z2

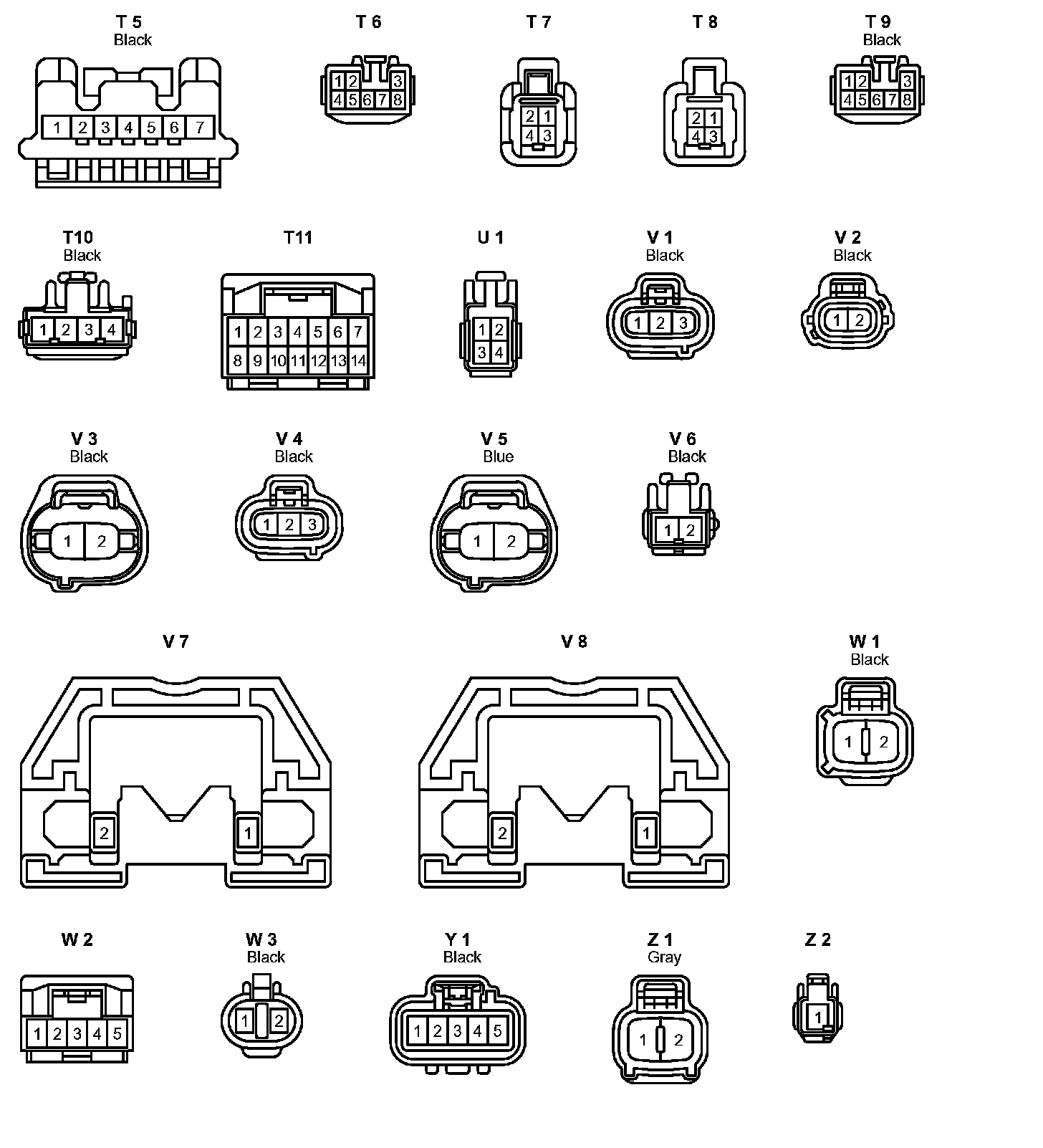

T5 - Z2:
