Clutch Switch Circuit

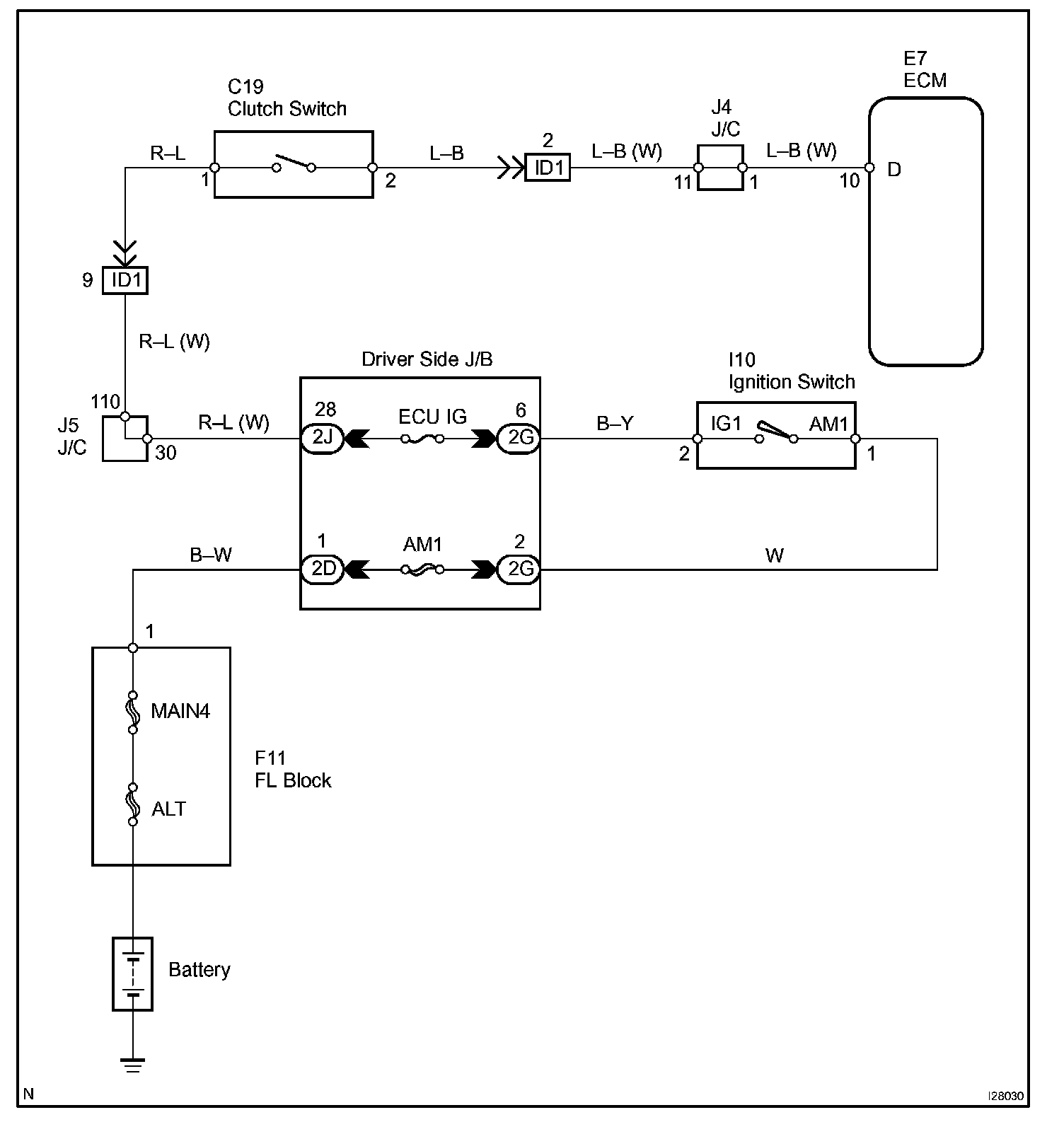

Clutch Switch Circuit (Only for M/T)

CIRCUIT DESCRIPTION

When the clutch pedal is depressed, the clutch switch sends a signal to the ECM. When the signal is input to the ECM during the cruise control driving, the cruise control ECU cancels the cruise control.
