VSC Warning Light Circuit (Does Not Light Up)

VSC Warning Light Circuit (Does not light up)

CIRCUIT DESCRIPTION

If the ECU stores DTC to shut down VSC & TRAC operation, the VSC warning light turns on on the combination meter.

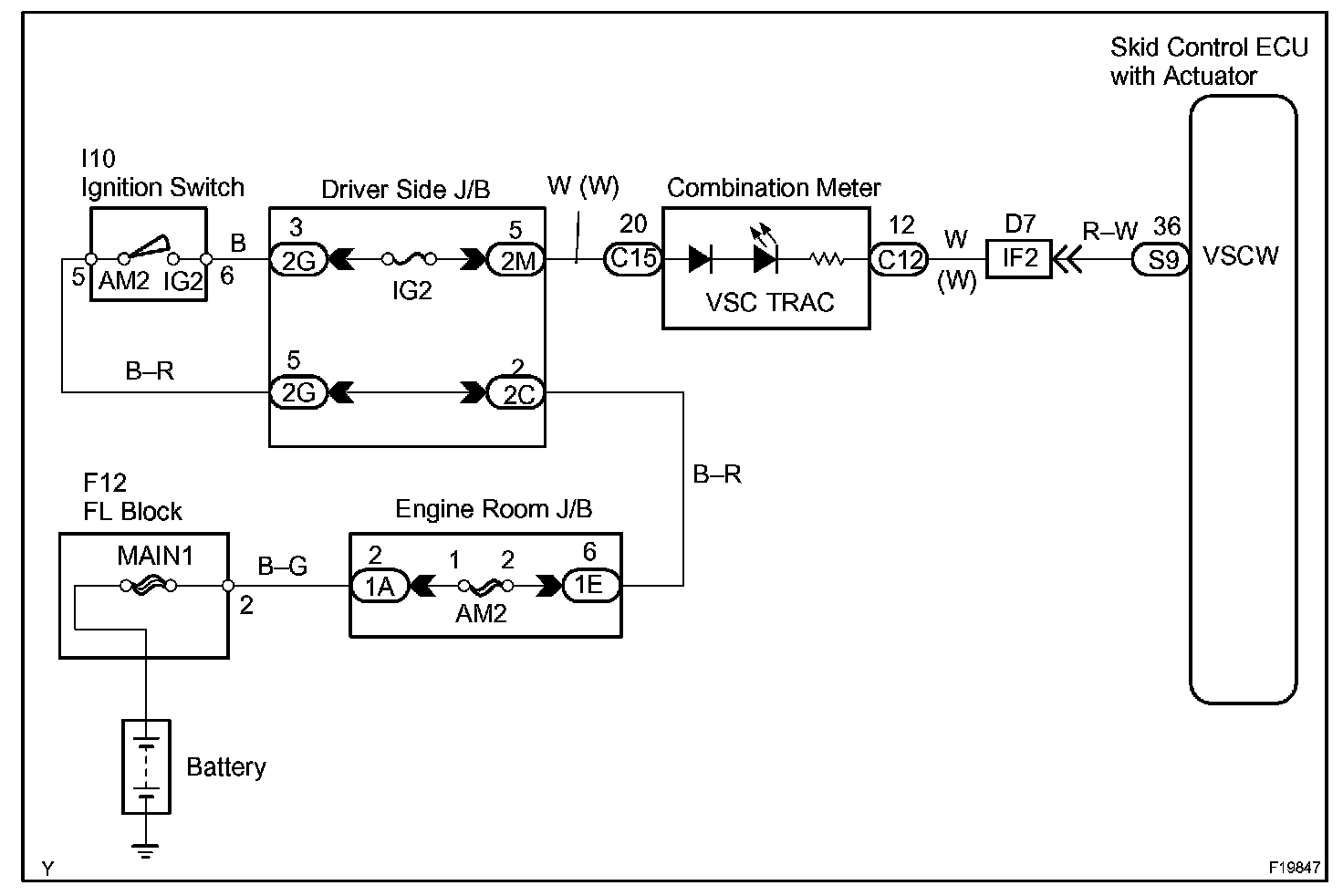

Wiring Diagram:

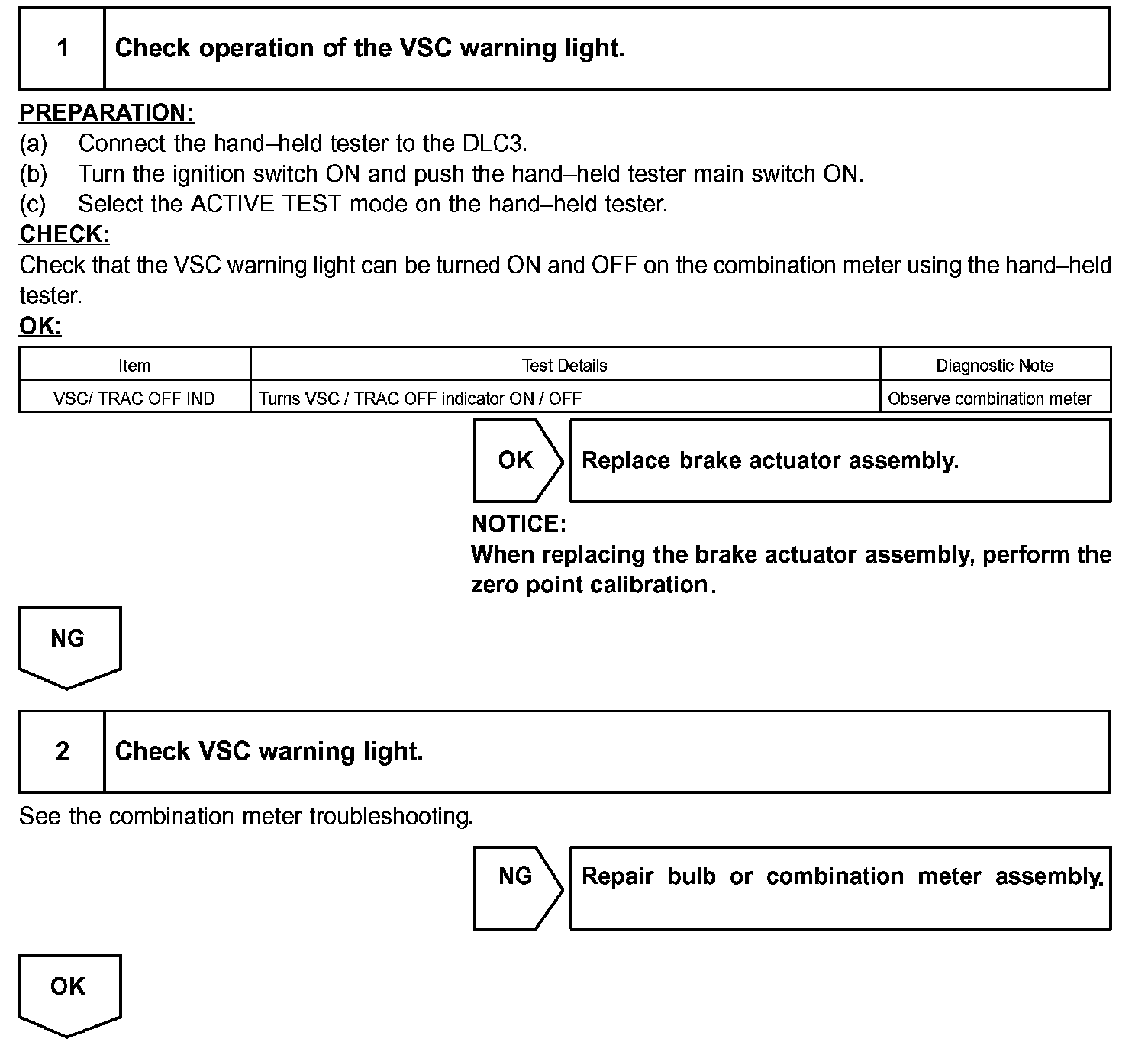

Step 1 - 2:

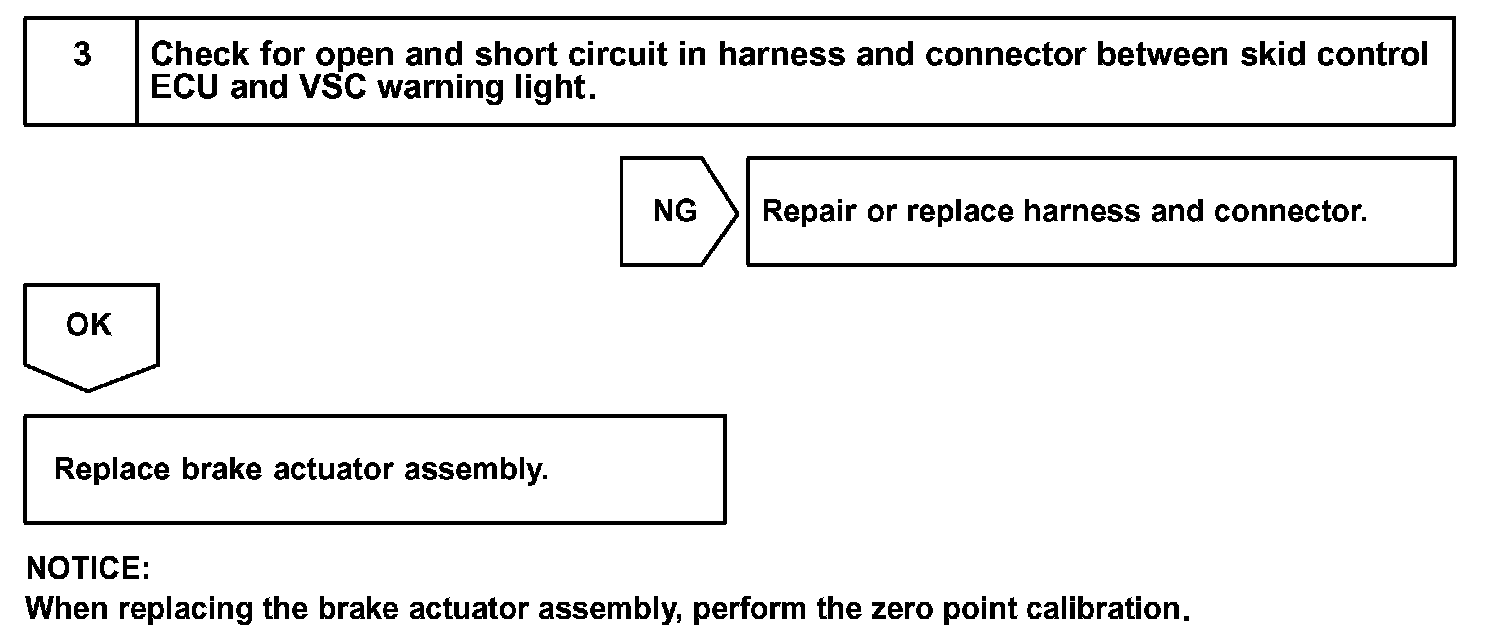

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
