VSC Warning Buzzer Circuit

VSC Warning Buzzer Circuit

CIRCUIT DESCRIPTION

The VSC warning buzzer sounds during VSC operation.

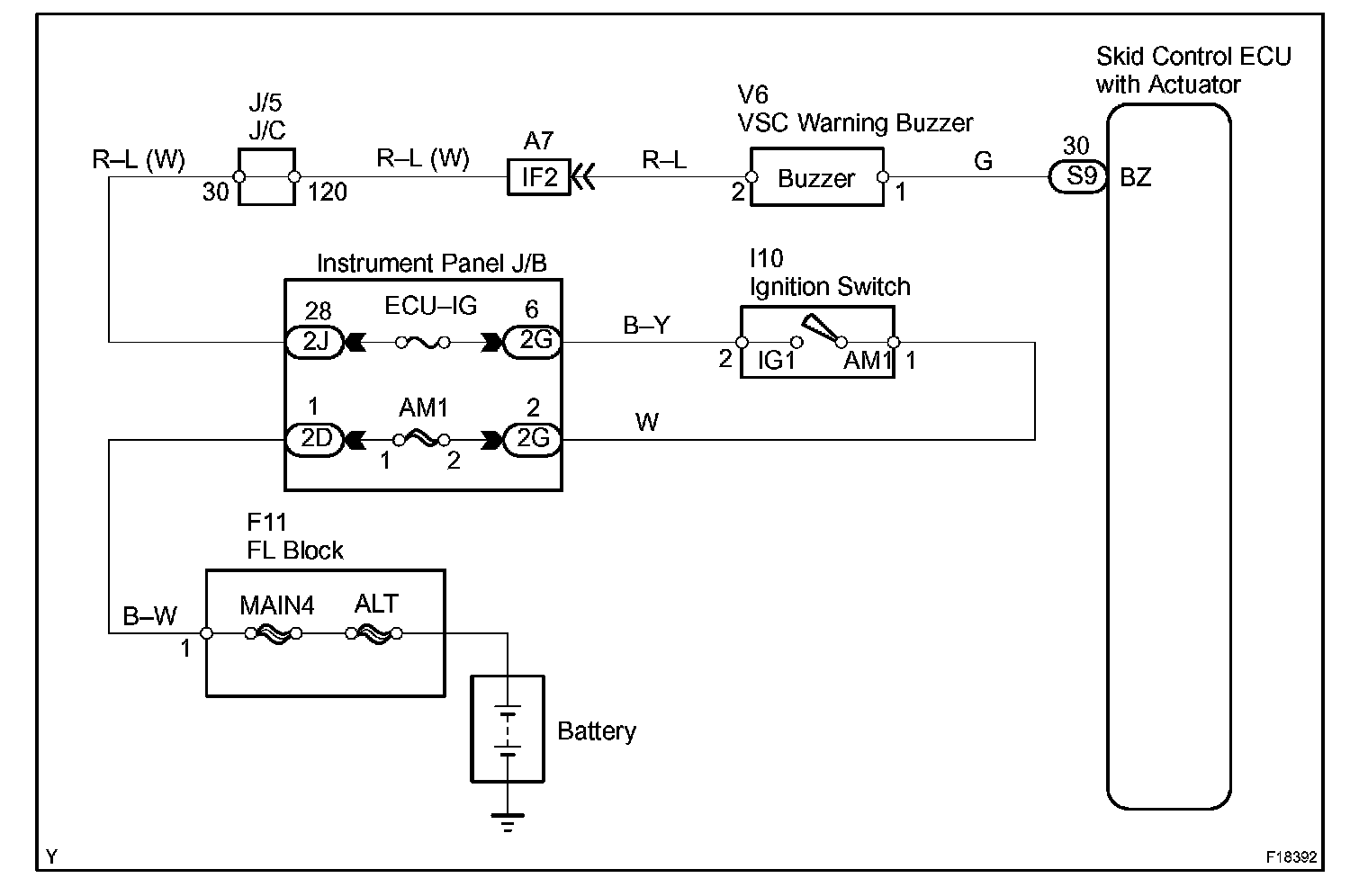

Wiring Diagram:

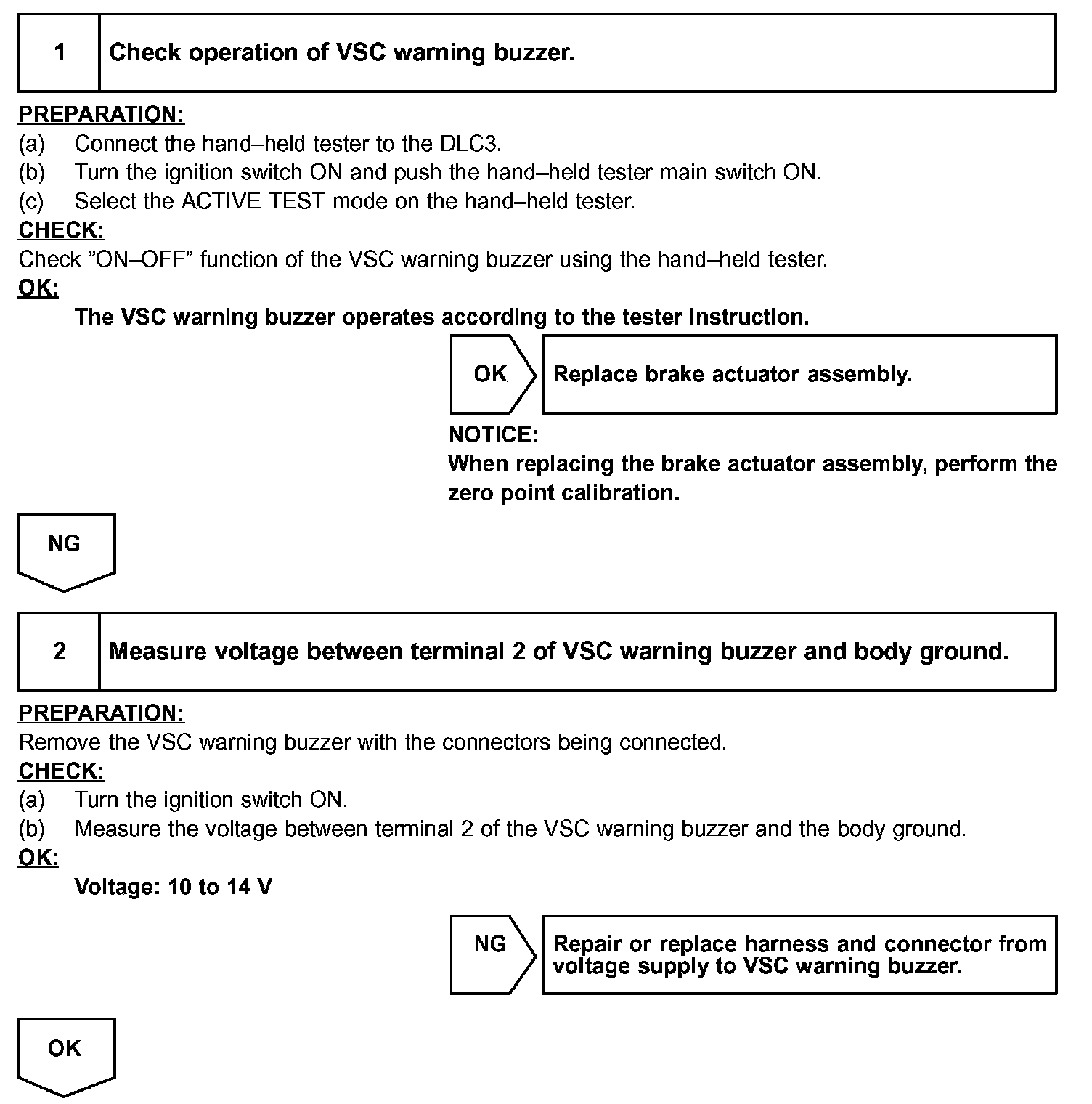

Step 1 - 2:

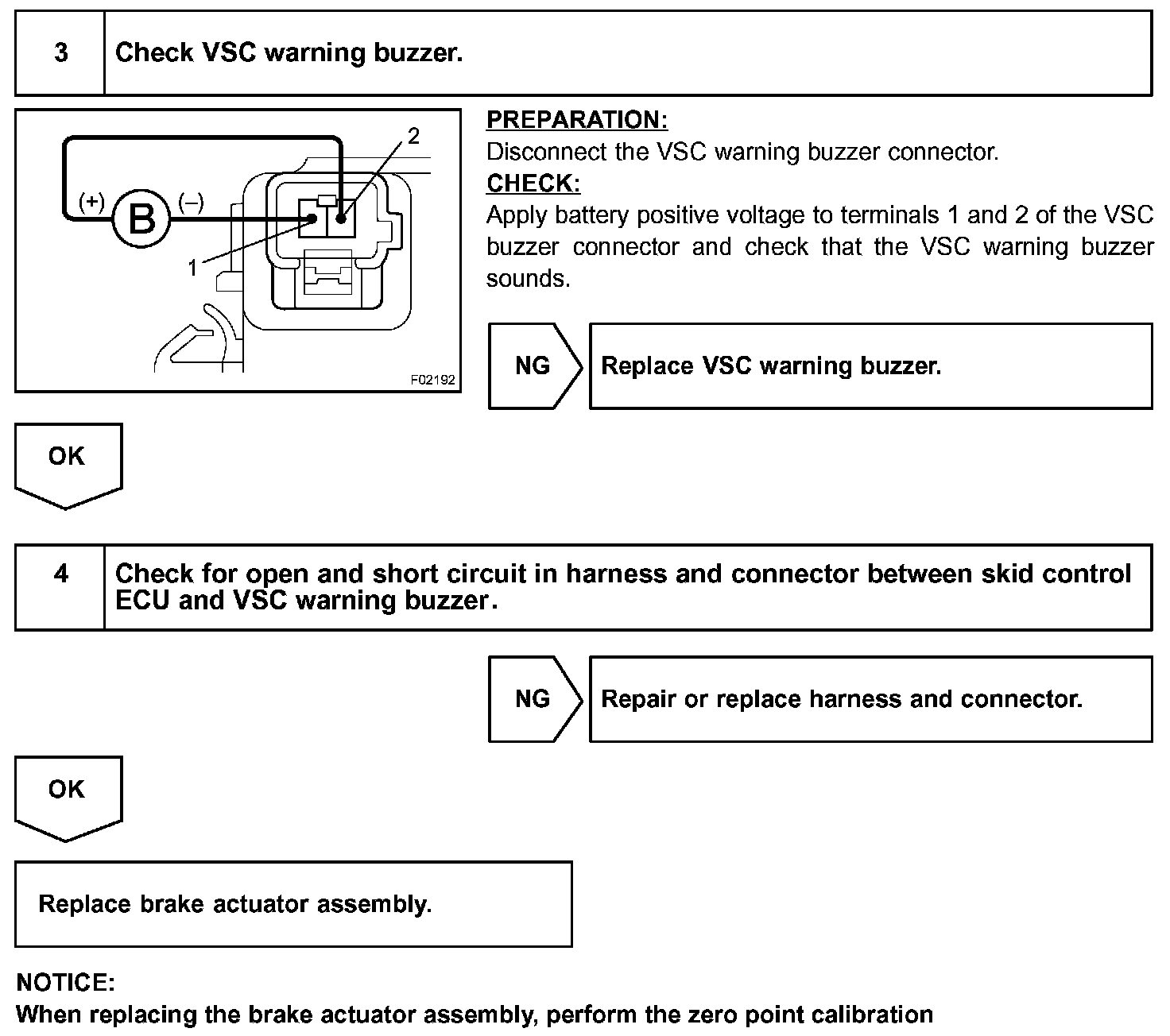

Step 3 - 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
