Slip Indicator Light Circuit

Slip Indicator Light Circuit

CIRCUIT DESCRIPTION

The Slip indicator light blinks during VSC & TRAC operation.

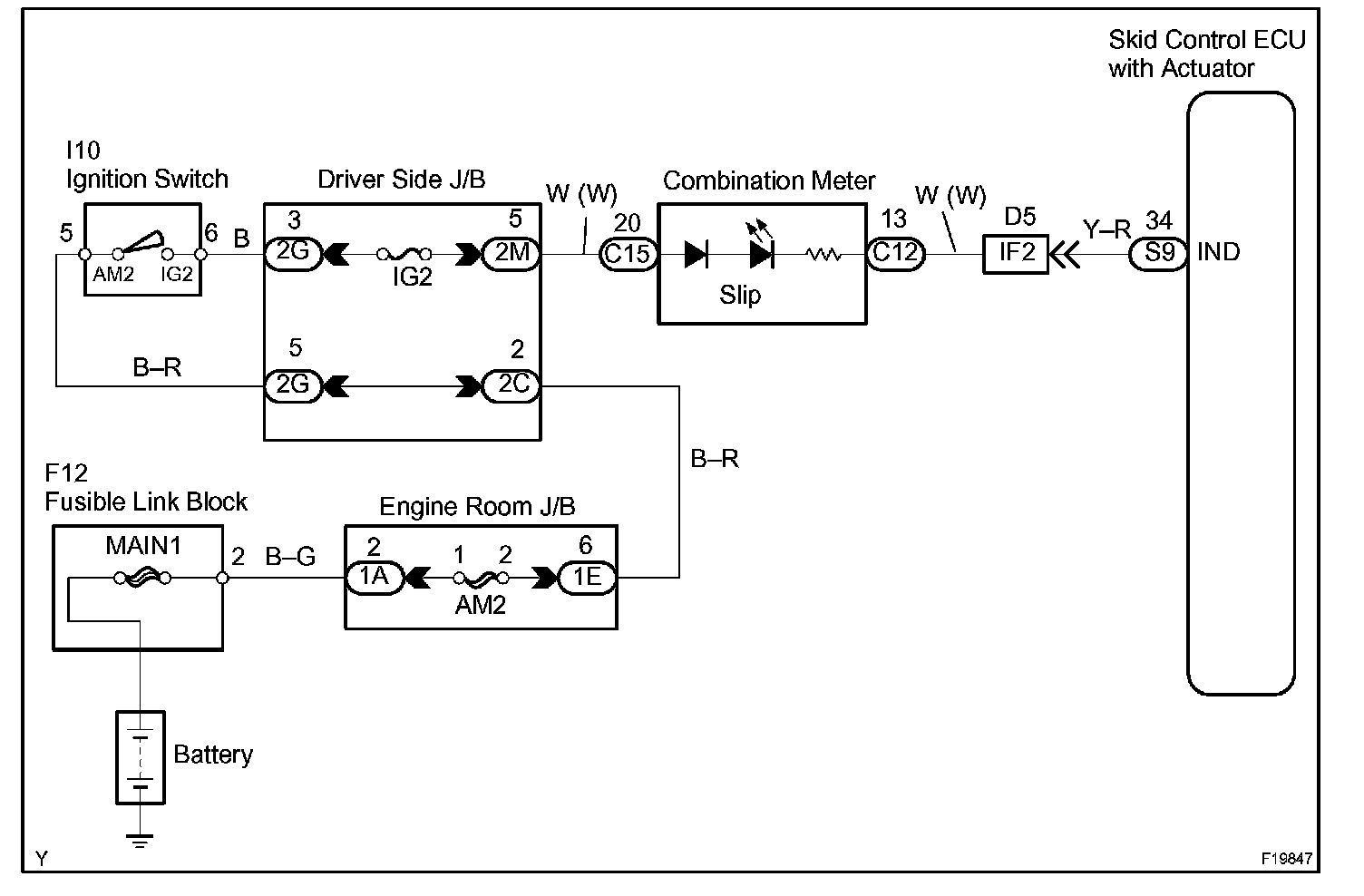

Wiring Diagram:

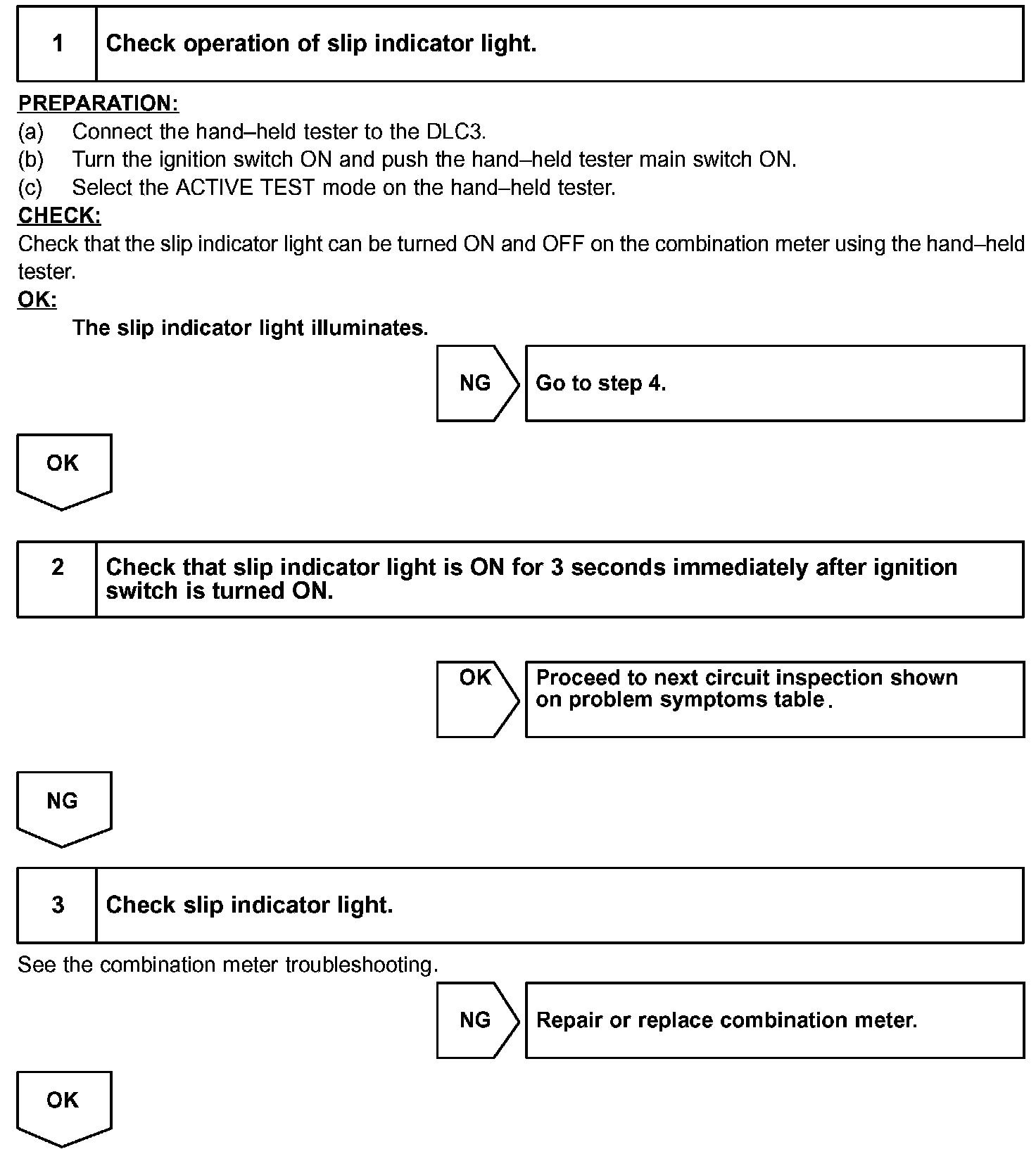

Step 1 - 3:

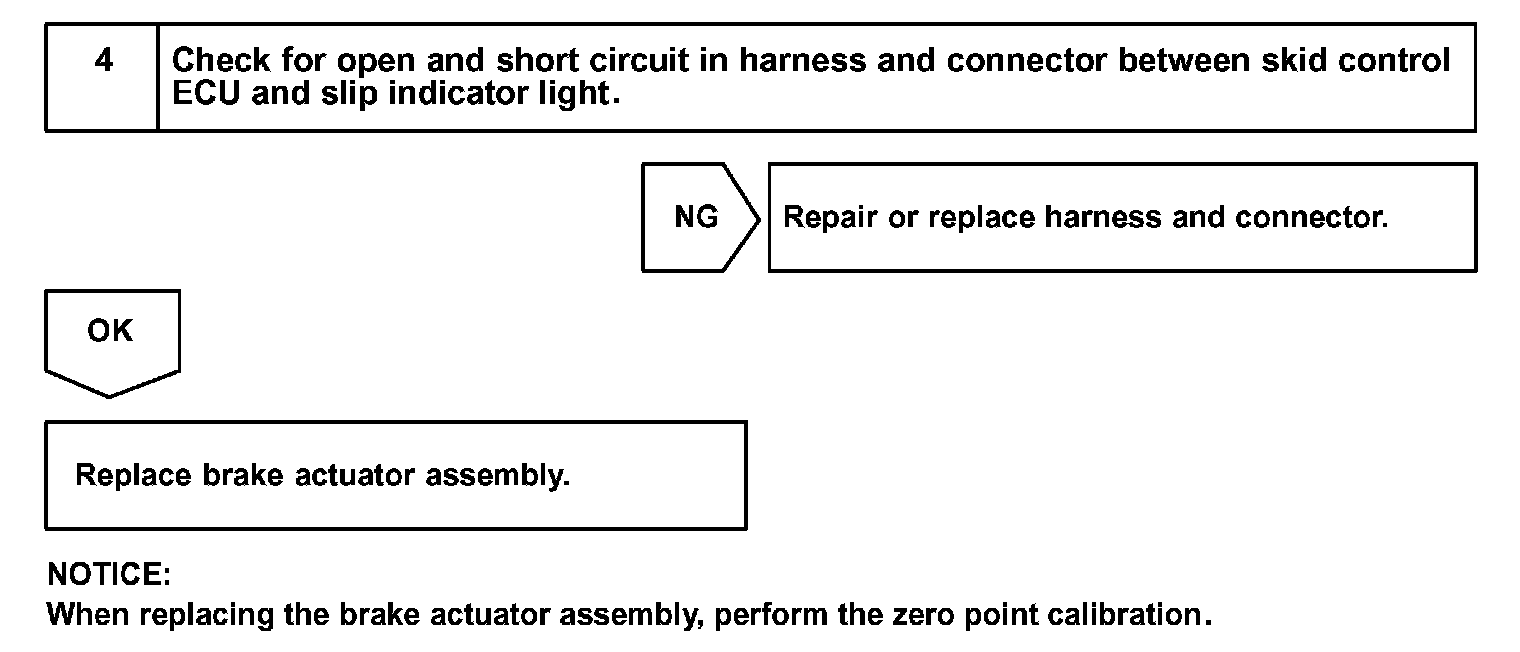

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
