ABS Warning Light Circuit
ABS Warning Light CircuitCIRCUIT DESCRIPTION
If the ECU detects trouble, the ABS warning light will be illuminated and ABS control will be prohibited. At this time, the ECU records a DTC in memory.
Connect terminals TC and CG of the DLC3, make the ABS warning light blink and output the DTC.

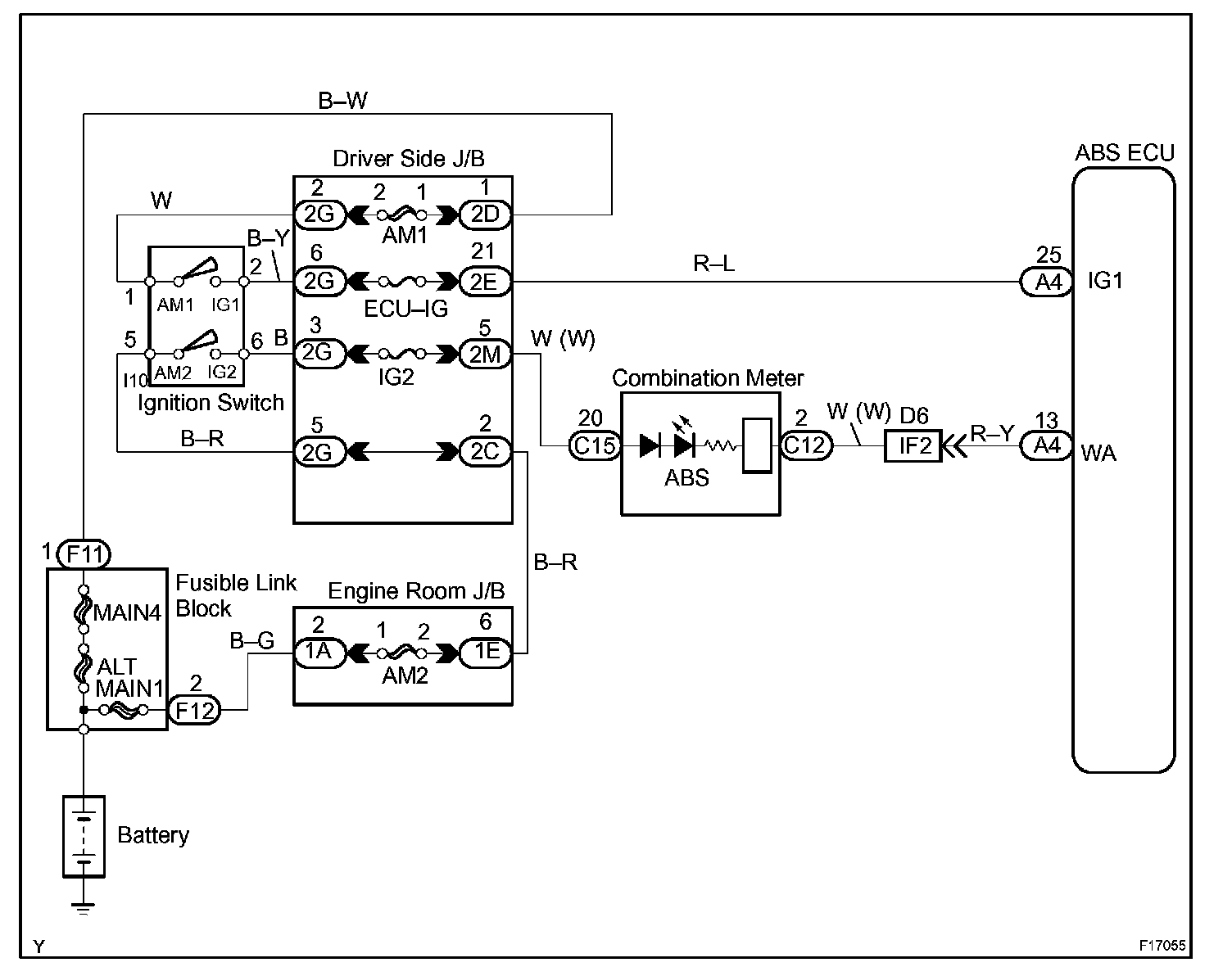

Wiring Diagram:

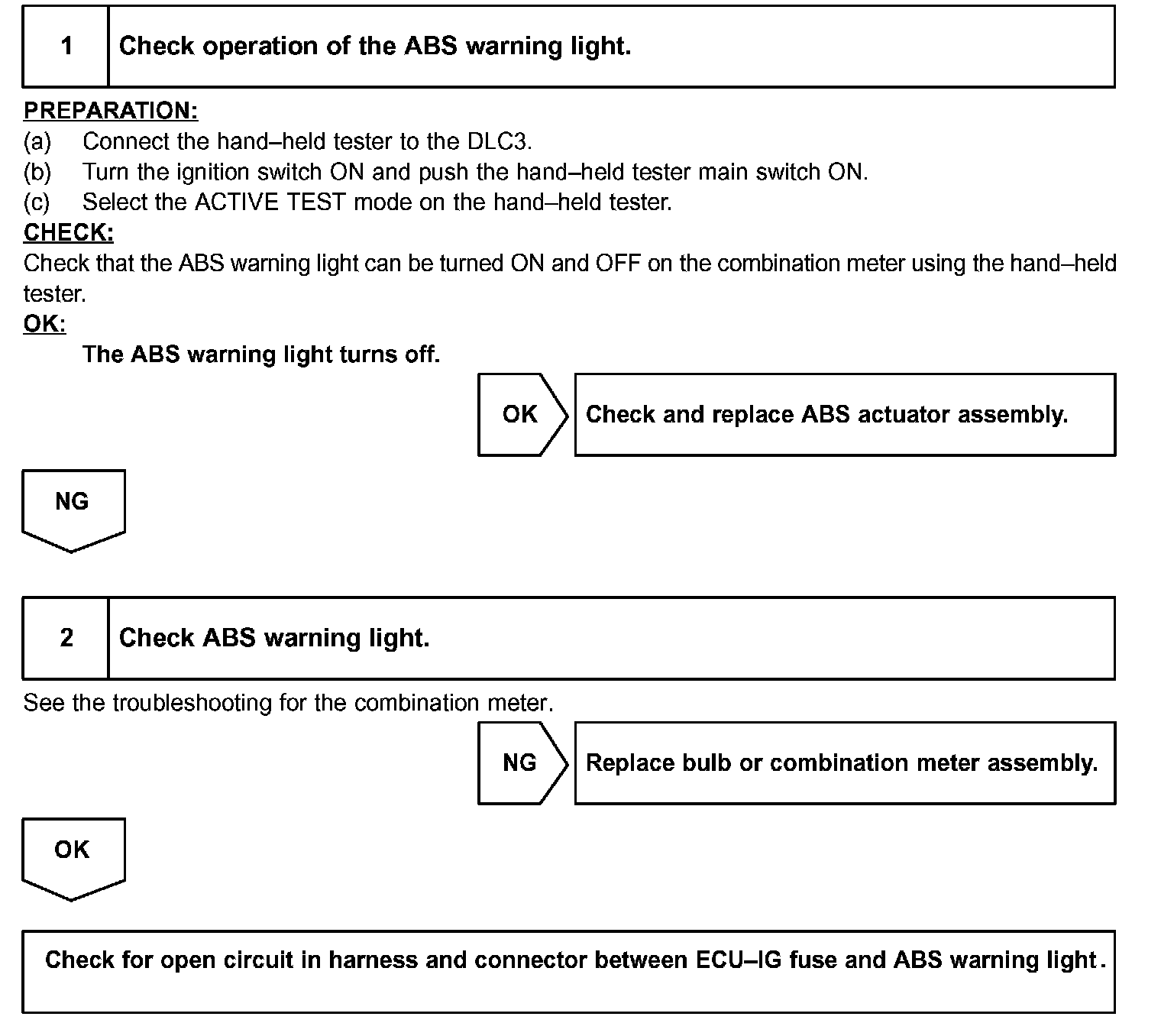

Step 1 - 2:

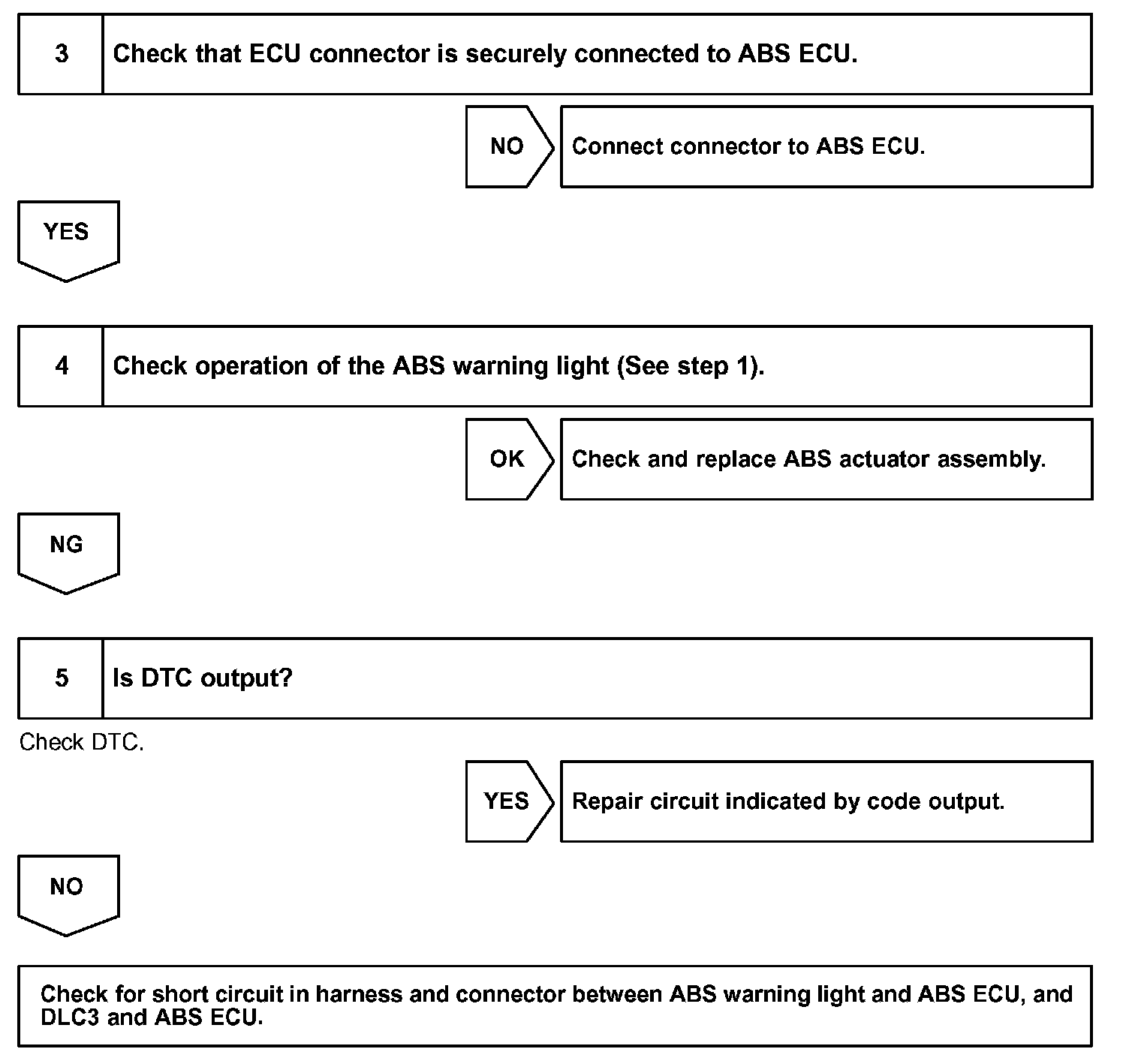

Step 3 - 5:
INSPECTION PROCEDURE

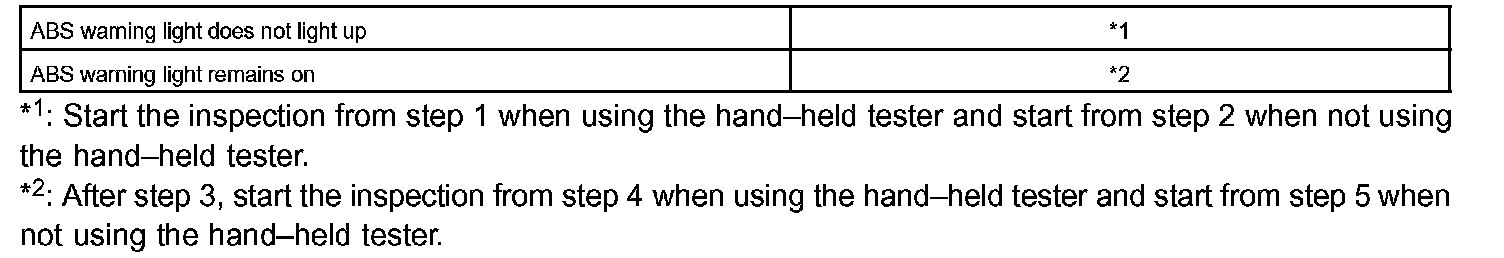

Troubleshoot in accordance with the table for each trouble symptom.
