With EBD & BA & TRAC & VSC System
With EBD & BA & TRAC & VSC System

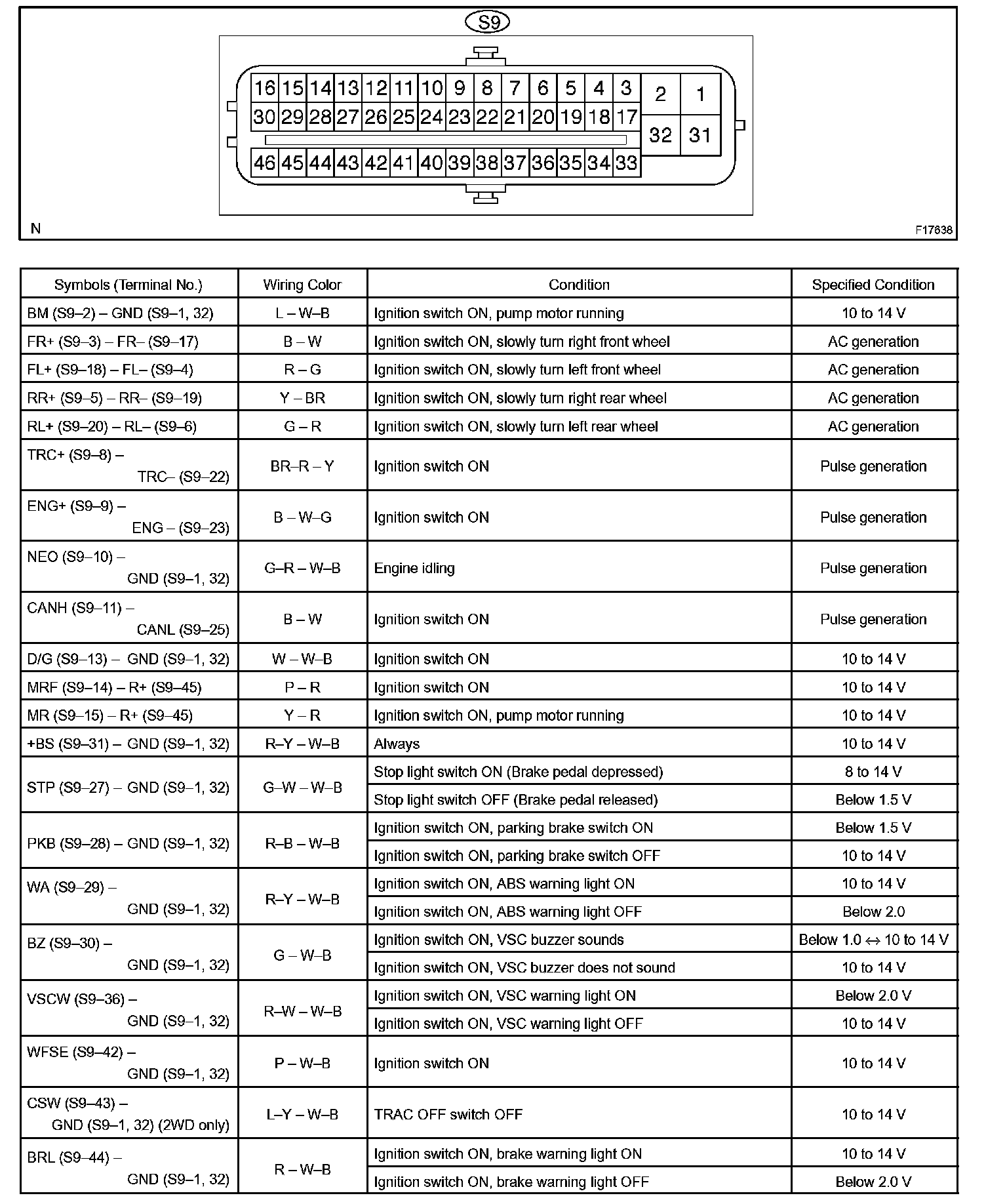

Terminals Of Control Module/Pinouts Part 1:

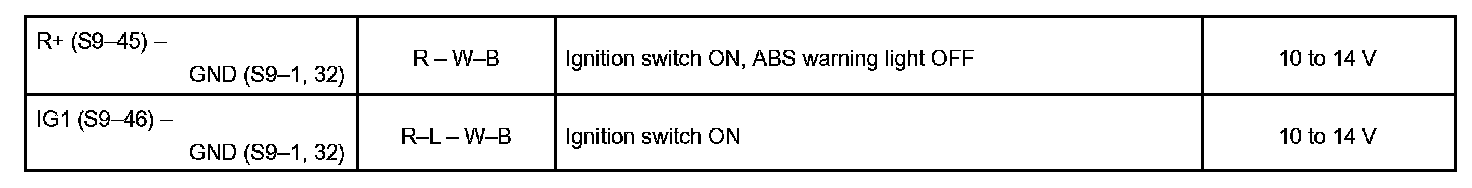

Terminals Of Control Module/Pinouts Part 2:
