Heated Element: Testing and Inspection

W/ Mirror Heater: INSPECT MIRROR HEATER OPERATION

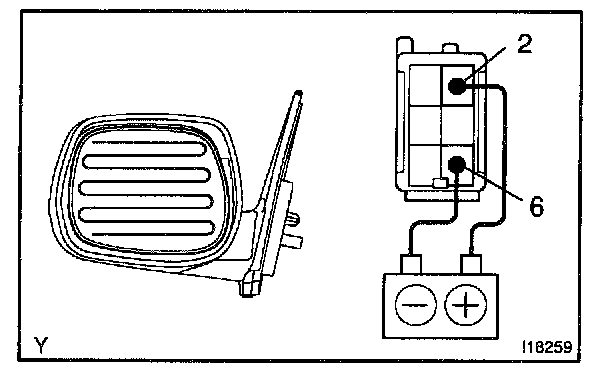

a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 6.
b. Check that the mirror becomes warm.

HINT: If will take a short time for the mirror to become warm.

If the mirror does not become warm, replace the mirror assembly.
