Power Door Lock Switch: Testing and Inspection

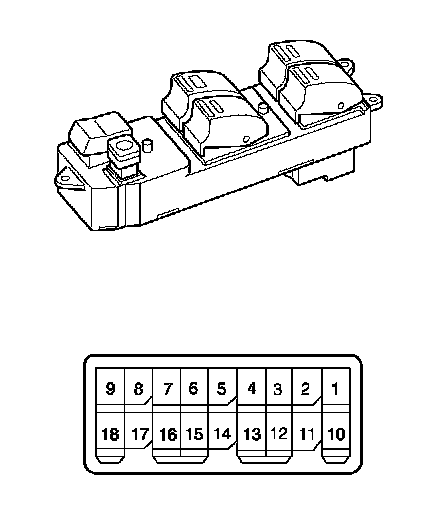

1. Driver's door:

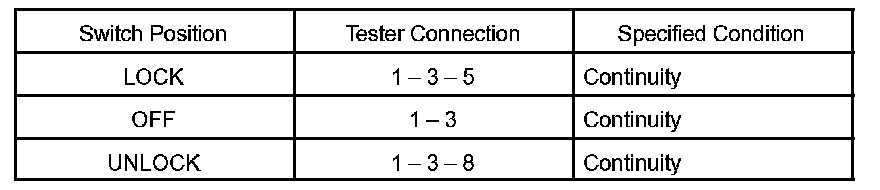

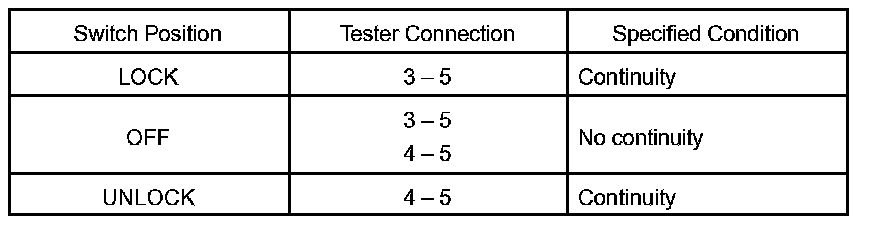

INSPECT DOOR LOCK CONTROL SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.

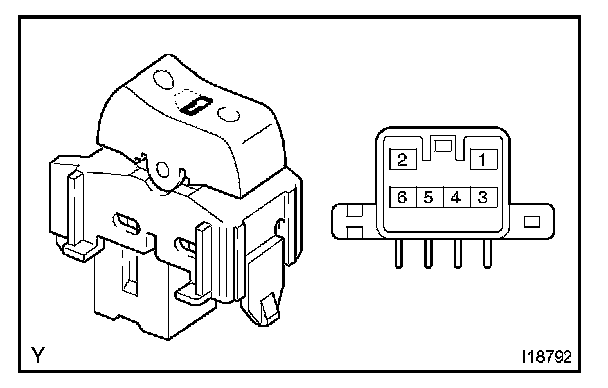

2. Passenger's door:

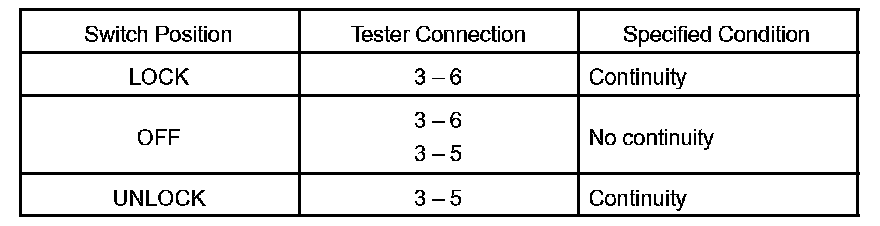

INSPECT DOOR LOCK CONTROL SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.

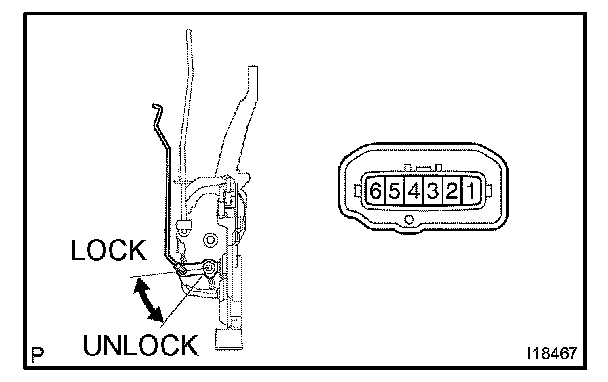

3. Driver's door:
INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.

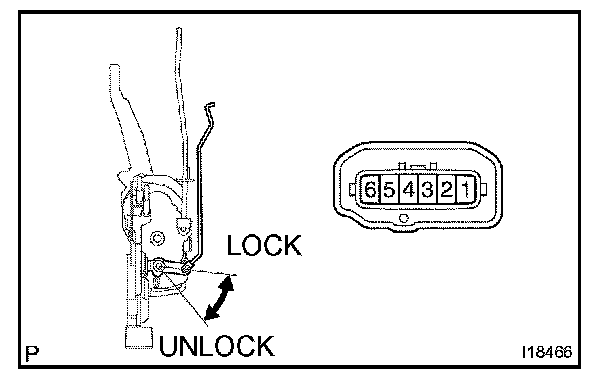

4. Passenger's door:
INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.

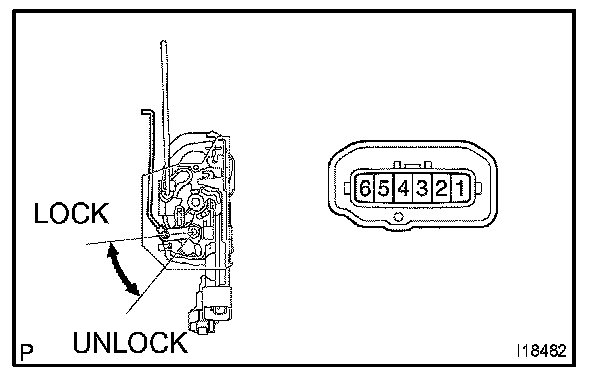

5. Back door:
INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.

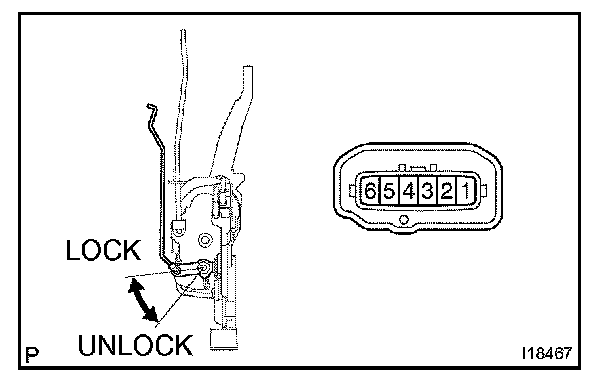

6. Driver's door:

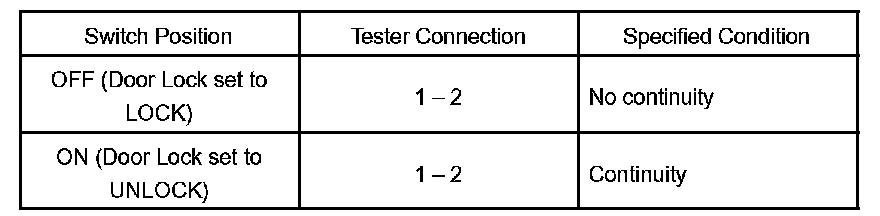

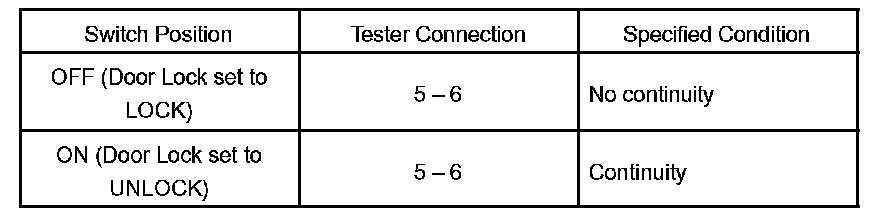

INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.

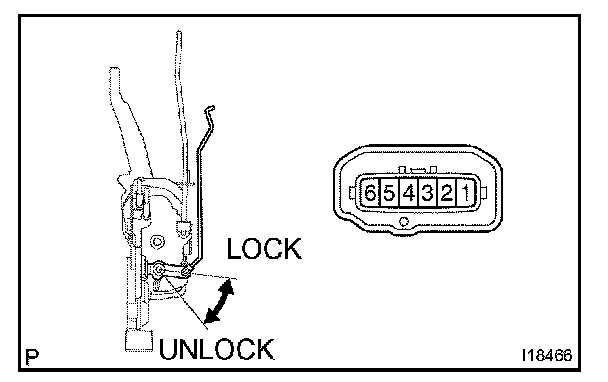

7. Passenger's door:
INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY
If the continuity is not as specified, replace the switch.
