Symptom Diagnostic Procedures

Wireless Door Lock ECU Circuit

CIRCUIT DESCRIPTION

The signal from the wireless door lock ECU is input to the passenger side J/B ECU through the RDA line. The RDA line is diagnosed by the passenger side J/B ECU.

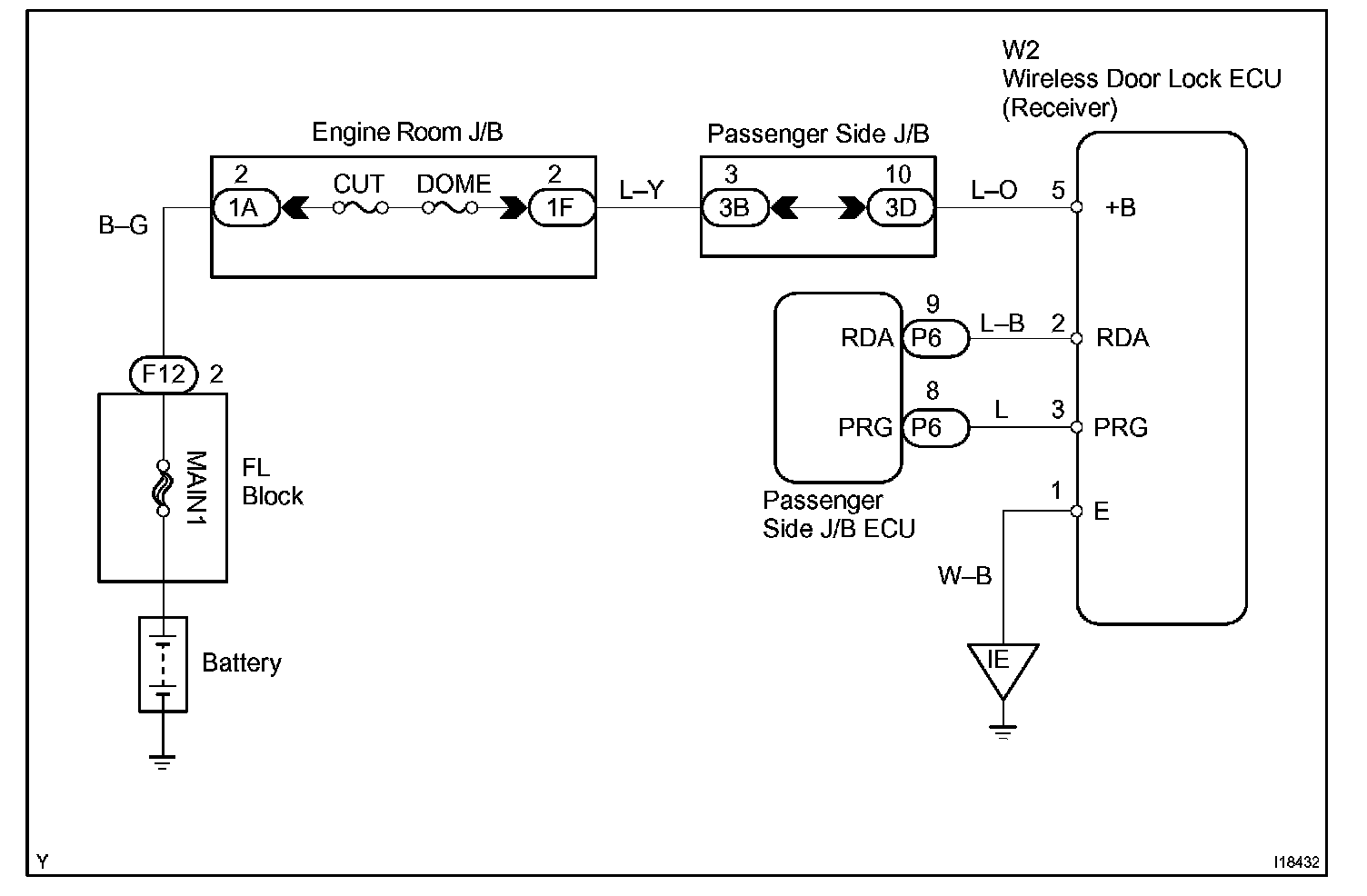

Wiring Diagram:

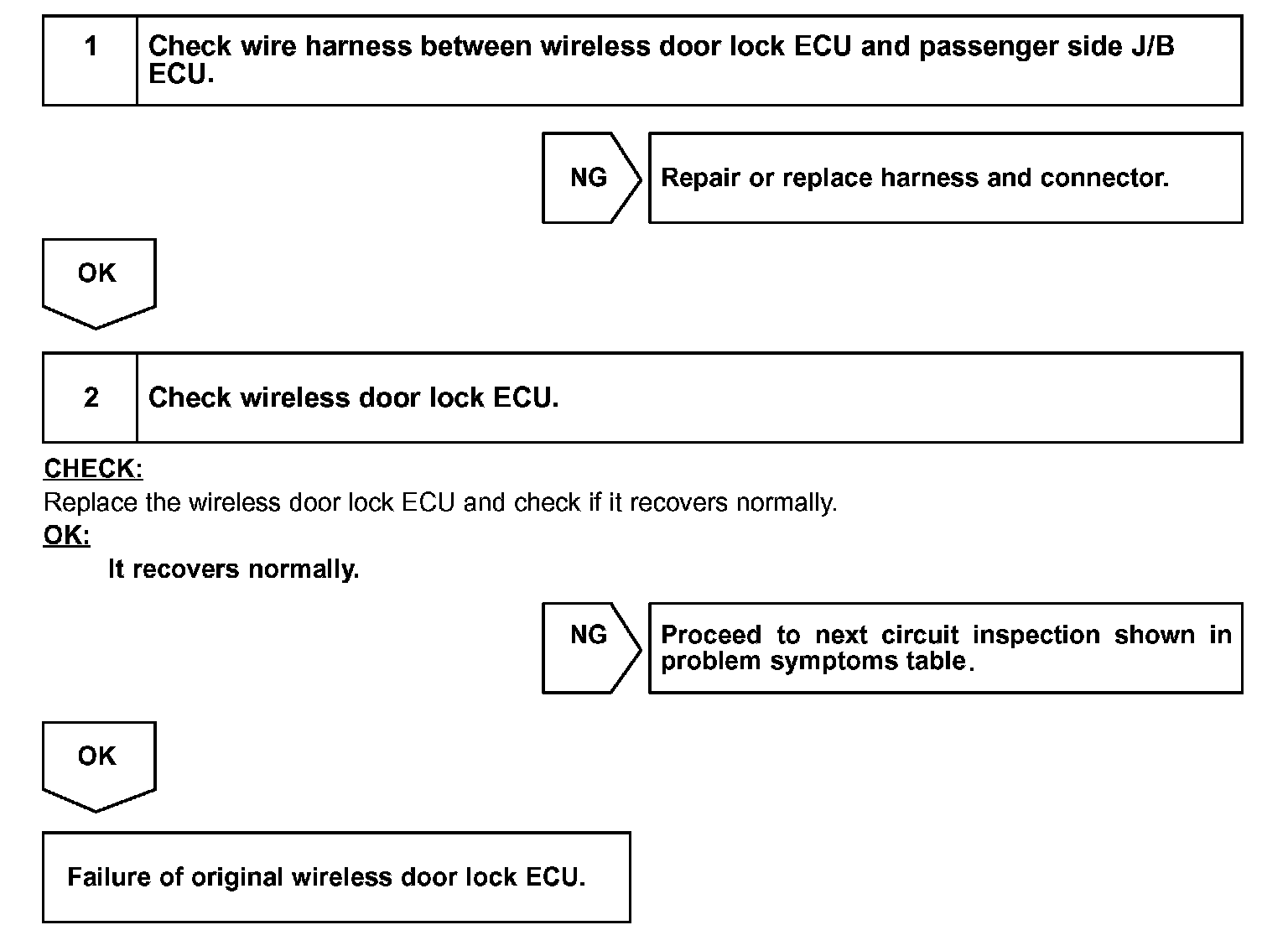

Step 1 - 2:

INSPECTION PROCEDURE
