Wireless Door Lock Receiver Circuit
Wireless Door Lock Receiver CircuitCIRCUIT DESCRIPTION
The signal from the transmitter will be input to the passenger side J/B ECU through the RDA line. The RDA line is diagnosed by the passenger side J/B ECU, so check the DTC as well in case of the failure of the wireless function.

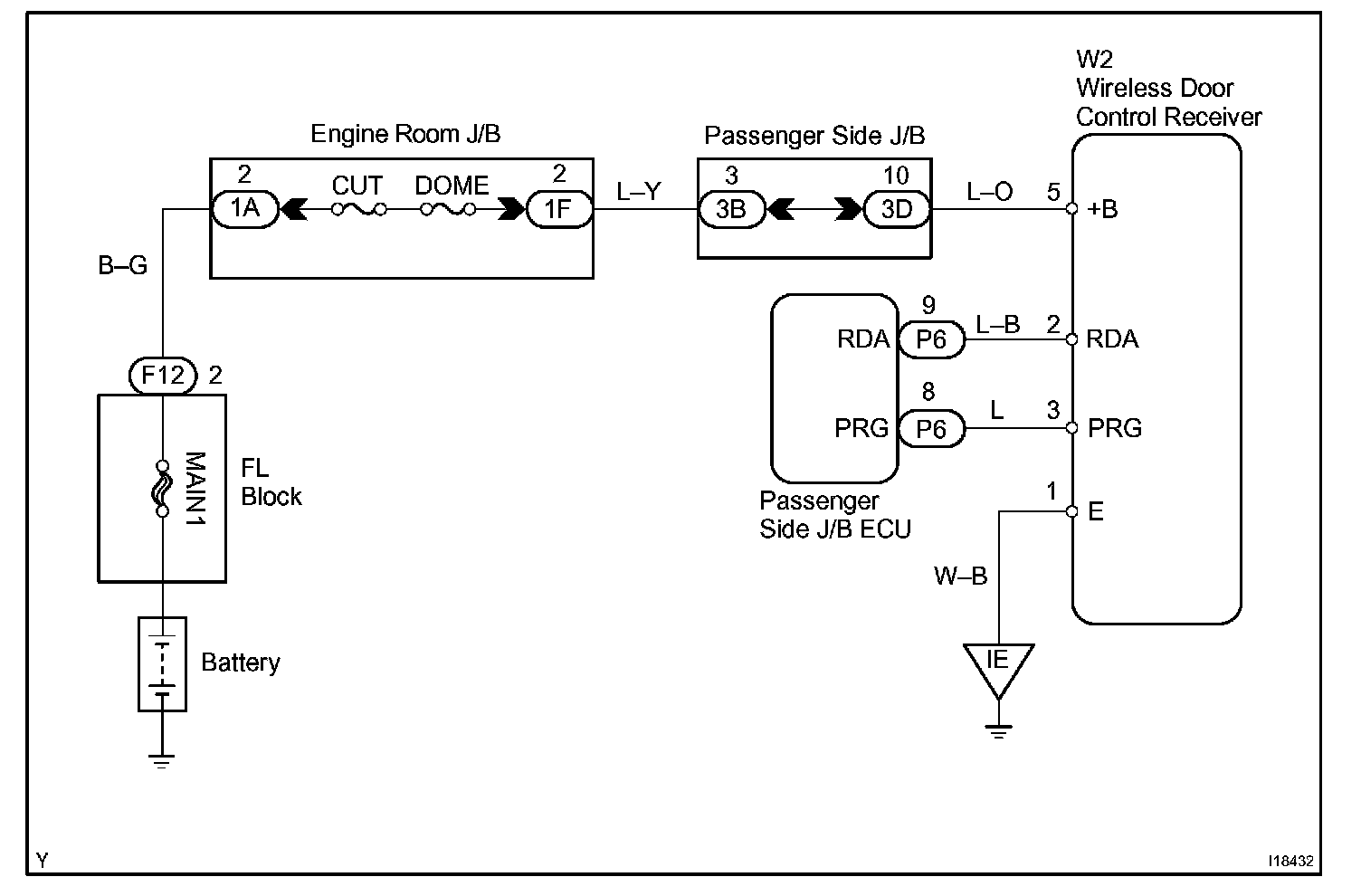

Wiring Diagram:

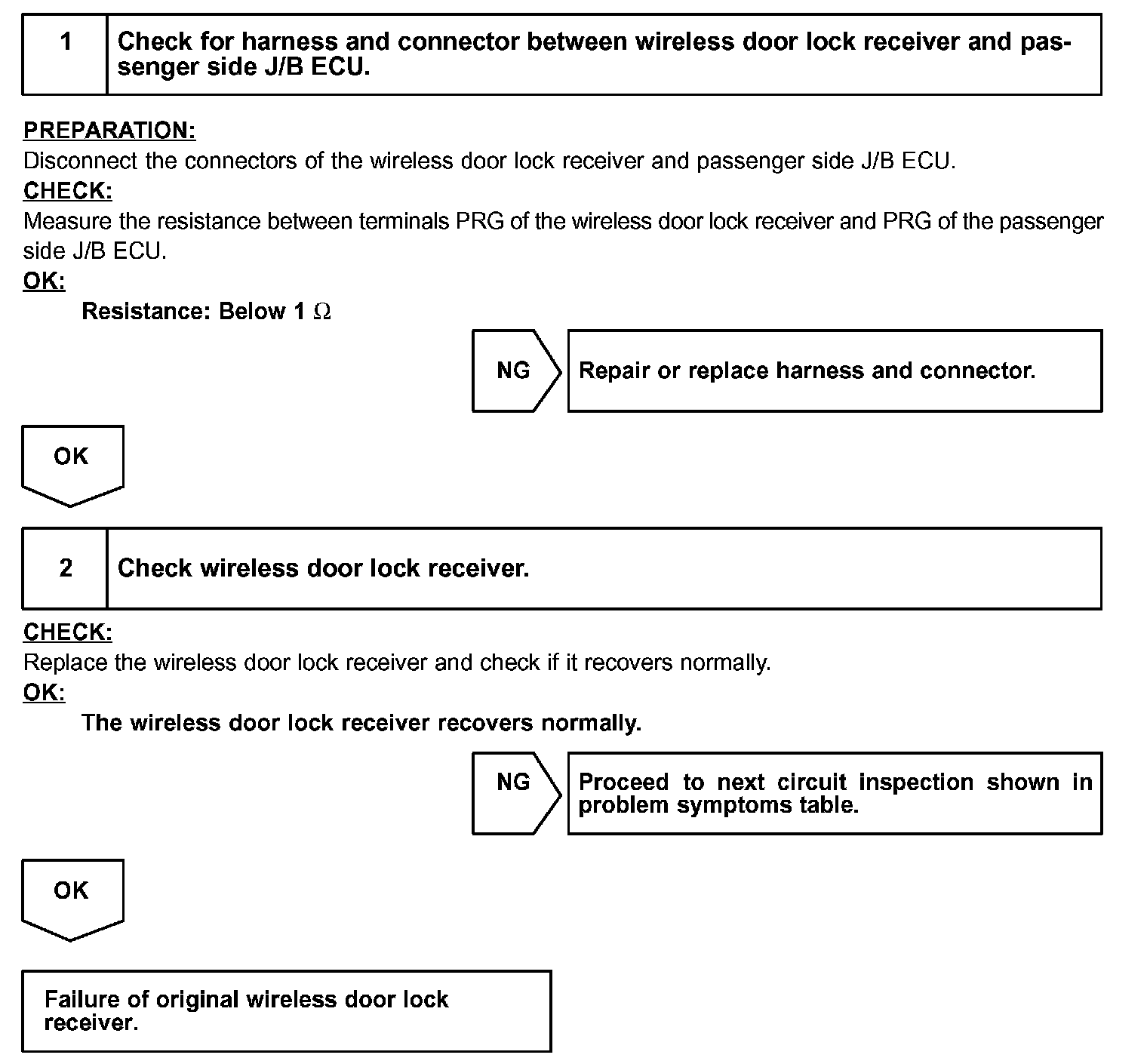

Step 1 - 2:
INSPECTION PROCEDURE
