Power Main Relay Circuit

Power Main Relay Circuit

CIRCUIT DESCRIPTION

Power main relay (Marking: POWER) turns ON by operating the power window switch.

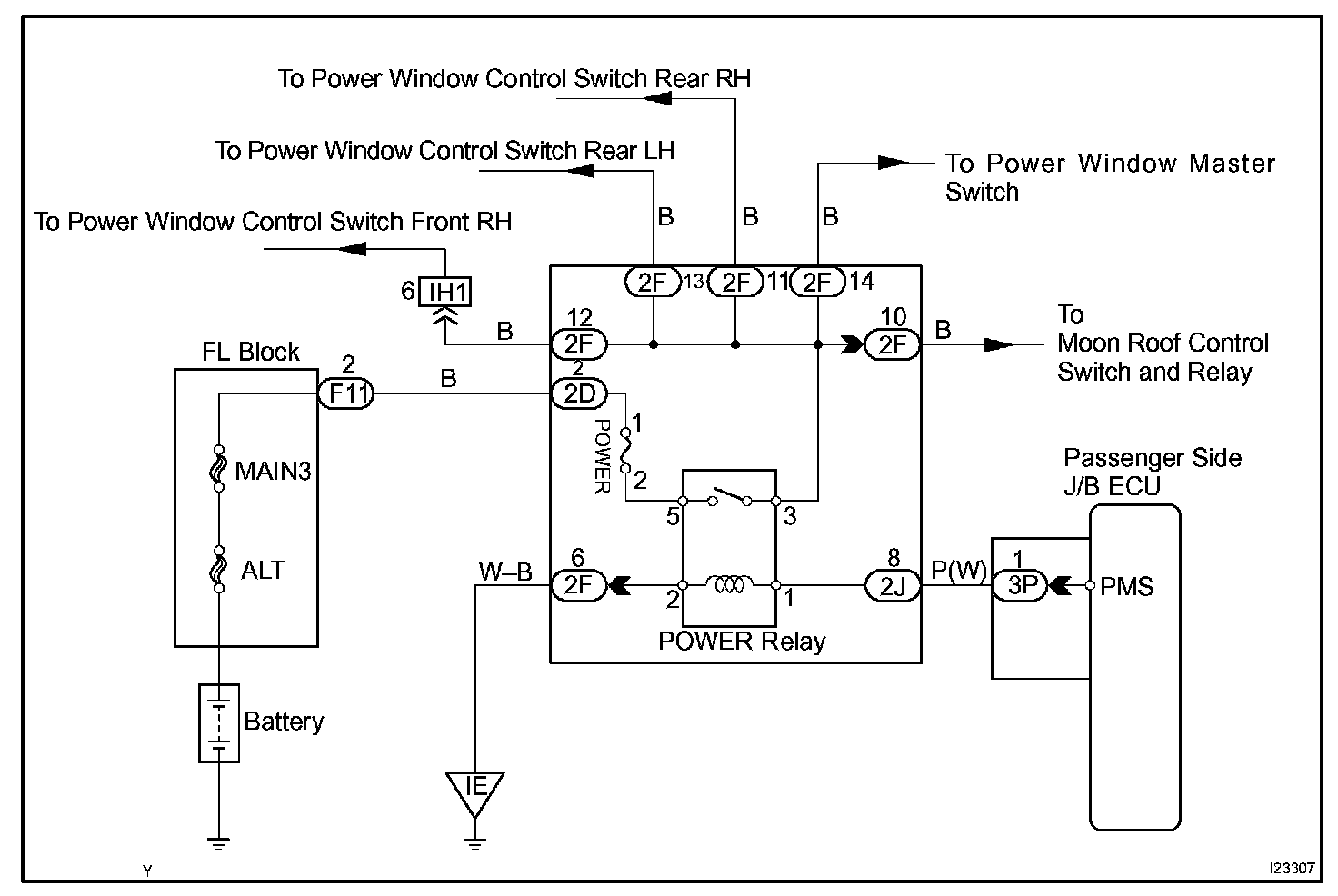

Wiring Diagram:






Step 1:




Step 2:




INSPECTION PROCEDURE
