Light Control Switch Circuit (w/ Daytime Running Light)

Light Control Switch Circuit (w/ Daytime Running Light)

CIRCUIT DESCRIPTION

This circuit detects the state of the light control switch.

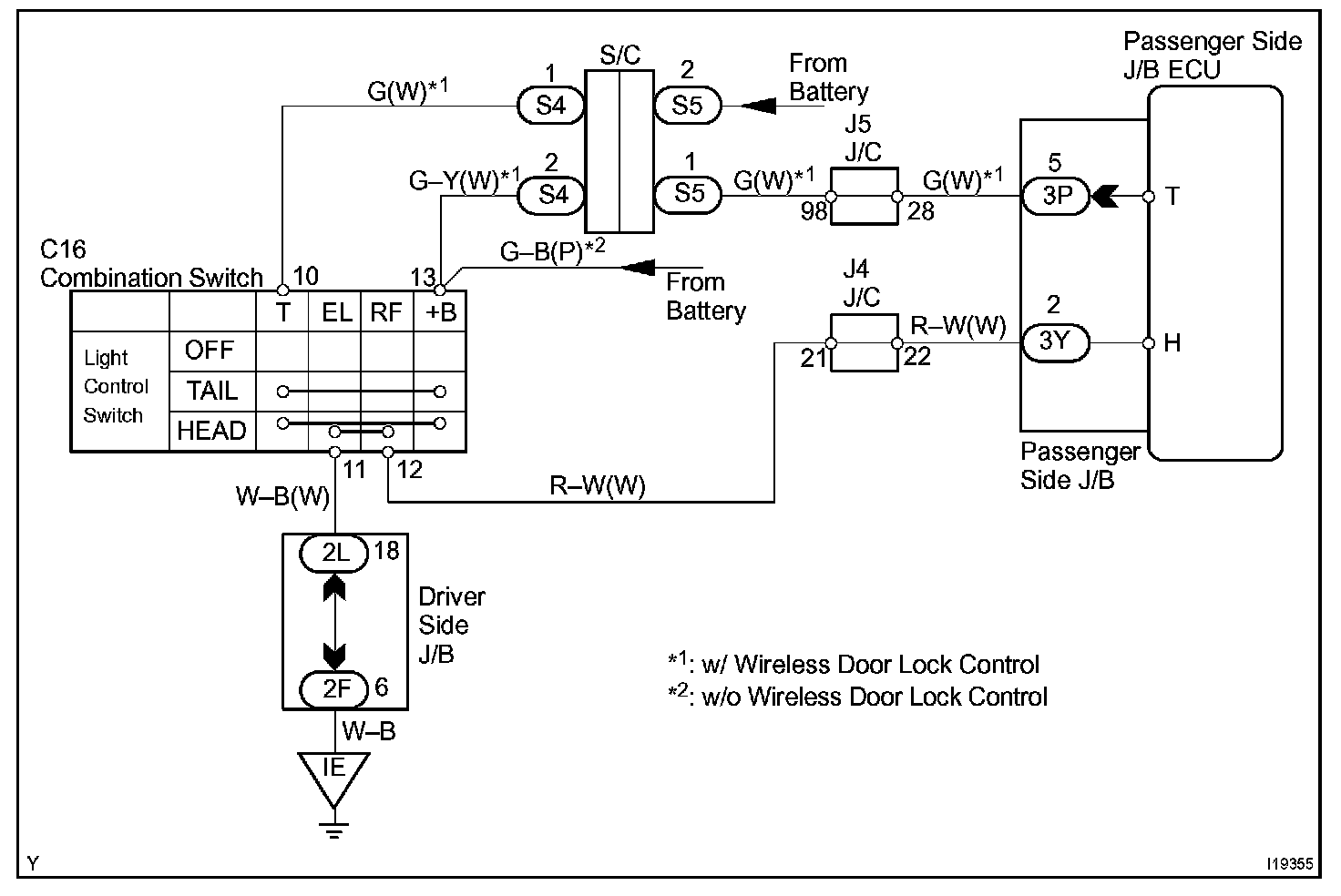

Wiring Diagram:

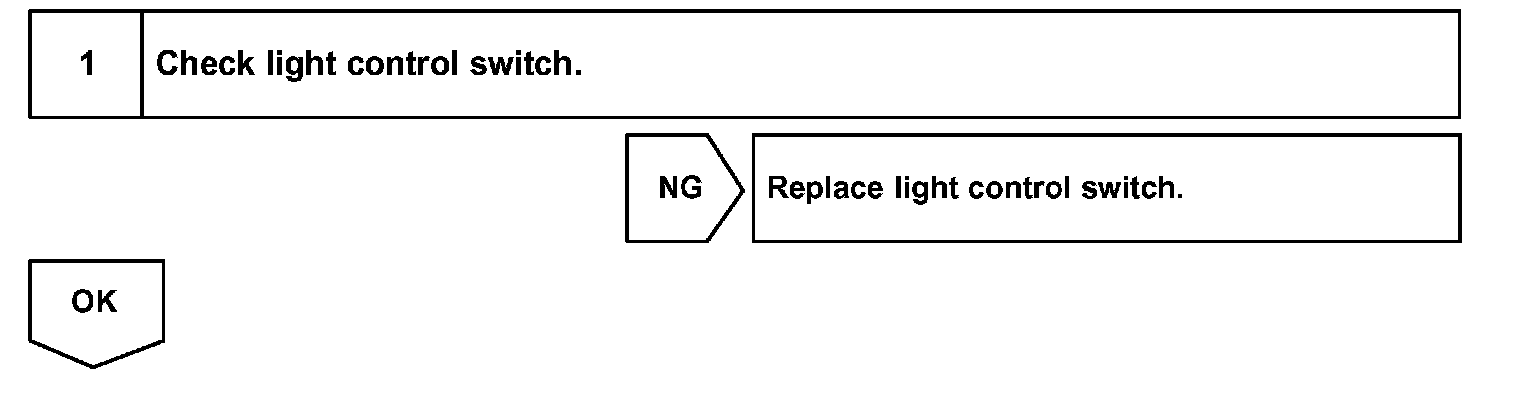

Step 1:

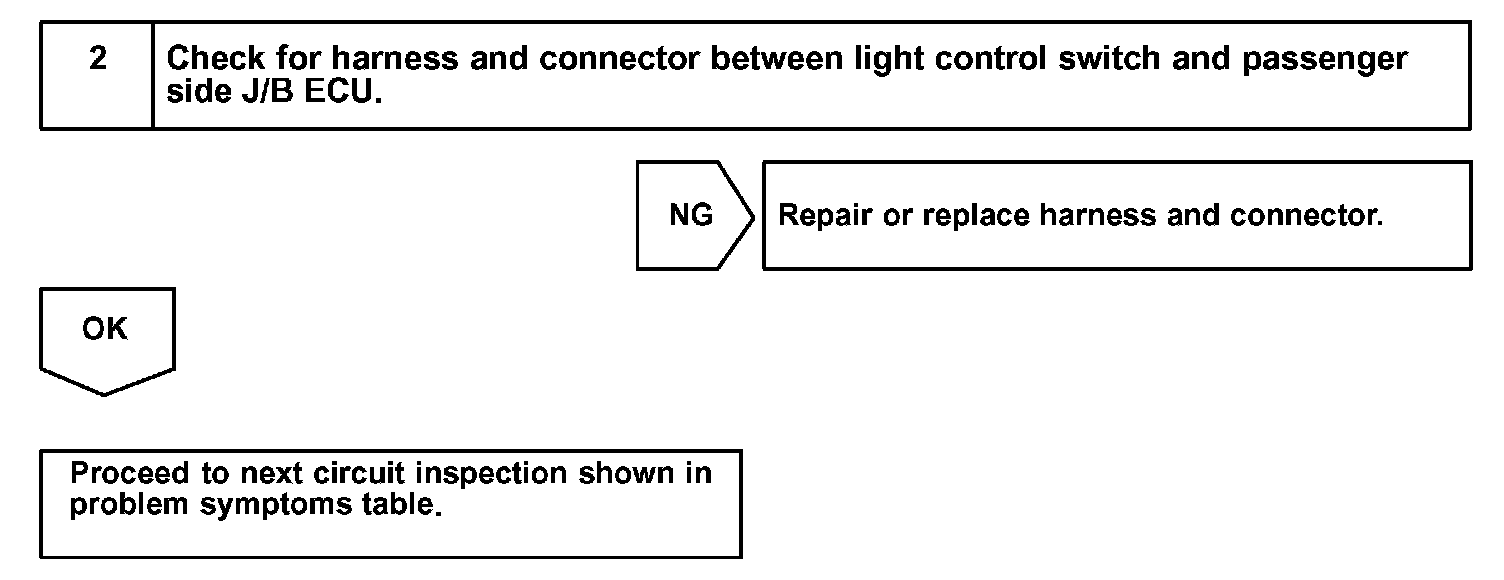

Step 2:

INSPECTION PROCEDURE
