Illumination Circuit
Illumination Circuit
CIRCUIT DESCRIPTION
Receiving the courtesy signal from the passenger side J/B ECU will turn on the interior light ignition light and courtesy light ON.

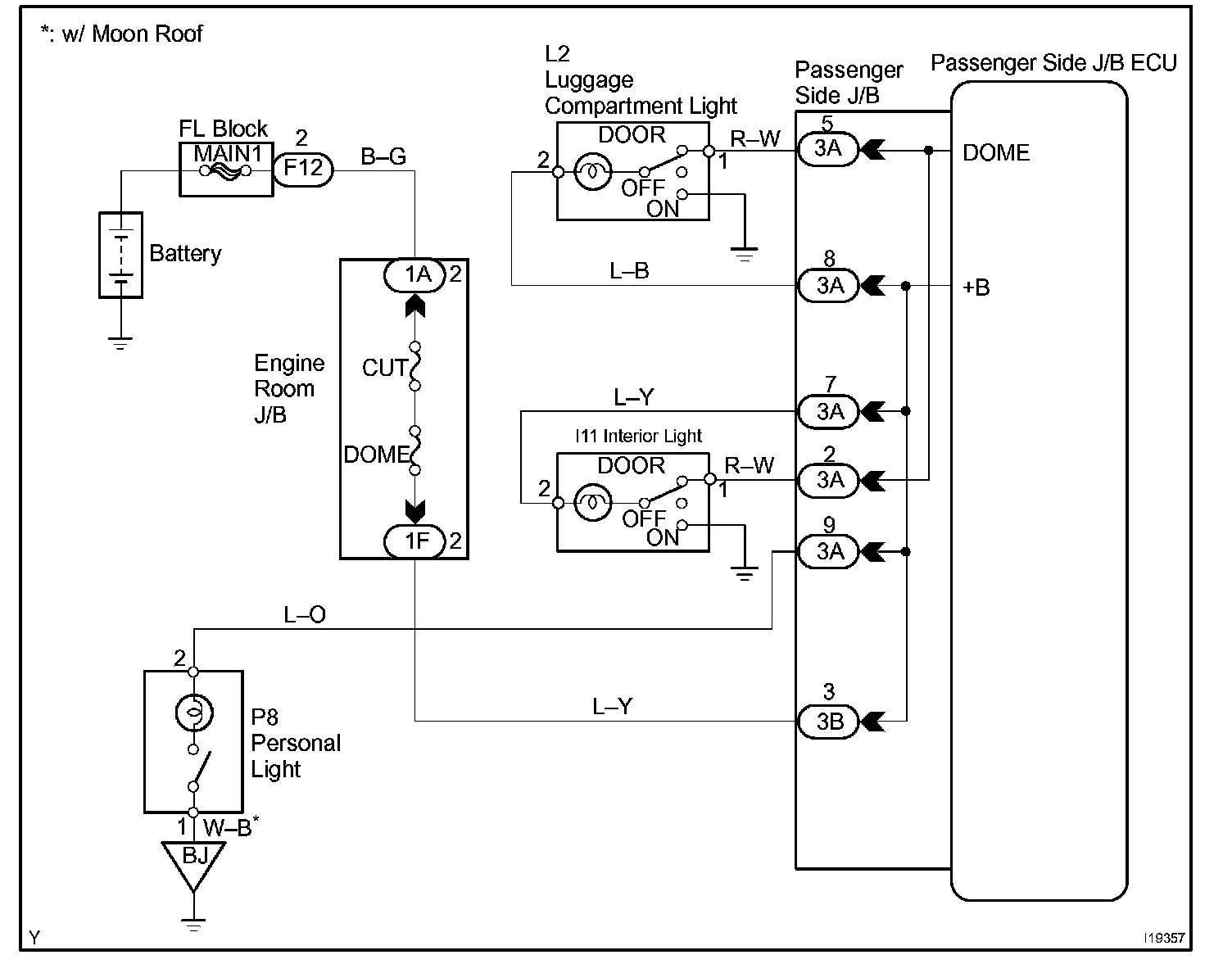

Wiring Diagram:

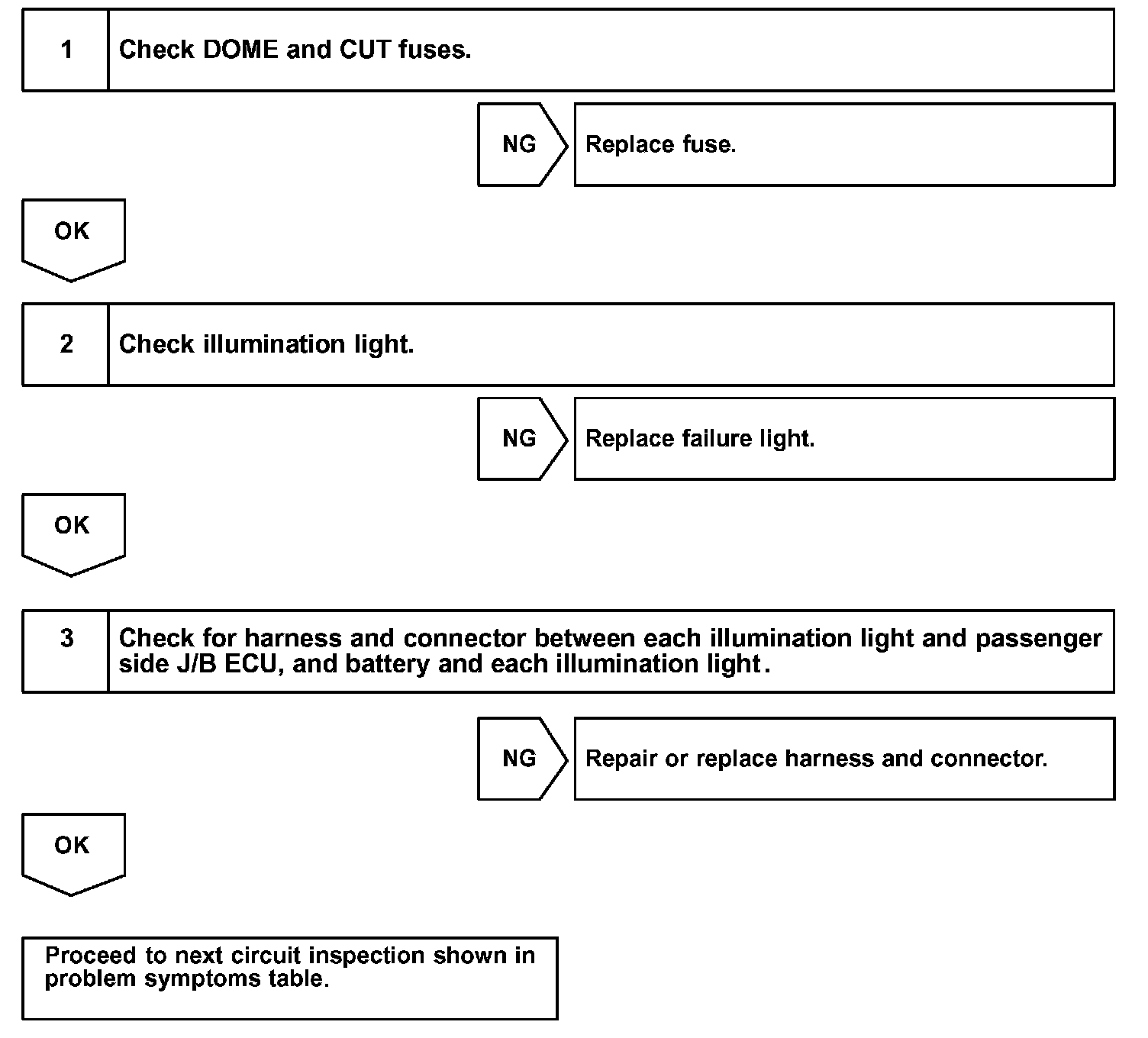

Step 1 - 3:
INSPECTION PROCEDURE
