Horn Circuit
Horn CircuitCIRCUIT DESCRIPTION
The horns are connected to the passenger side J/B ECU. The horns are activated by the passenger side J/B ECU when the panic button of the wireless door lock system is pressed.

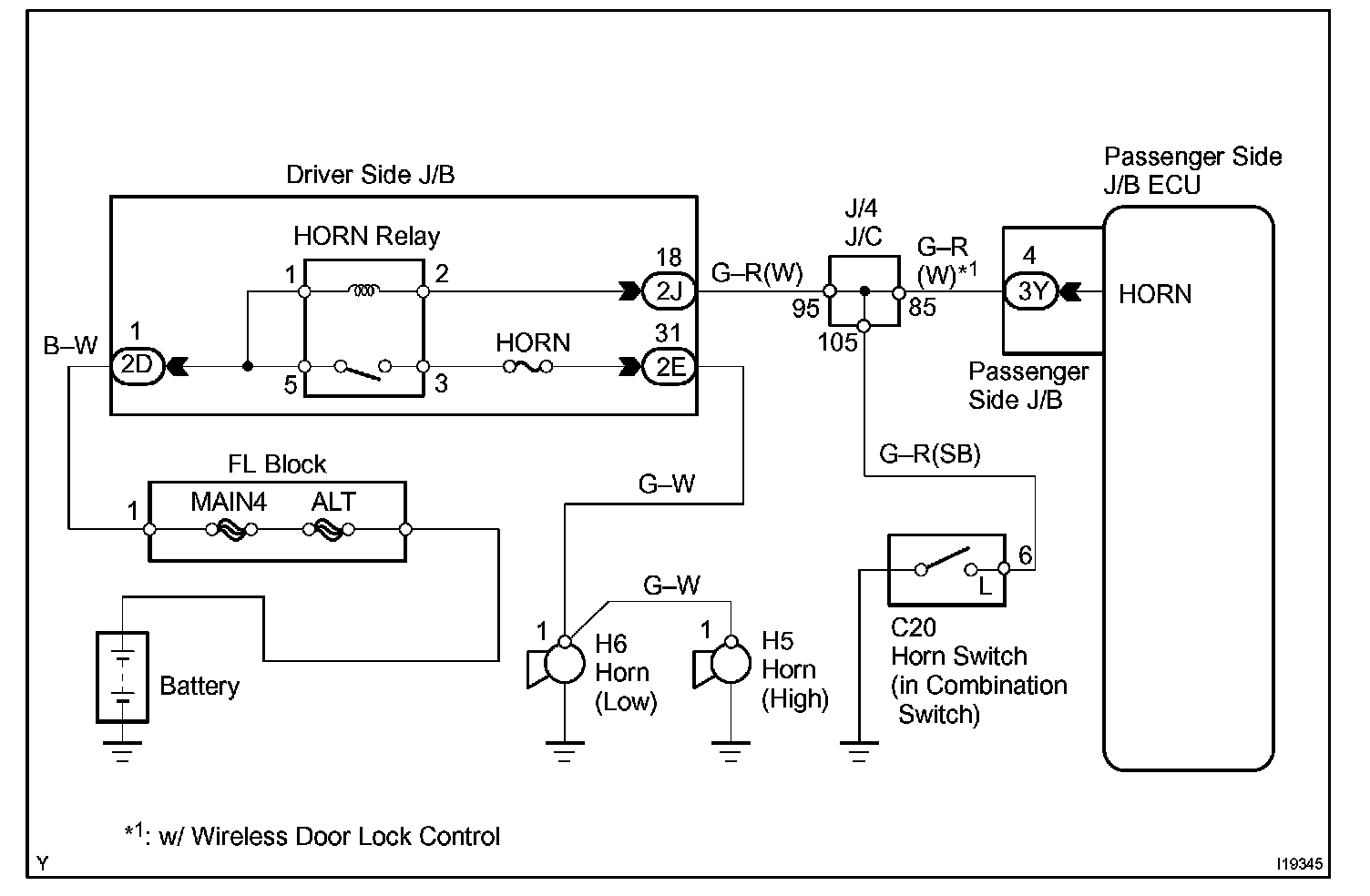

Wiring Diagram:

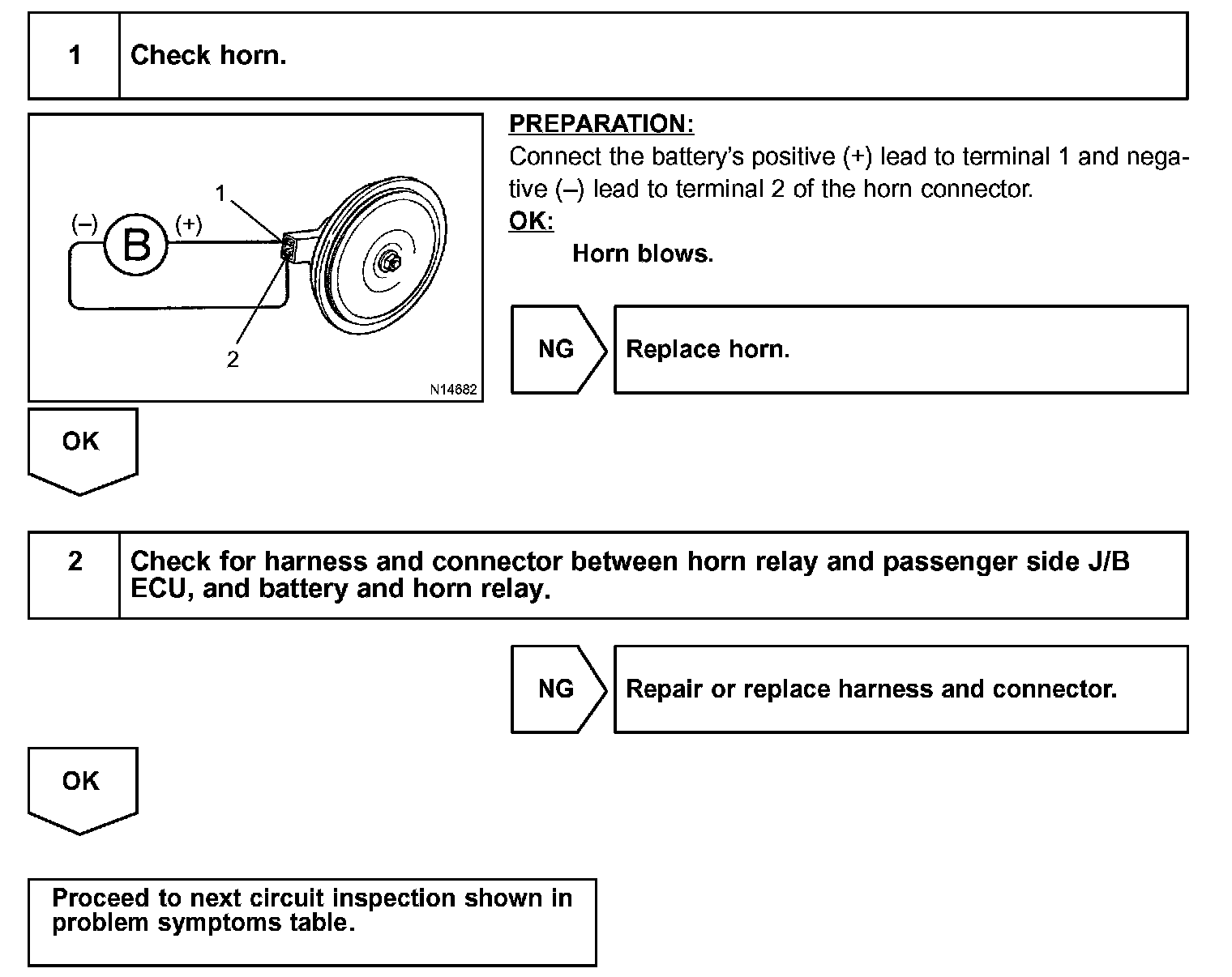

Step 1 - 2:
INSPECTION PROCEDURE
