Headlight Dimmer Switch Circuit

Headlight Dimmer Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the state of the headlight dimmer switch.

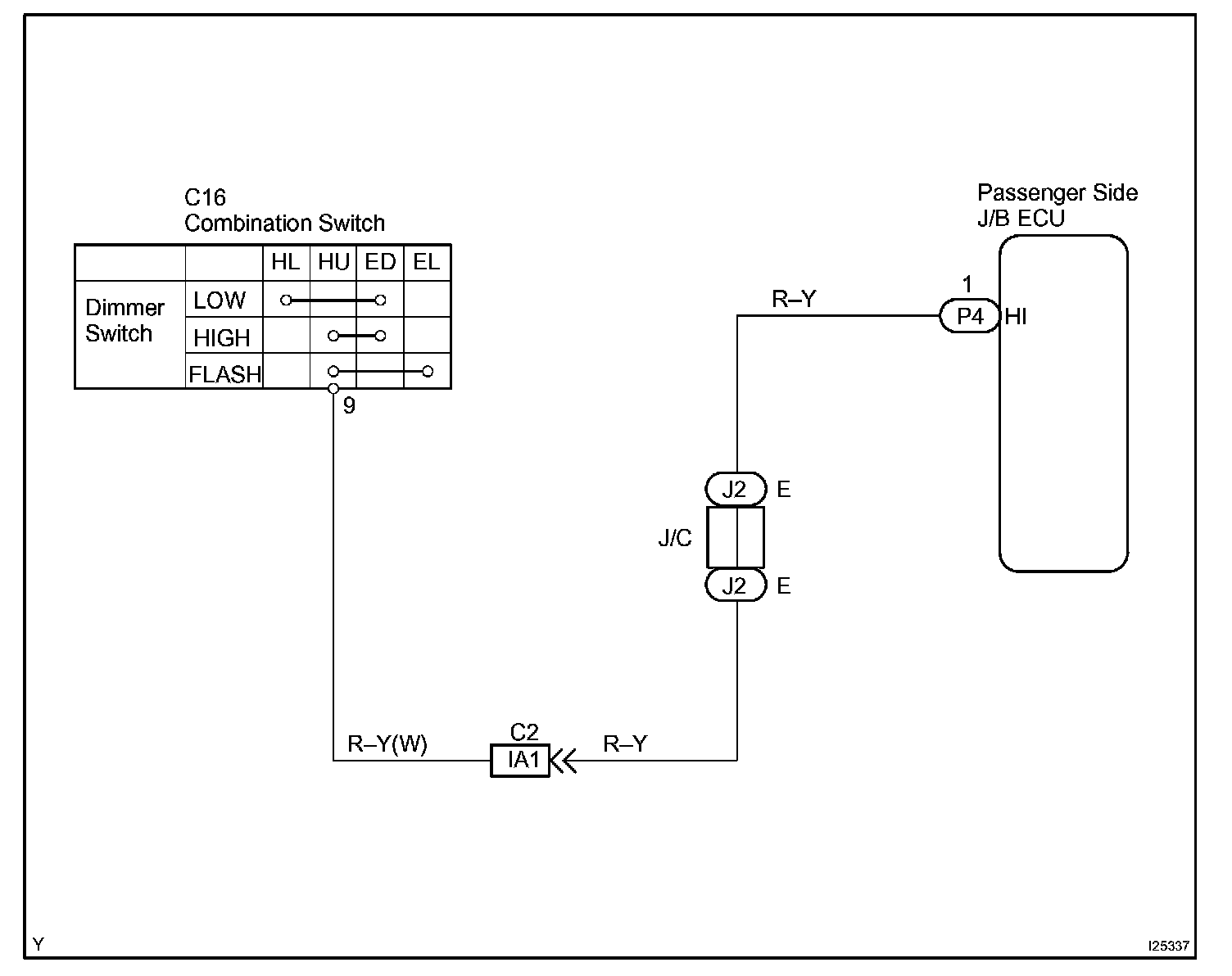

Wiring Diagram:






Step 1:

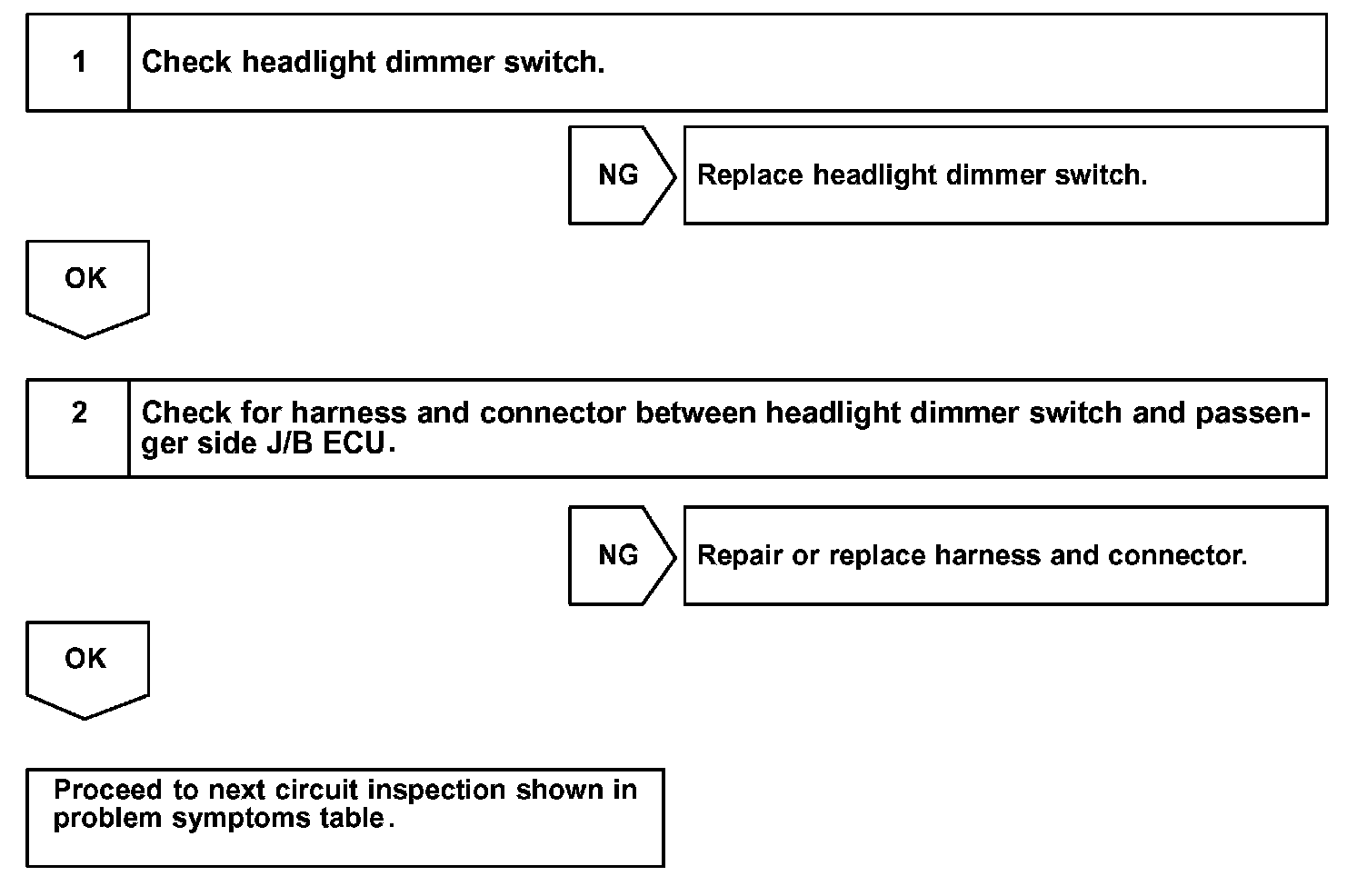

INSPECTION PROCEDURE
