Front Fog Light Relay Circuit
Front Fog Light Relay Circuit
Front Fog Light Relay Circuit

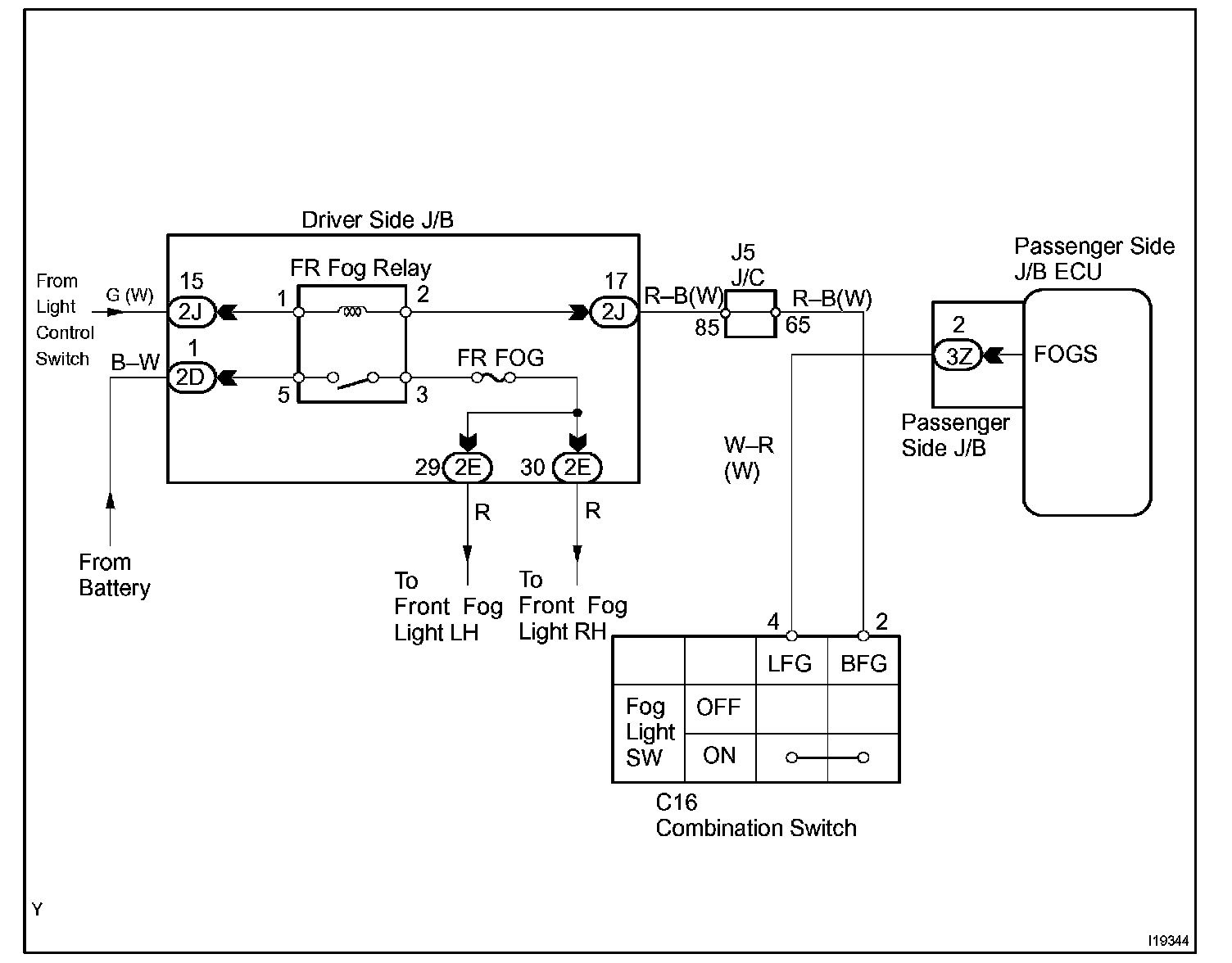

Wiring Diagram:
Step 1:

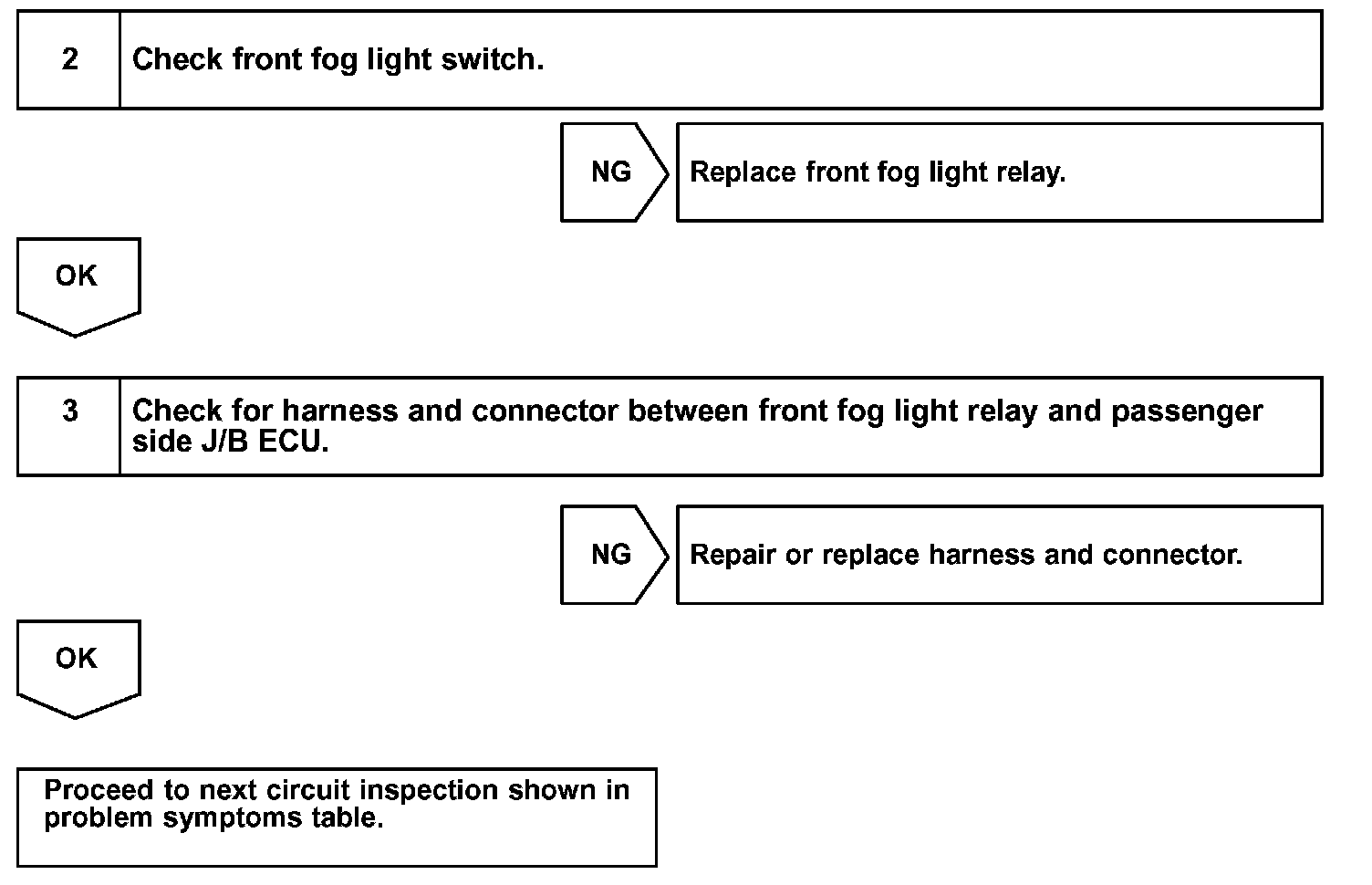

Step 2 - 3:
INSPECTION PROCEDURE
