Door Key Lock and Unlock Switch Circuit
Door Key Lock and Unlock Switch CircuitCIRCUIT DESCRIPTION
The door key lock and unlock switch is built in the door key cylinder. When the key is turned to the lock position, terminals 4 (LH) and 3 (RH) of the switch are grounded. When the key is turned to the unlock position, terminals 3 (LH) and 4 (RH) of the switch are grounded.

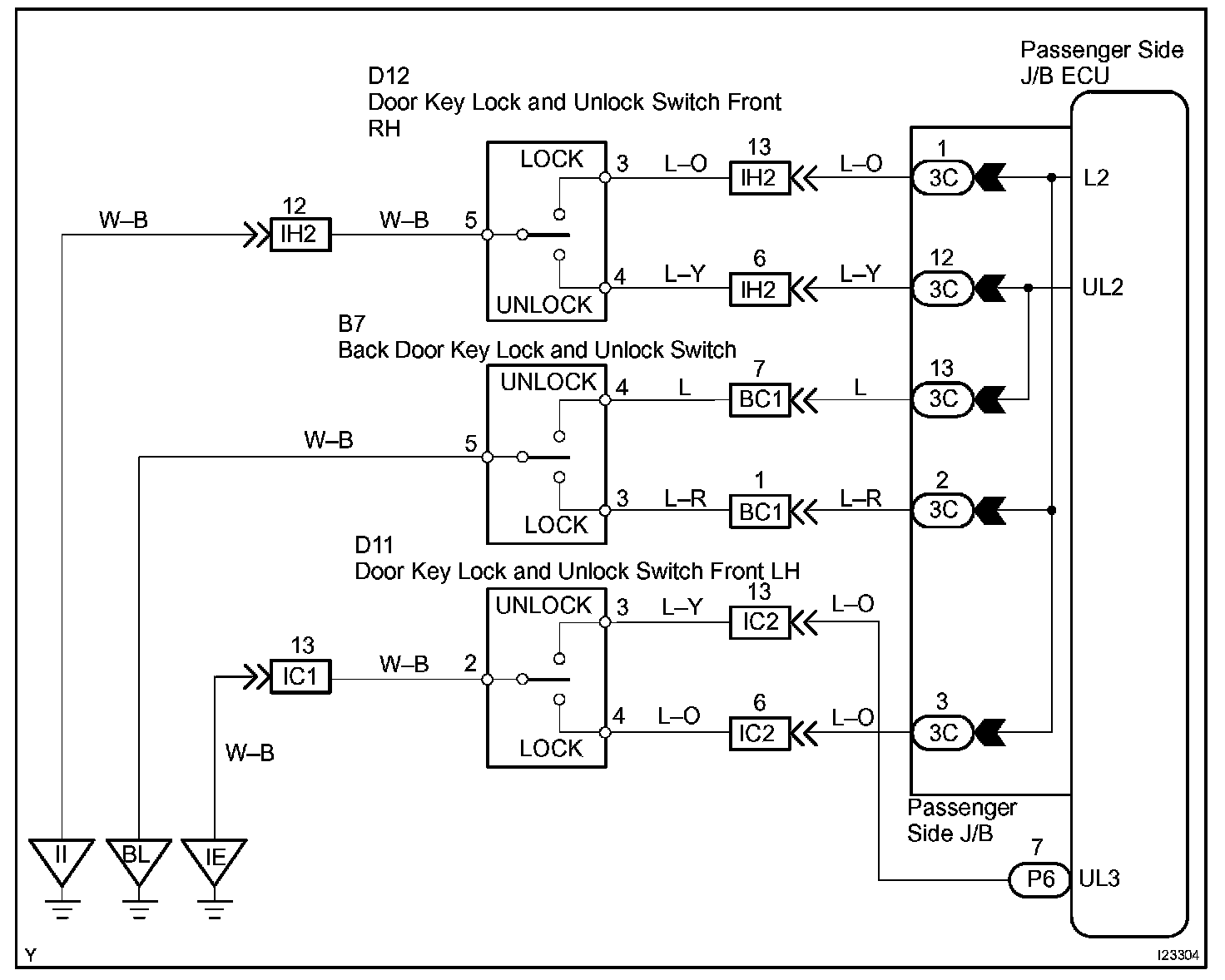

Wiring Diagram:

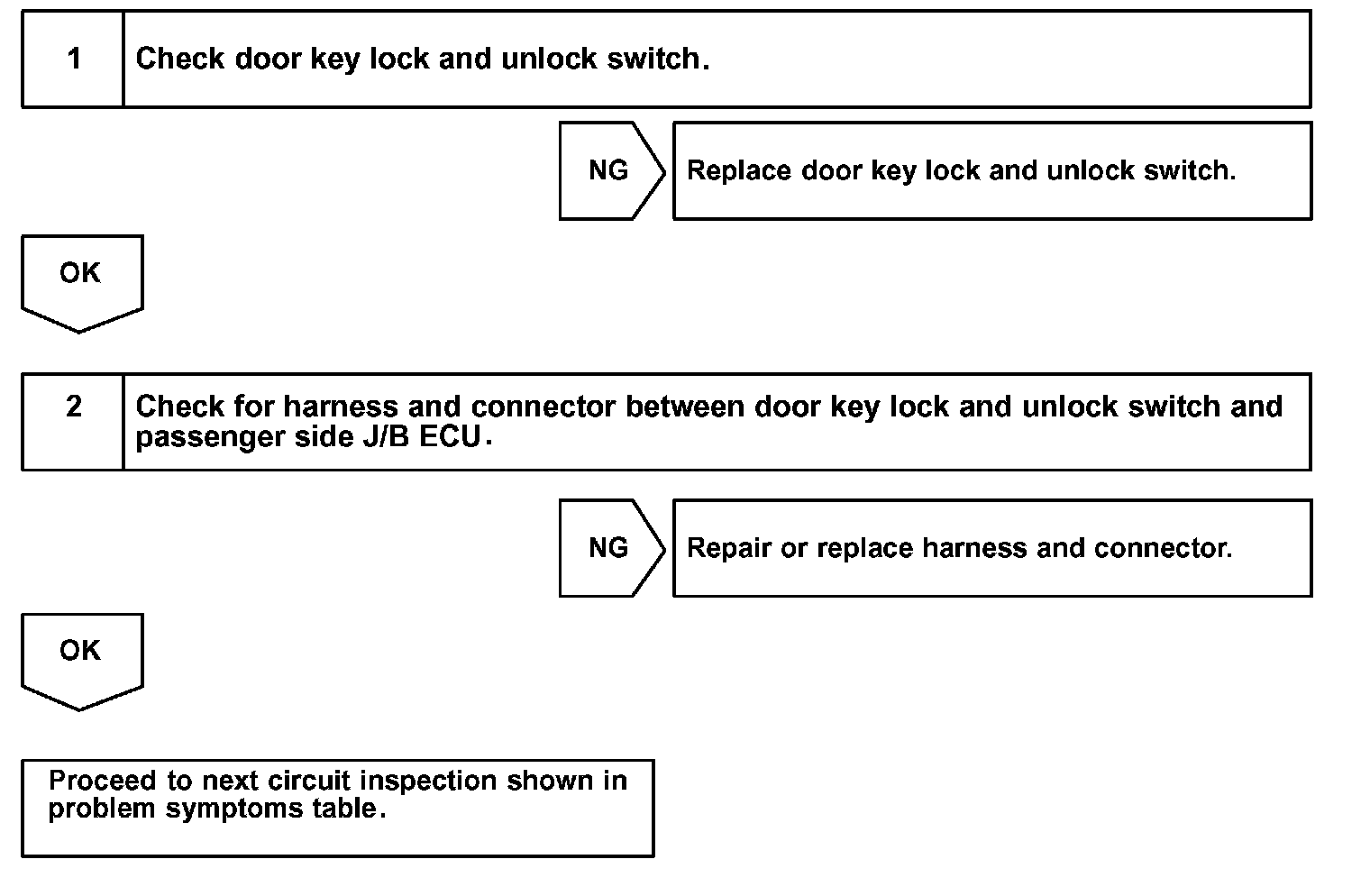

Step 1 - 2:
INSPECTION PROCEDURE
