Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

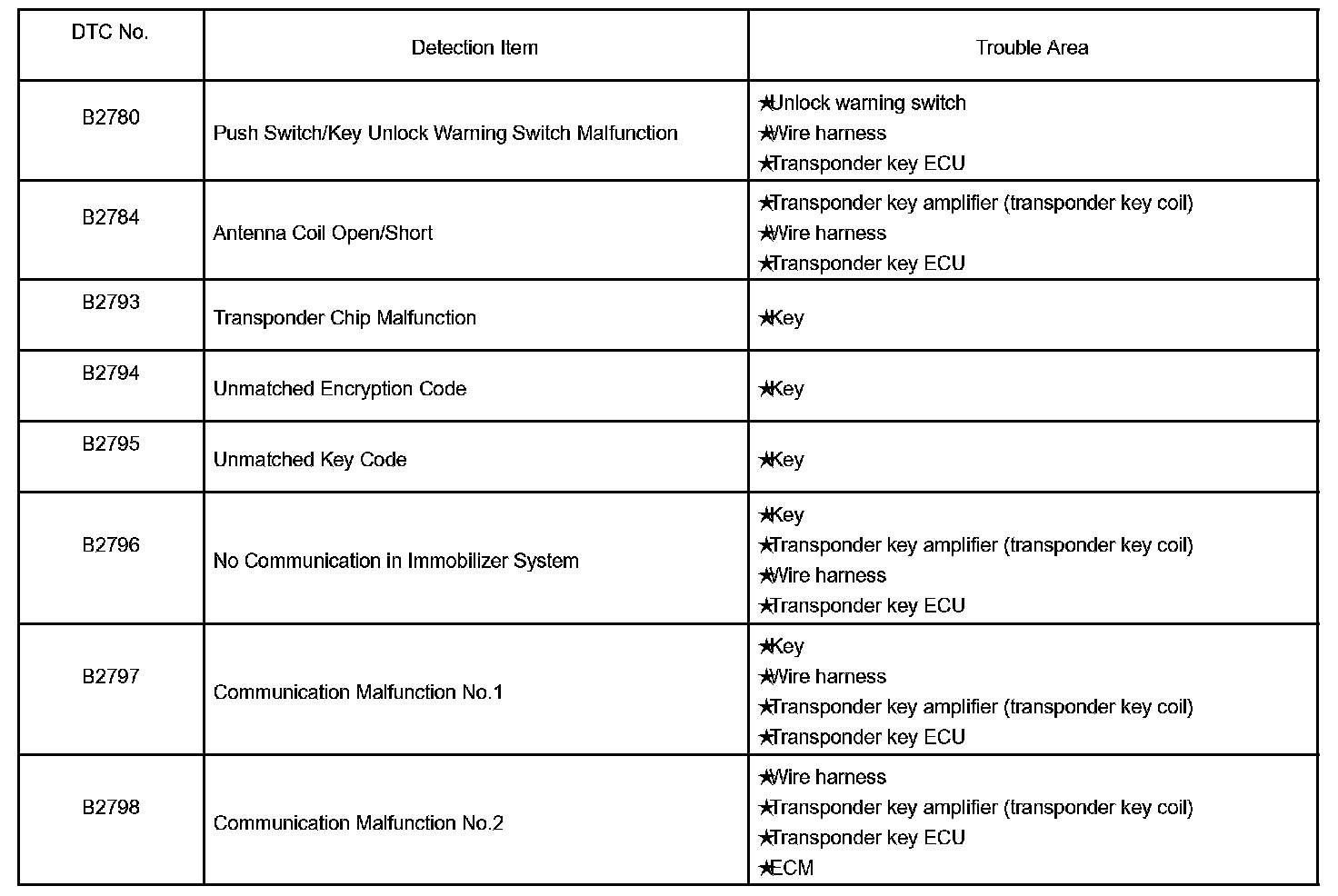

B2780 - B2798:

TRANSPONDER KEY ECU DTC CHART

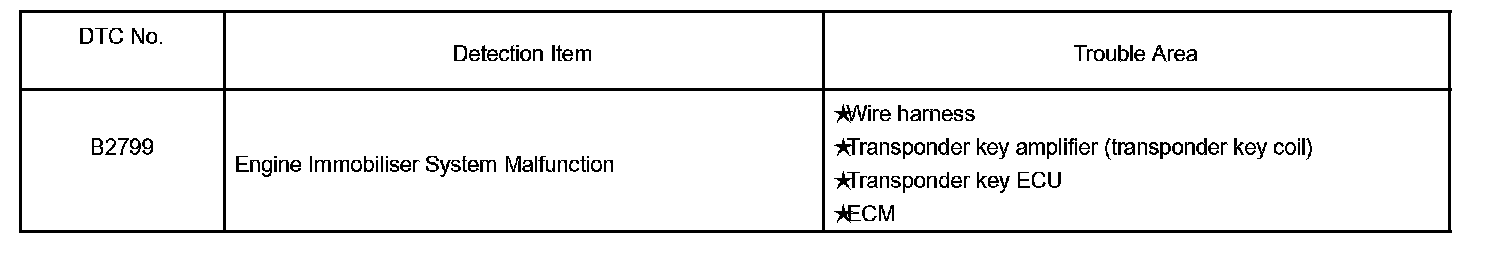

B2799:

ECM DTC CHART

NOTE: The DTC for the immobilizer system is specified. If other codes are output, check the DTC chart of the engine control system.
