Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

P0500 - P0748:

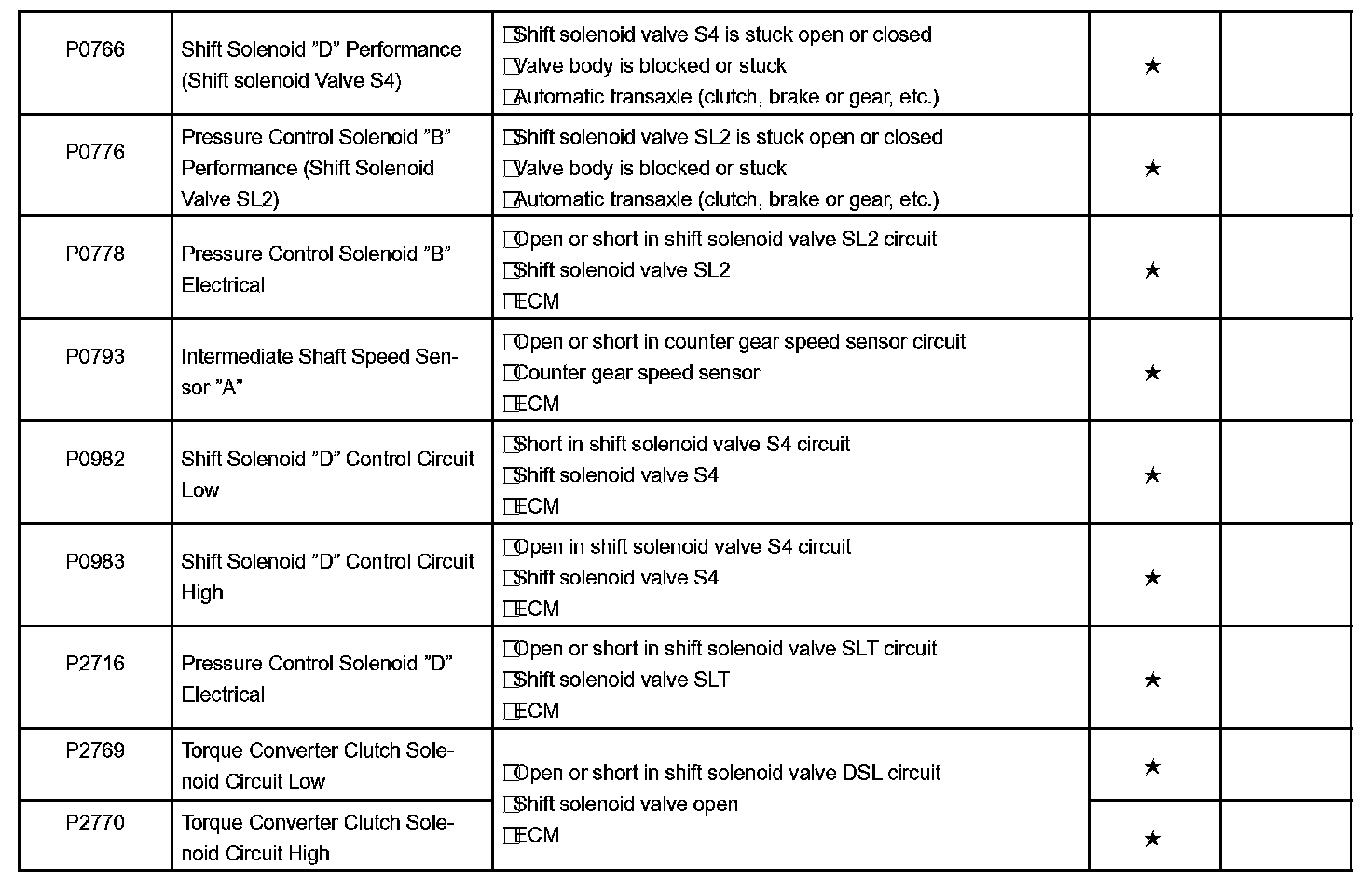

P0766 - P2770:

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table and proceed to the troubleshooting given.

HINT:
- *1:*...MIL (Malfunction indicator lamp) illuminates.
- *2:" " means the ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
- *3:Except vehicles for Mexico.
- This DTC may be output when the clutch, brake, and gear components, etc. inside the automatic transaxle are damaged.
