Wiper Switch: Testing and Inspection

INSPECT FRONT WIPER AND WASHER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







INSPECT REAR WIPER AND WASHER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.



INSPECT FRONT WIPER INTERMITTENT OPERATION




a. Turn the wiper switch to INT position.
b. Turn the intermittent time control switch to FAST position.

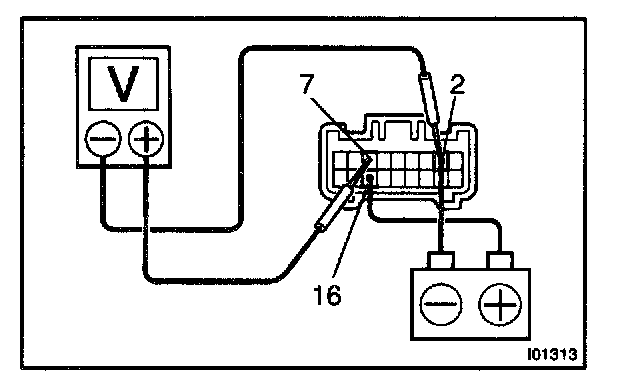

c. Connect the positive (+) lead from the battery to terminal 16 and the negative (-) lead to terminal 2.
d. Connect the positive (+) lead from the voltmeter to terminal 7 and the negative (-) lead to terminal 2, check that the meter needle indicates battery voltage.

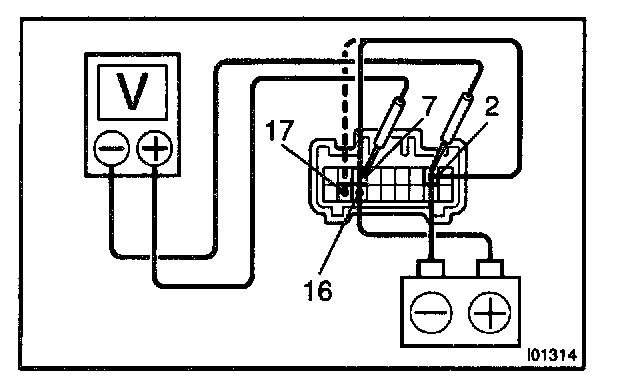

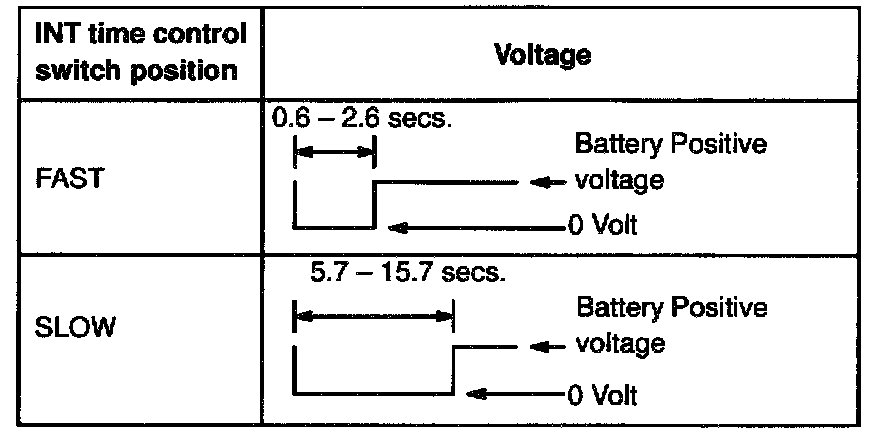

e. After connecting terminal 16 to terminal 17, connect to terminal 2 to terminal 17, check the voltage rises from 0 volts to battery voltage within the times, as shown in the table.
If operation is not as specified, replace the wiper and washer switch.
