Wiper Motor: Testing and Inspection

Low speed:
INSPECT FRONT WIPER MOTOR OPERATION

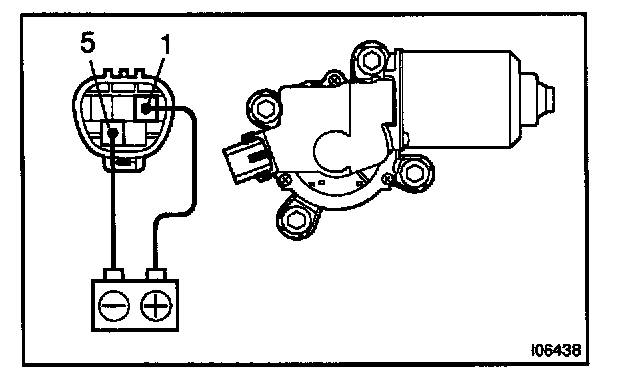

Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 5, check that the motor operates at low speed.
If operation is not as specified, replace the motor.




High speed:
INSPECT FRONT WIPER MOTOR OPERATION

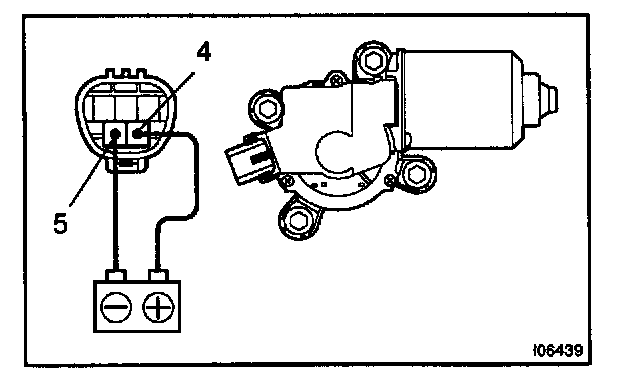

Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5, check that the motor operates at high speed.
If operation is not as specified, replace the motor.




Stopping at stop position:
INSPECT FRONT WIPER MOTOR OPERATION

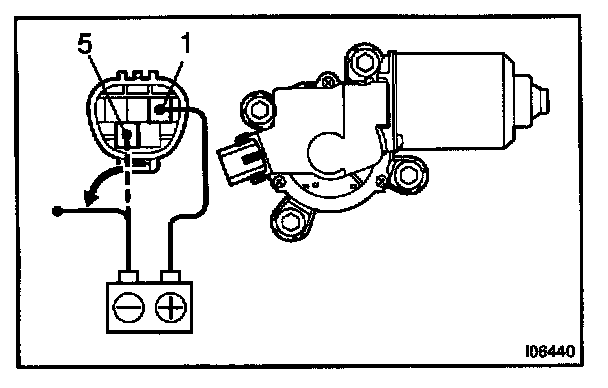

Operate the motor at low speed and stop the motor operation anywhere except at the stop position by disconnecting positive (+) lead from terminal 1.




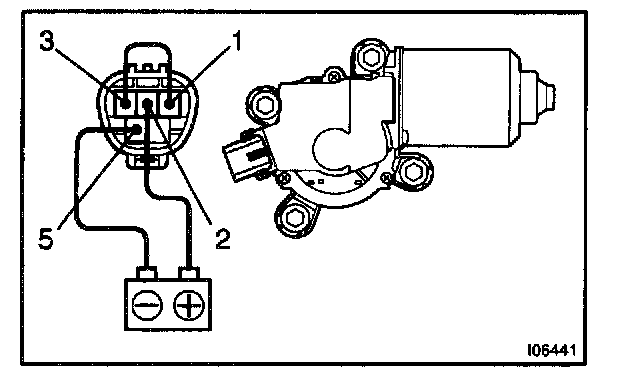

b. Connect terminals 1 and 3.
c. Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 5, check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.




Low speed:
INSPECT REAR WIPER MOTOR OPERATION

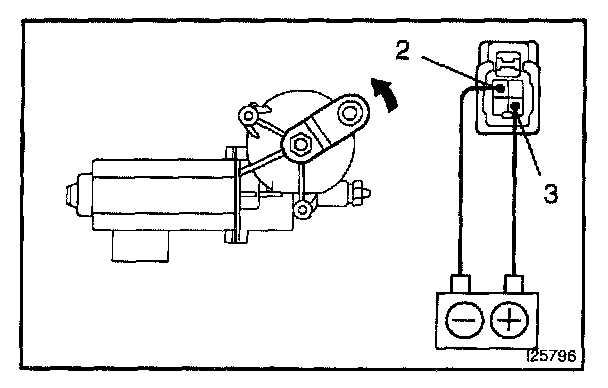

Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 2, check that the motor operates at low speed.
If operation is not as specified, replace the motor.




Stopping at stop position:
INSPECT REAR WIPER MOTOR OPERATION

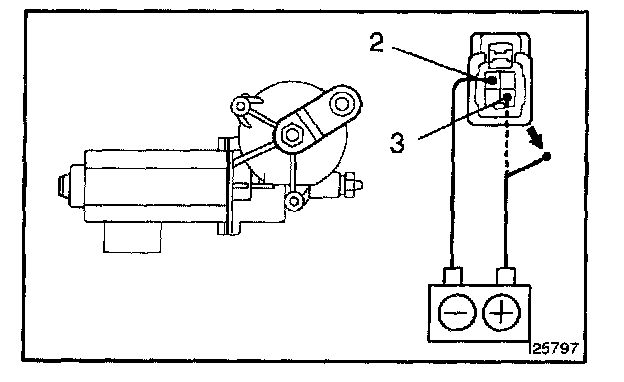

a. Operate the motor at low speed and stop the motor operation anywhere except at the stop position by disconnecting positive (+) lead from terminal 3.

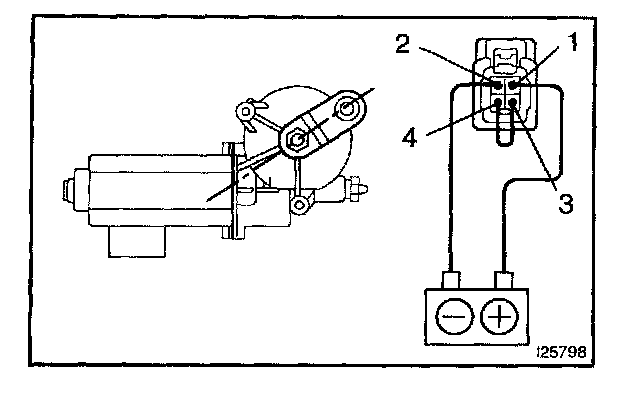

b. Connect terminals 3 and 4.
c. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.

NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.

If operation is not as specified, replace the motor.
