Windshield Washer Motor: Testing and Inspection

INSPECT FRONT WASHER MOTOR OPERATION

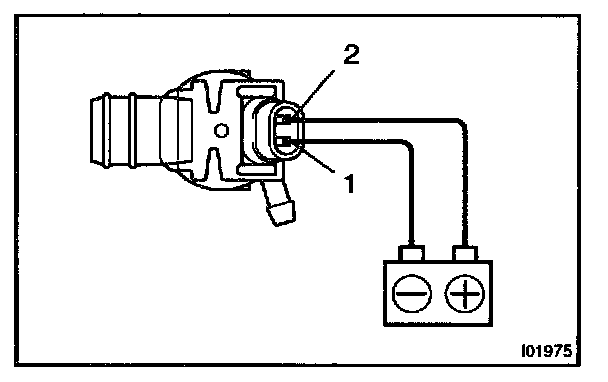

Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the motor operates.




INSPECT REAR WASHER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the motor operates.
