Front Wiper and Washer
REMOVAL1. REMOVE WIPER ARMS
a. Remove the 2 caps and 2 nuts.
b. Remove the 2 wiper arms.
2. REMOVE HOOD TO COWL TOP SEAL
3. REMOVE COWL TOP VENTILATOR LOUVERS
a. Remove the cowl top ventilator louver RH.
b. Remove the cowl top ventilator louver LH.

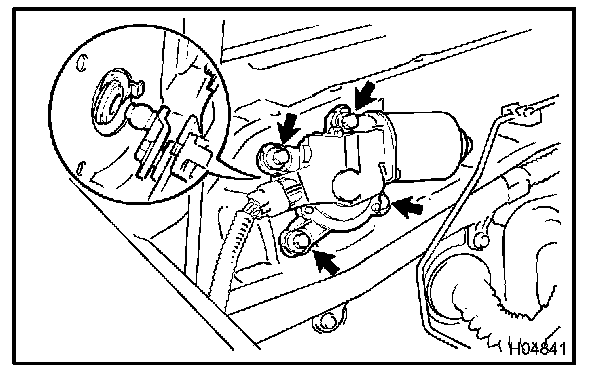

4. REMOVE WIPER MOTOR
a. Disconnect the connector, unfasten the 4 bolts.
b. Disconnect the wiper motor from the wiper link, then remove the wiper motor.
5. REMOVE WIPER LINK
a. Loosen the 6 bolts.
b. Remove the wiper link through the service hole.

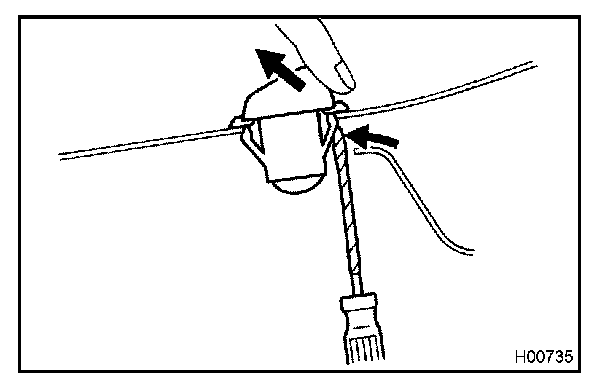

6. REMOVE WASHER NOZZLE
a. Disconnect the washer hose.
b. Using a screwdriver, remove the washer nozzle.
HINT: Tape the screwdriver tip before use.
c. Employ the same manner described above to the other side.
INSTALLATION
1. INSTALL WASHER NOZZLES
2. INSTALL WIPER LINK
Install the wiper link through the service hole, then torque the 6 bolts.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

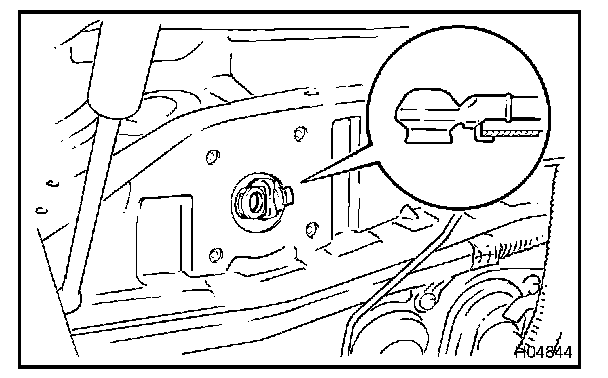

HINT: When installing the wiper link, connect the claw of wiper link to the panel.
3. INSTALL WIPER MOTOR
a. Connect the wiper motor to wiper link.
b. Torque the 4 bolts.
c. Connect the connector.
4. INSTALL COWL TOP VENTILATOR LOUVERS
a. Install the cowl top ventilator louver LH.
b. Install the cowl top ventilator louver RH.
5. INSTALL HOOD TO COWL TOP SEAL
6. INSTALL WIPER ARMS
a. Operate the wipers once and turn the wiper switch OFF.
b. Install the wiper arms and tighten nuts by hand.

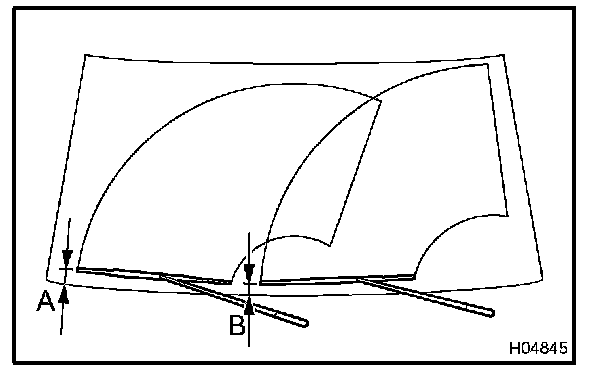

c. Adjust the installation position of the wiper arms to the positions shown in the illustration.
A: Approx. 40 mm (1.57 in.)
B: Approx. 16 - 26 mm (0.63 - 1.02 in.)
d. Torque the nuts.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
e. Install the wiper arm caps.
