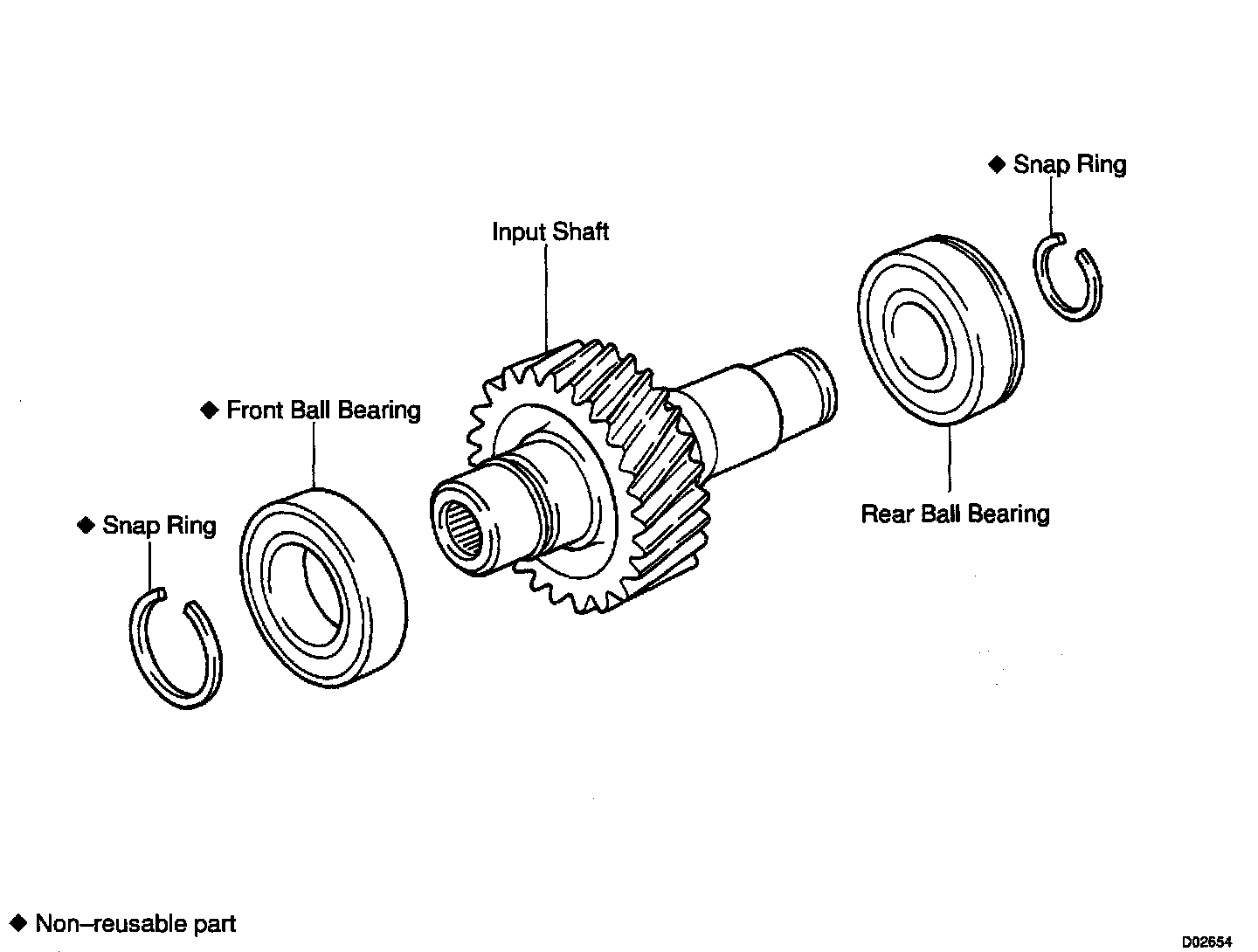

Input Shaft: Service and Repair

DISASSEMBLY





1. REMOVE REAR BALL BEARING

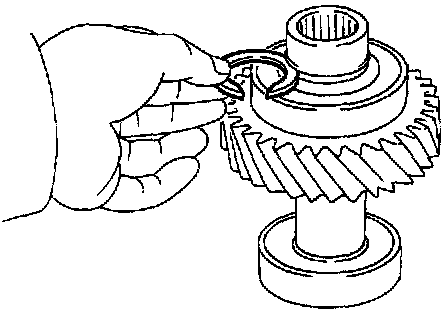

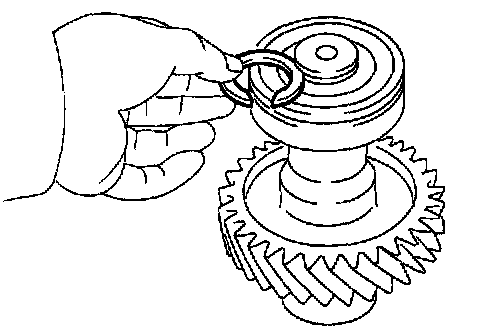

a. Using a snap ring expander, remove the snap ring.

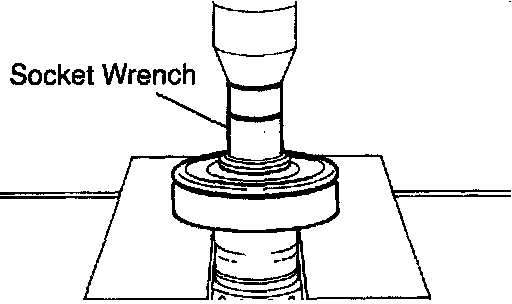

b. Using a socket wrench and press, remove the rear ball bearing.





2. REMOVE FRONT BALL BEARING

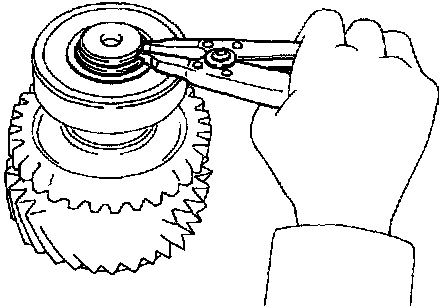

a. Using a snap ring expander, remove the snap ring.

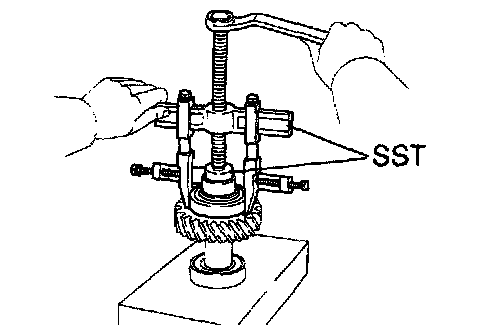

b. Using SST, remove the front ball bearing.
SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04011, 09957-04010, 09958-04011), 09950-60010 (09951 -00400)

REASSEMBLY

HINT: Coat all of the sliding and rotating surfaces with gear oil before reassembly.





1. INSTALL FRONT BALL BEARING

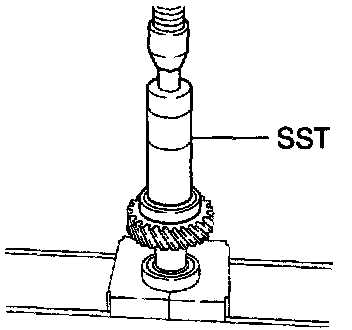

a. Using SST and a press, install a new front ball bearing.
SST 09316-60011 (09316-00011)

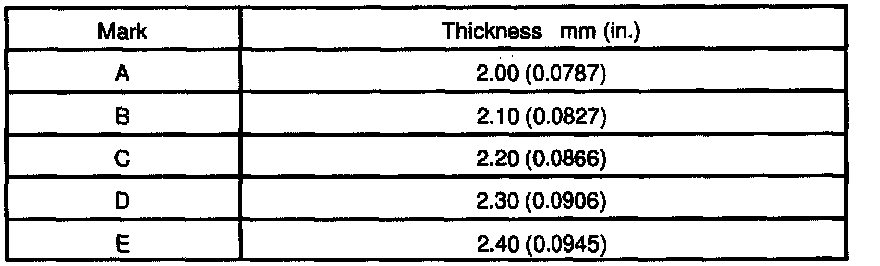

b. Select a snap ring that will allow the minimum axial play.
c. Using a snap ring expander, install a new snap ring.





2. INSTALL REAR BALL BEARING

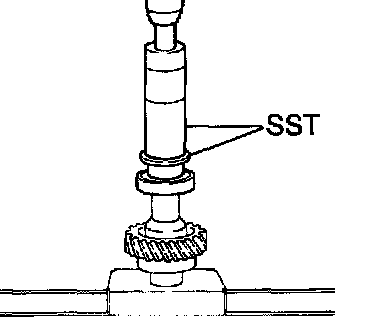

a. Using SST and a press, install the rear bail bearing.
SST 09316-60011 (09316-00011, 09316-00031)

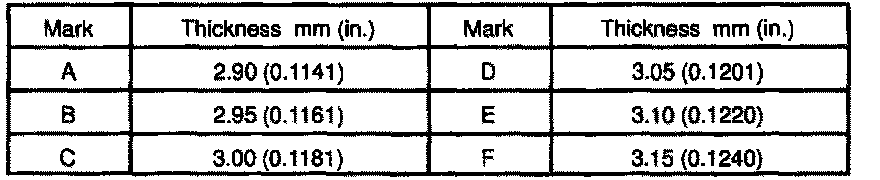

b. Select a snap ring that will allow the minimum axial play.
c. Using a snap ring expander, install a new snap ring.
