Instruments - Compass Calibration Procedure
PRODUCT GENERAL INFORMATIONPG018-00
REVISED
Title:
INITIAL CALIBRATION OF COMPASS
DURING PDS
Models:
'01 - '06 Land Cruiser
September 1, 2000
TSB REVISION NOTICE:
^ May 23, 2005: 2004 - 2006 model year Land Cruiser vehicles have been added to Applicable Vehicles.
The previous TSB should be discarded.
Introduction

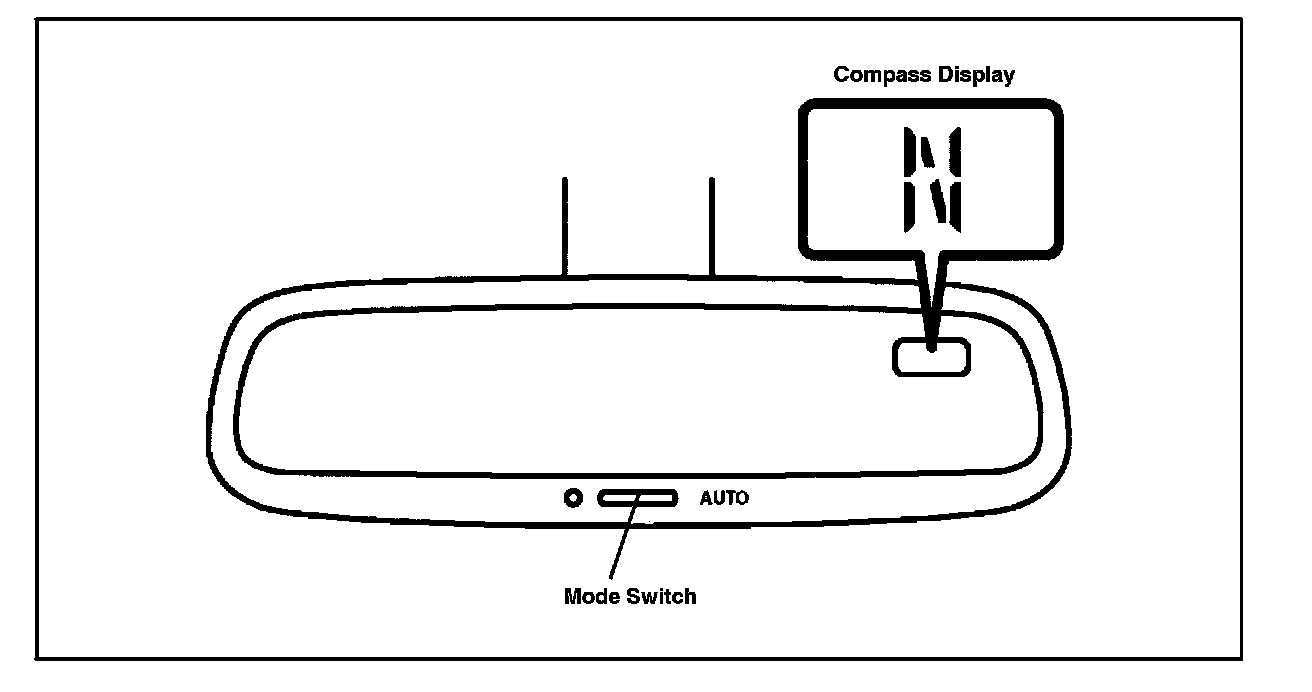

Some Land Cruiser vehicles are equipped with a compass in the rear view mirror.
Use the following procedure to complete initial calibration of the compass during Pre-Delivery Service (PDS).
Applicable Vehicles
2001 - 2006 model year Land Cruiser vehicles.

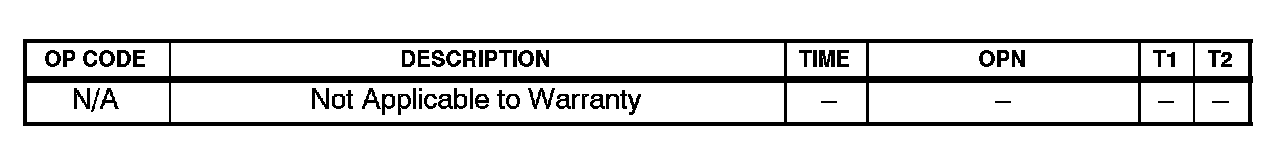

Warranty Information
Compass Calibration Procedure
1. Turn the ignition switch to the "ON" position and check that the Direction (N, NE, E, SE, S, SW, W, NW) or "C" appears on the compass display.
NOTE:

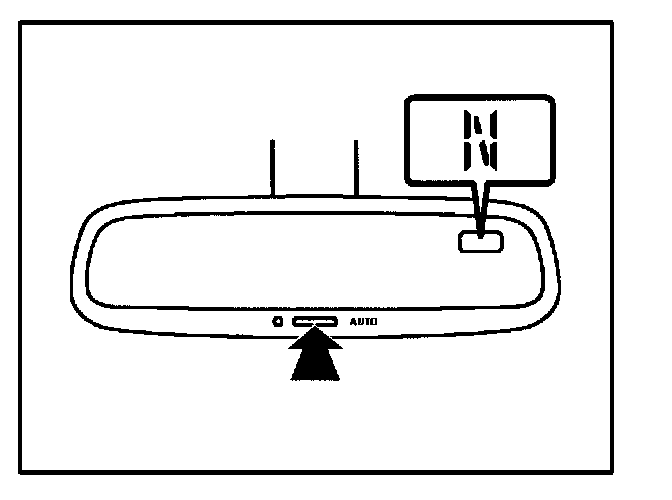

Pushing the mode switch for longer than 3 seconds turns the compass display "ON" or "OFF."

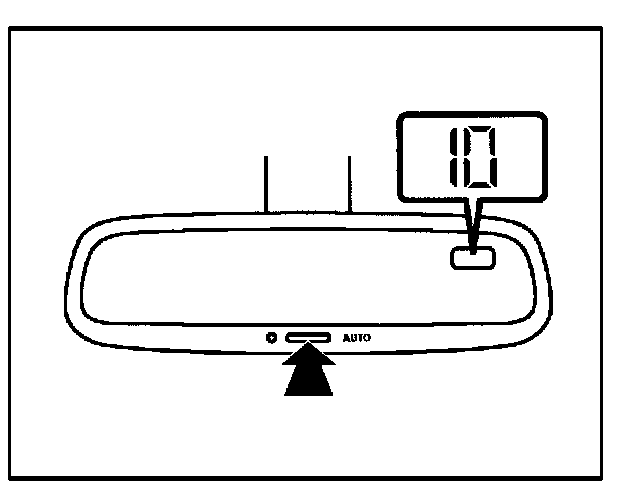

2. Push the mode switch for longer than 6 seconds until the zone number (1-15) appears on the display. Then push the switch to select the number of the zone where the vehicle is located.

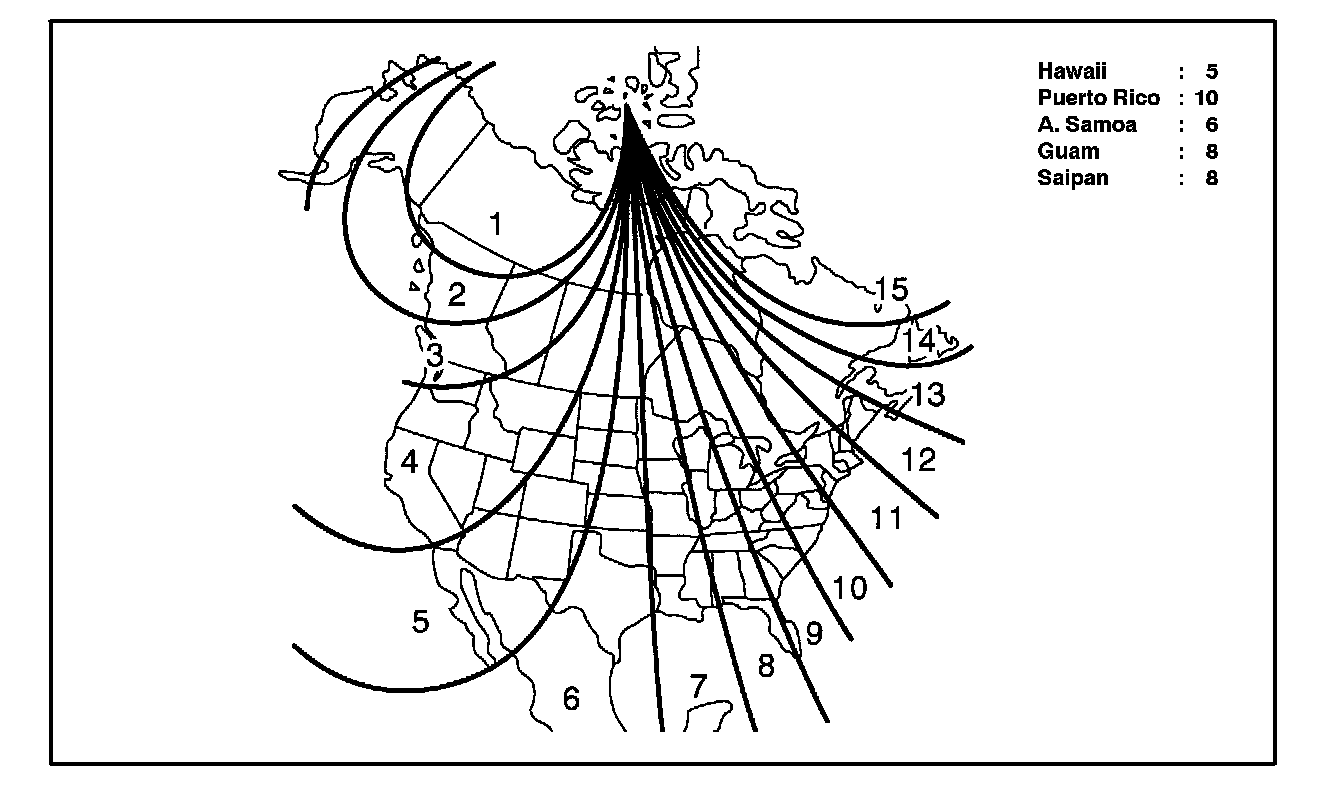

See the map for zone reference.

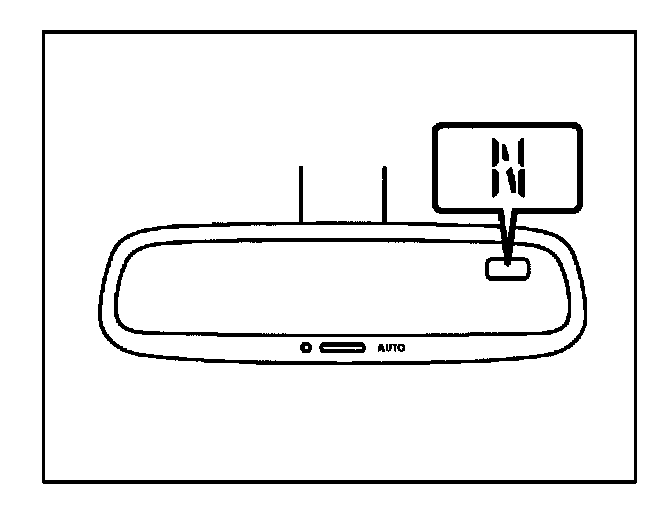

3. Check that the direction (N, NE, E, SE, S, SW, W, NW) or "C" appears several seconds after adjustment.

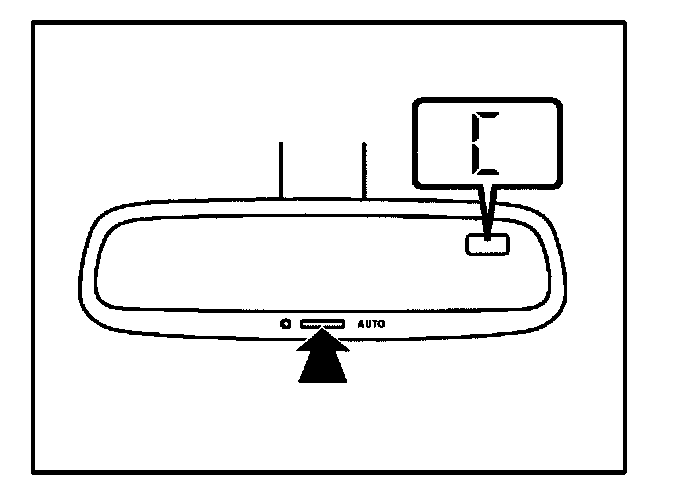

4. Start the engine and push the switch for longer than 9 seconds until "C" appears on the display.

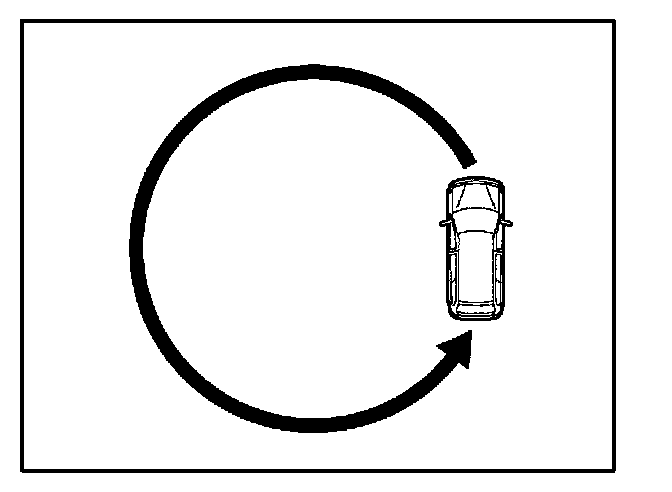

5. Drive the vehicle at 5 mph, or less, in a circle until the direction is displayed. If there is not enough space to drive in a circle, drive around the block until the direction is displayed.
After performing the above steps calibration is complete.
NOTE:
^ Do not perform calibration of the compass in a place where the earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.).
^ During calibration, do not operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
