Sensor Power Source Circuit

Sensor Power Source Circuit

CIRCUIT DESCRIPTION
Power to the position sensor is output from ECU.

Wiring Diagram:

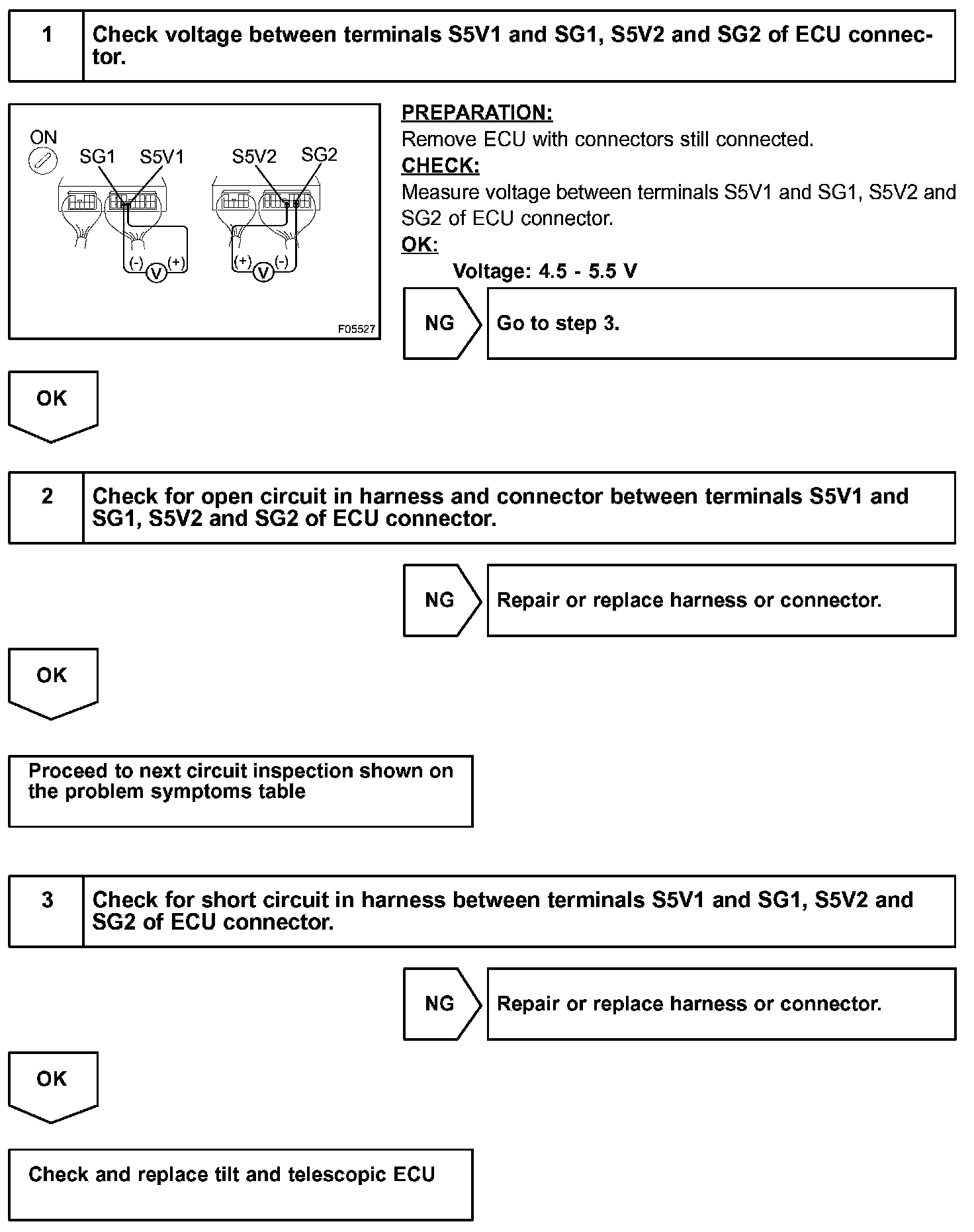

Step 1 - 3:

INSPECTION PROCEDURE
