Multiple Junction Connector: Application and ID

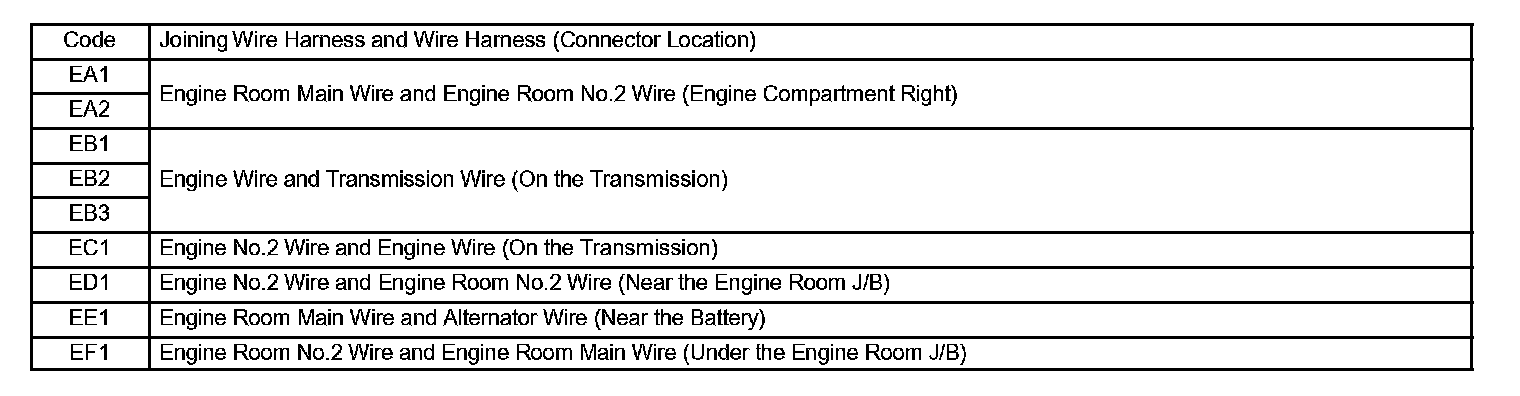

EA1 - EF1:

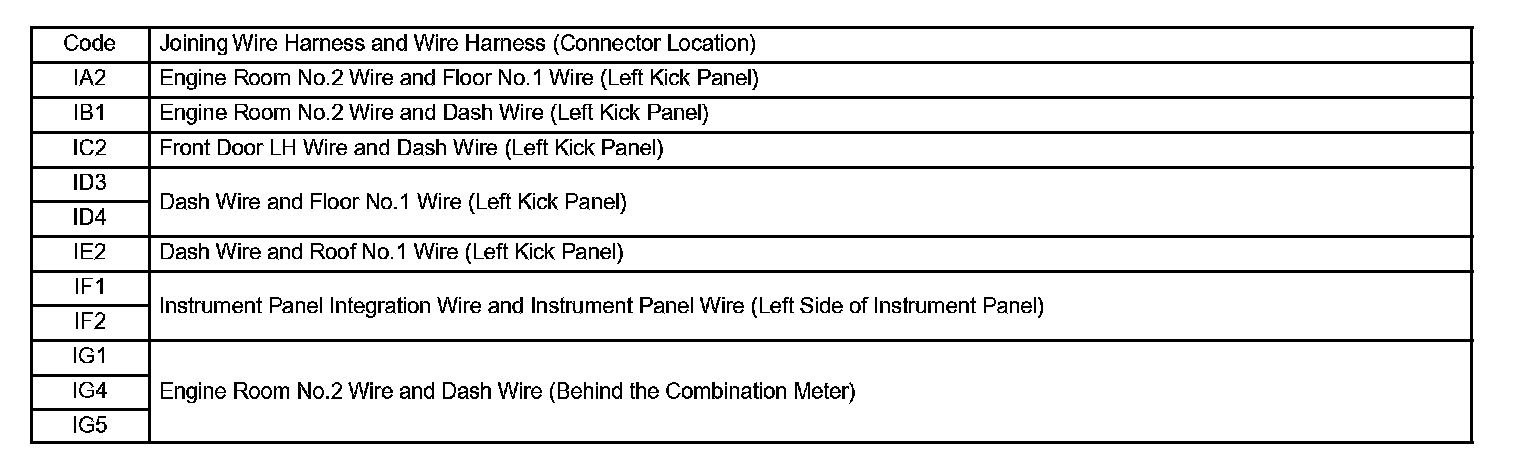

IA2 - IG5:

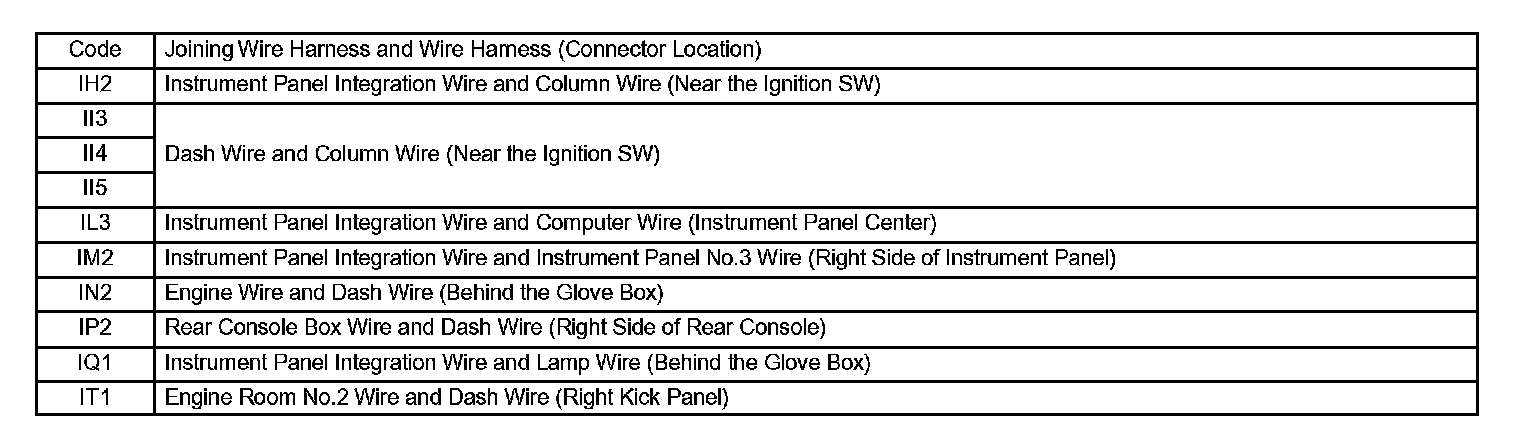

IH2 - IT1:

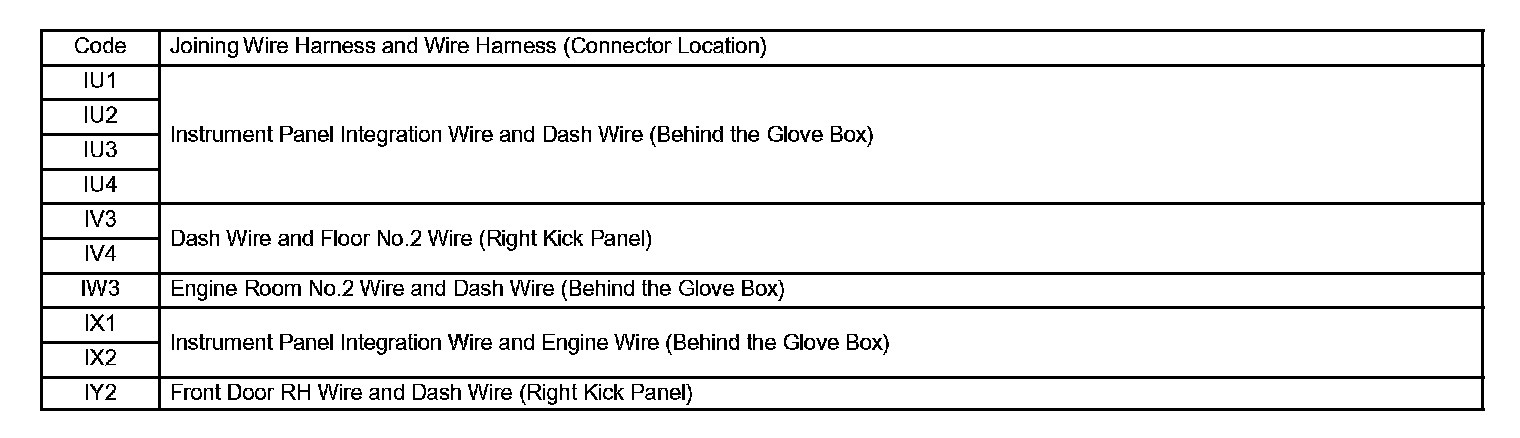

IU1 - IY2:

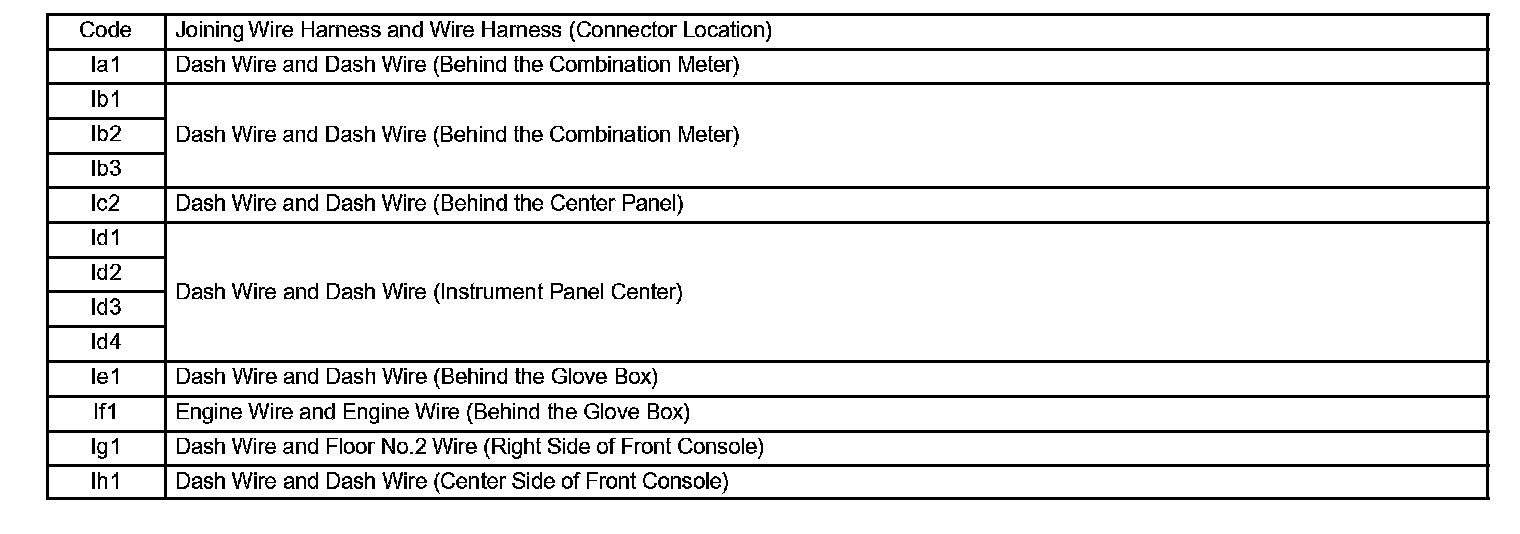

Ia1 - Ih1:

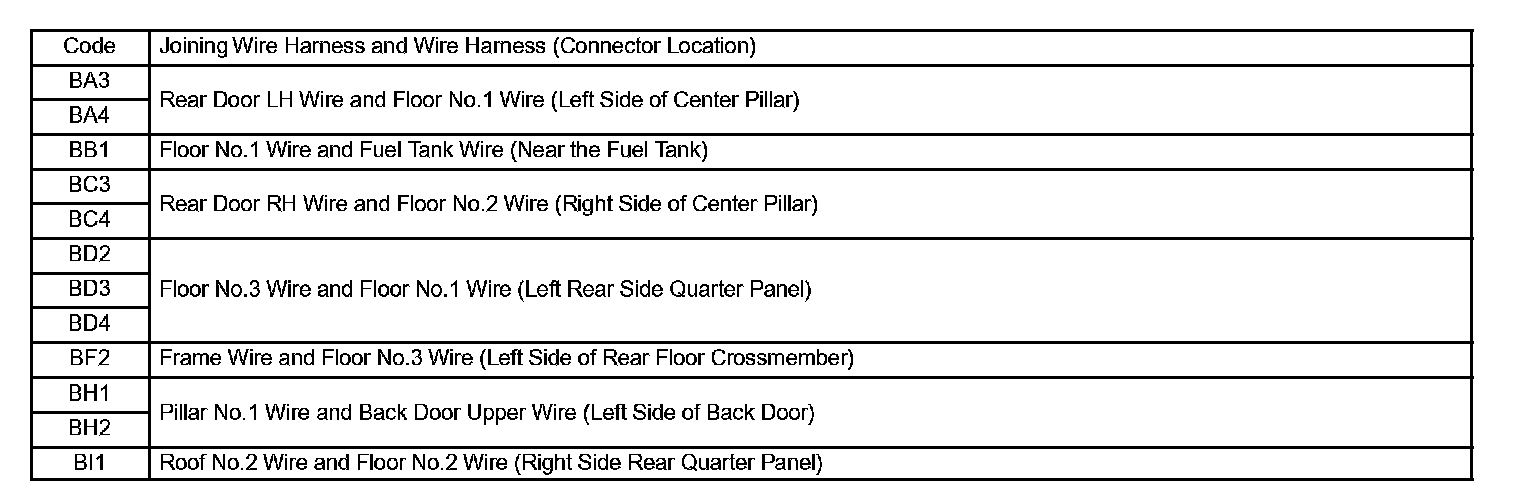

BA3 - BI1:

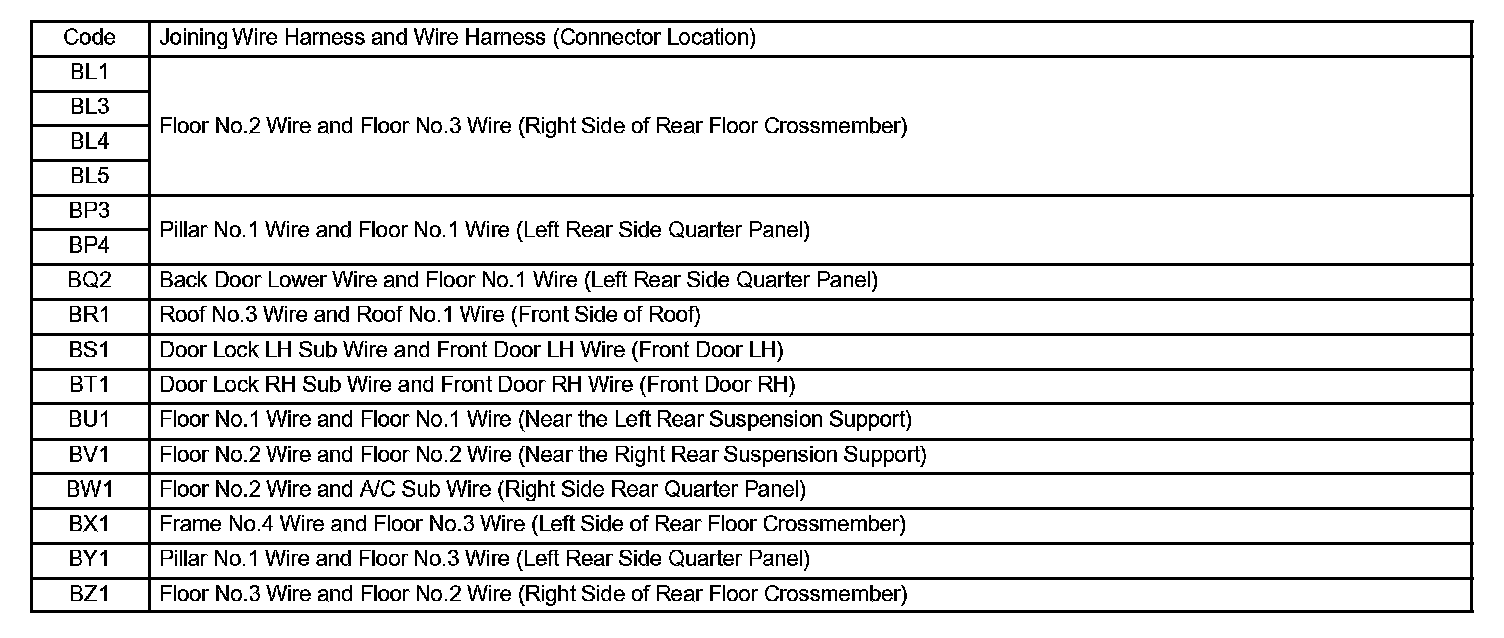

BL1 -BZ1:

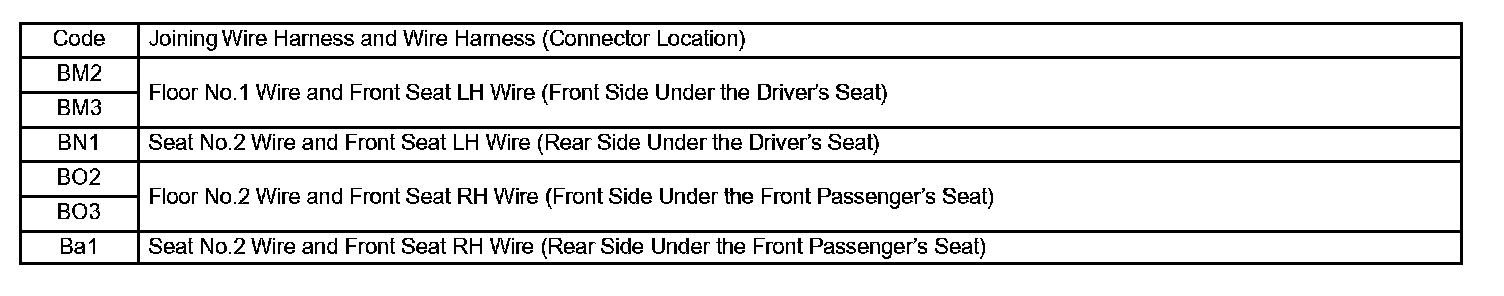

BM2 - Ba1:
