Skid Control (VSC) System

FOR VEHICLE EQUIPPED WITH VEHICLE SKID CONTROL (VSC) SYSTEM





a. Precaution when using drum tester:

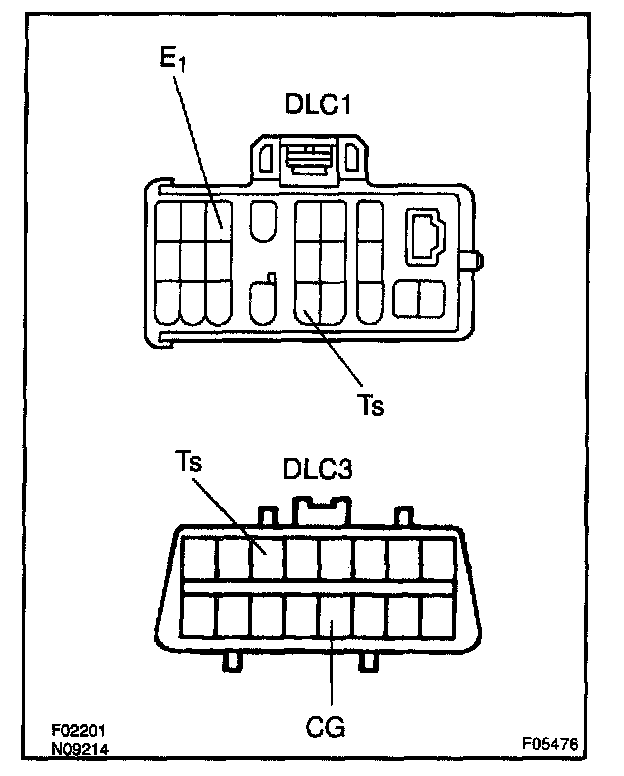

When using a drum tester, make sure that the ignition switch is OFF, start the engine with the diagnosis connector short-circuited between Ts and E1 (CG) and take a measurement.

NOTE:
- Check that VSC warning light is blinking.
- Ensure that the vehicle does not move using wires.
- After the measurement, disconnect the short circuit and check that the VSC warning light Is turned off when restarting the engine.

b. Precaution during VSC operation:
1. Since VSC may be affected by the removal/installation of the VSC-related parts, do not remove/install those parts unless absolutely necessary.
2. When operating on VSC, follow the instructions in Brakes and Traction Control to surely make preparations or check after operations.
