Collision / Non-Collision Inspections

1. Vehicles not involved in collision
INSPECT SUPPLEMENTAL RESTRAINT SYSTEM
Do a diagnostic system check. *

2. Vehicles involved in collision
INSPECT SUPPLEMENTAL RESTRAINT SYSTEM
a. Do a diagnostic system check. *

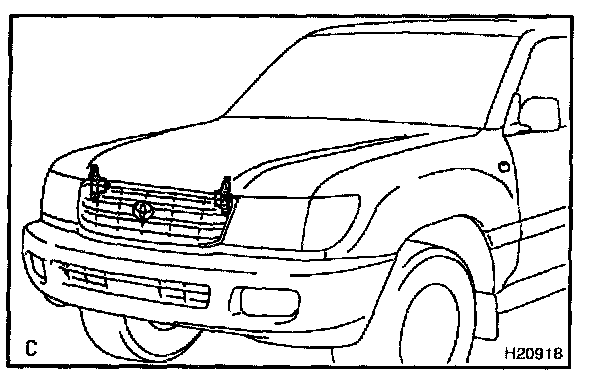

b. If the front fender of the car or its periphery is damaged, do a visual check for damage to the front airbag sensor, which includes the following items even if the airbag was not deployed:
- Bracket deformation.
- Paint peeling off the bracket.
- Cracks, dents or chips in the case.
- Cracks, dents, chipping and scratches in the connector.
- Peeling off of the label or damage to the serial number.

* Refer to Air Bag Systems; Testing and Inspection.
