Pinout Values and Diagnostic Parameters

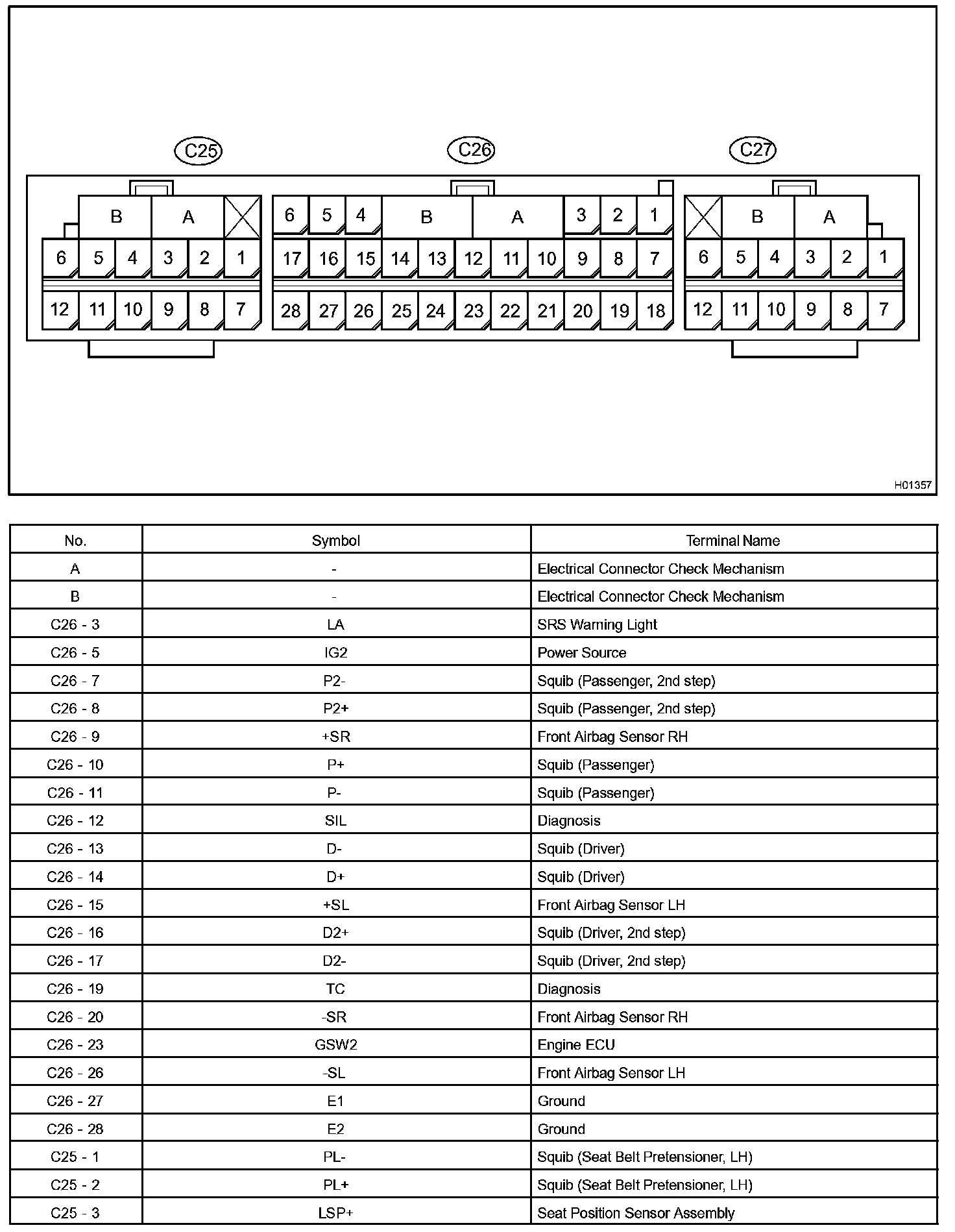

Terminals Of Control Module/Pinouts - W/o Side Airbag Part 1:



Terminals Of Control Module/Pinouts - W/o Side Airbag Part 2:

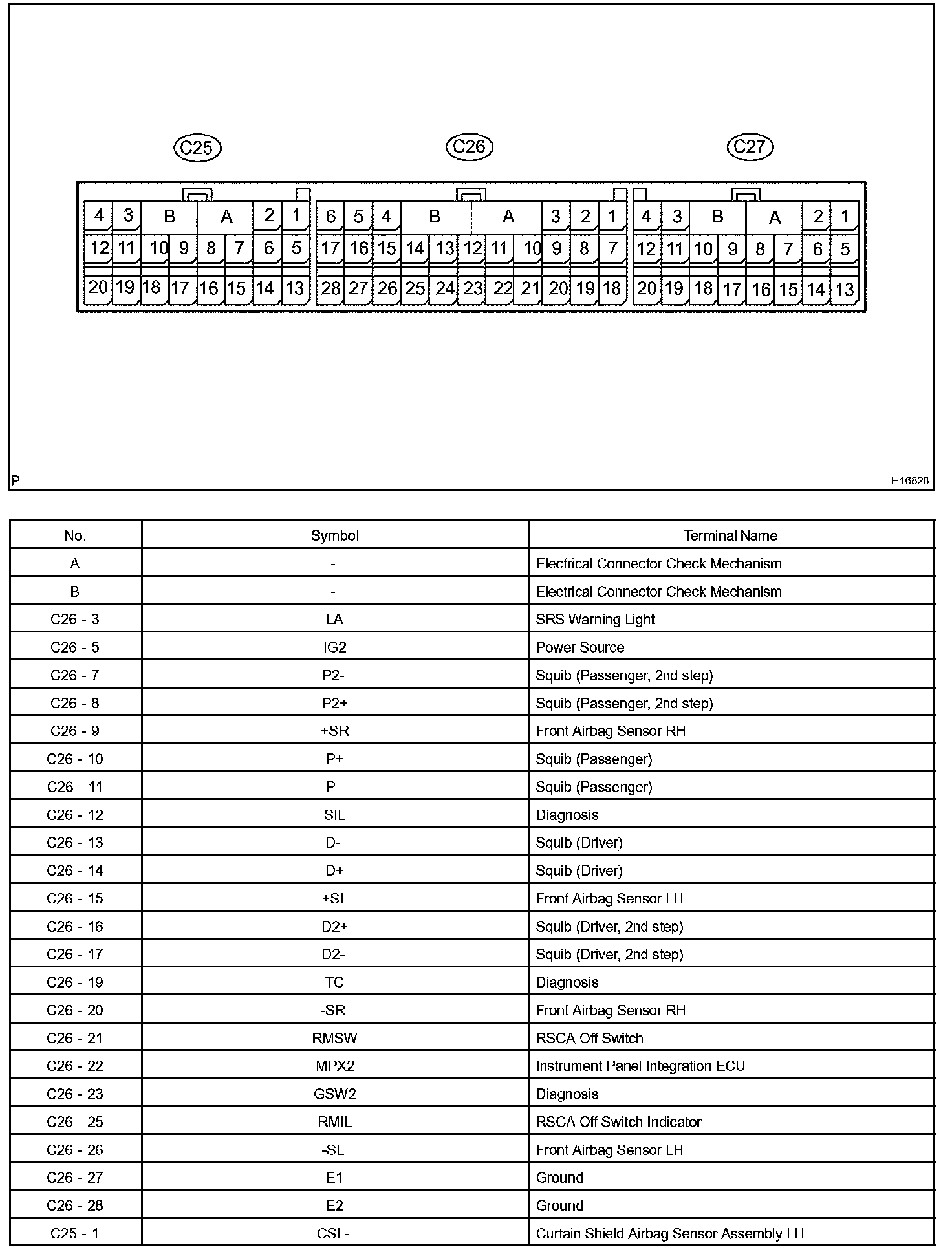

Terminals Of Control Module/Pinouts - W/ Side Airbag Part 1:

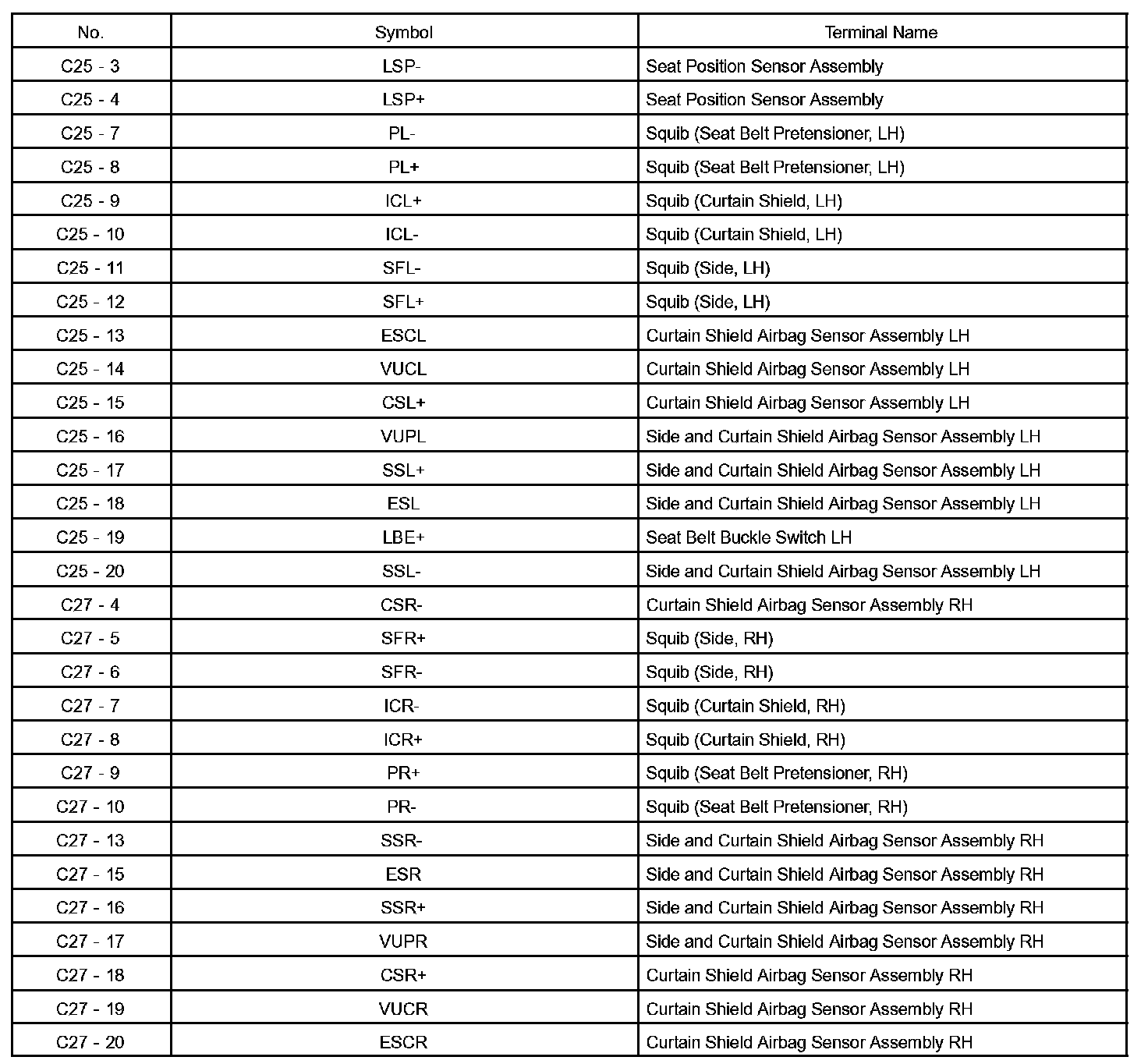

Terminals Of Control Module/Pinouts - W/ Side Airbag Part 2:
