Fuse: Application and ID

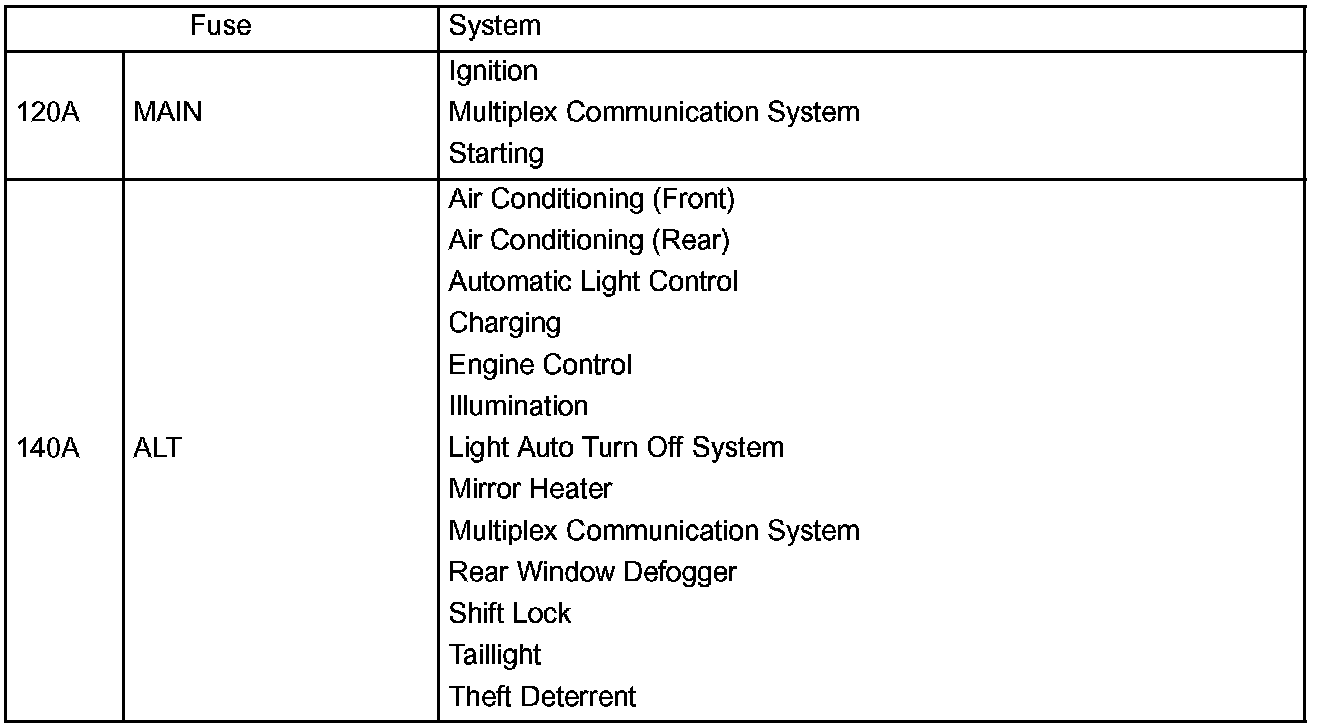

Fusible Link Block Part 1:

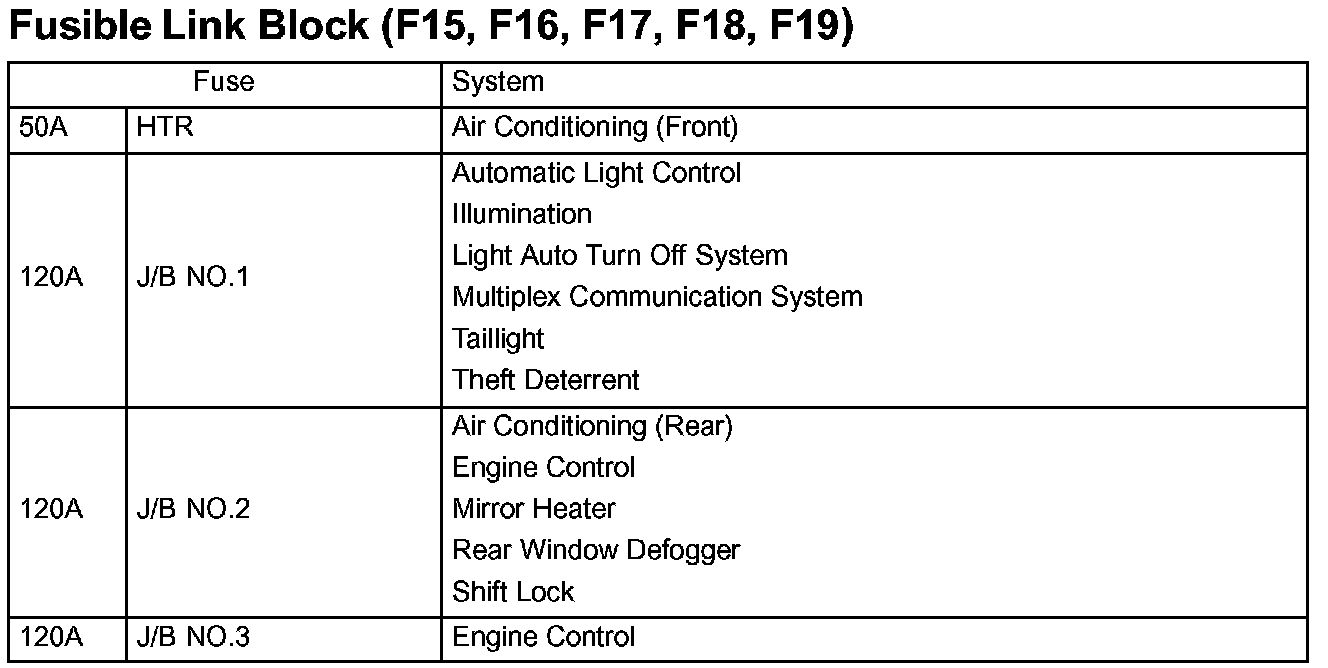

Fusible Link Block Part 2:

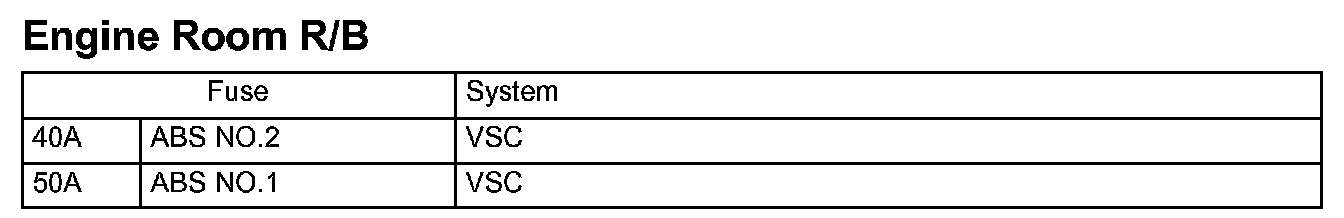

Engine Room R/B:

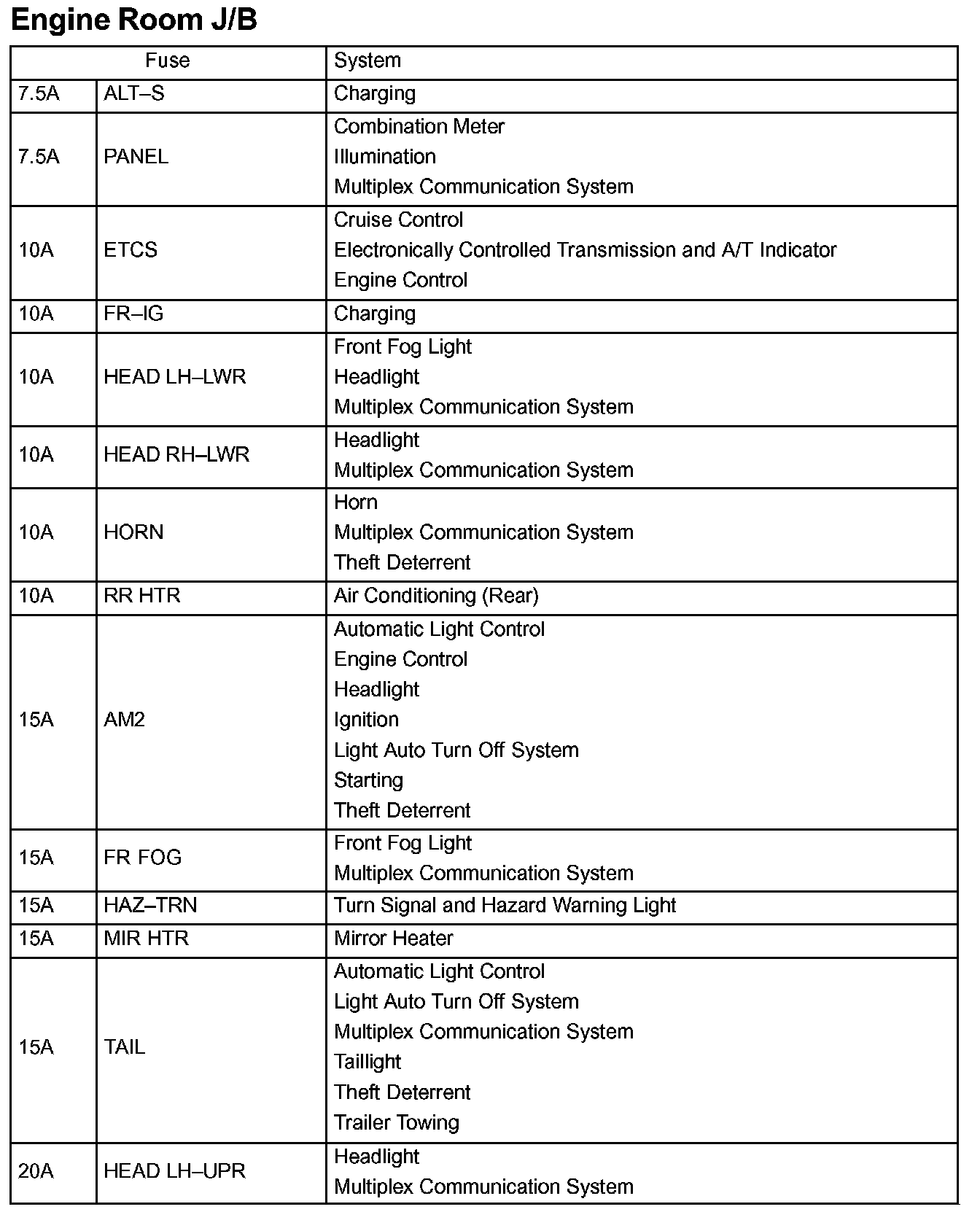

Engine Room J/B Part 1:

Engine Room J/B Part 2:

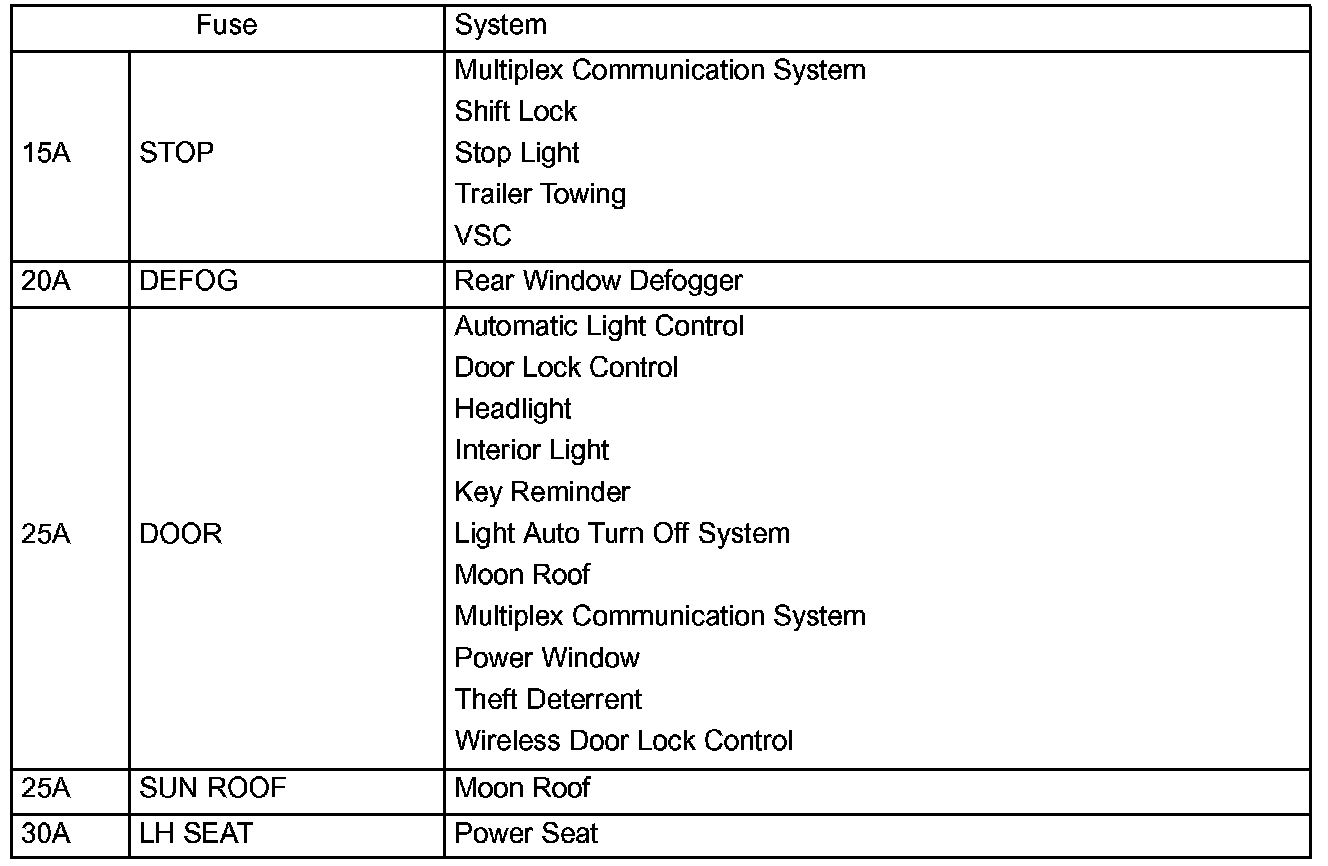

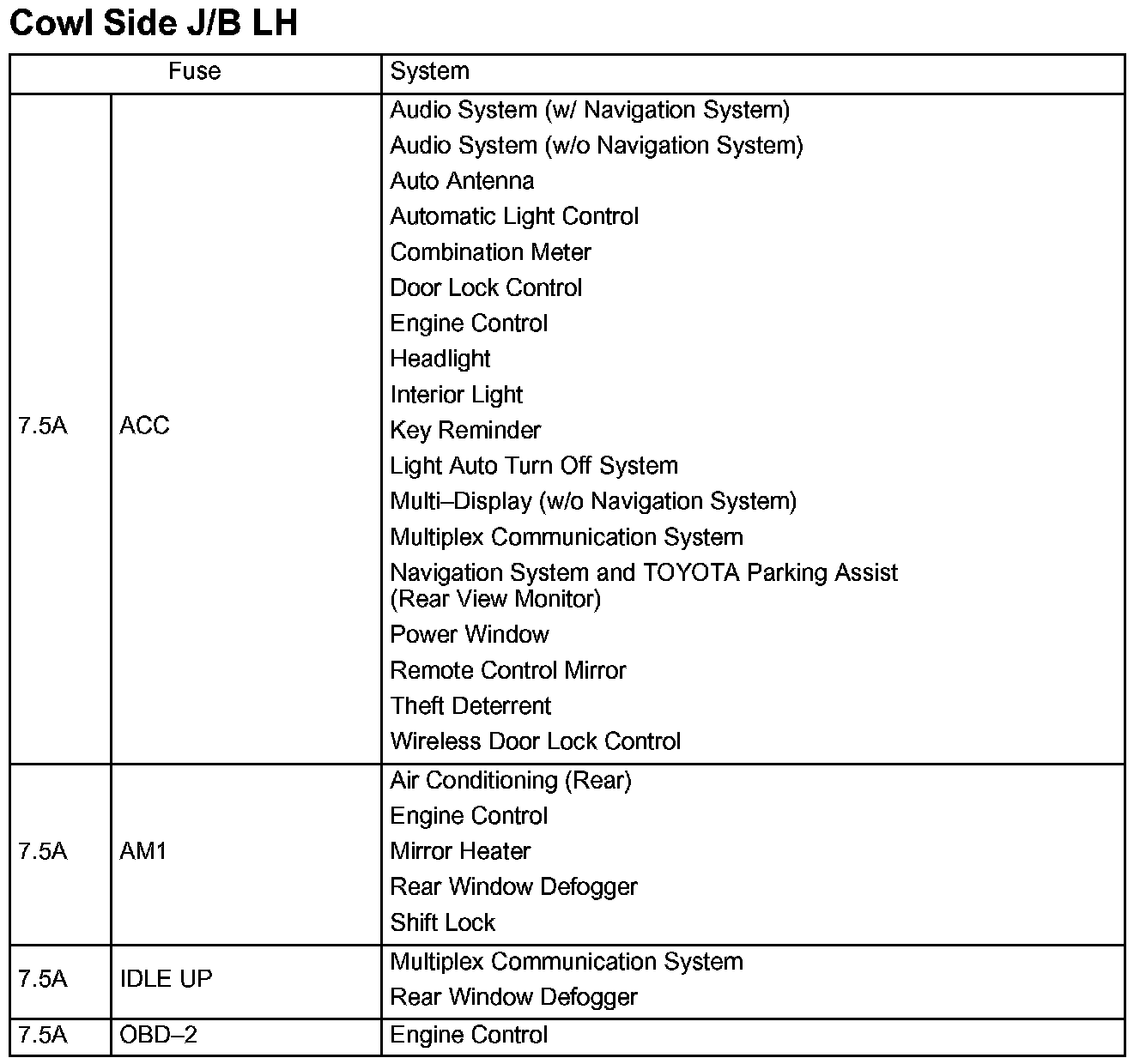

Cowl Side J/B LH Part 1:

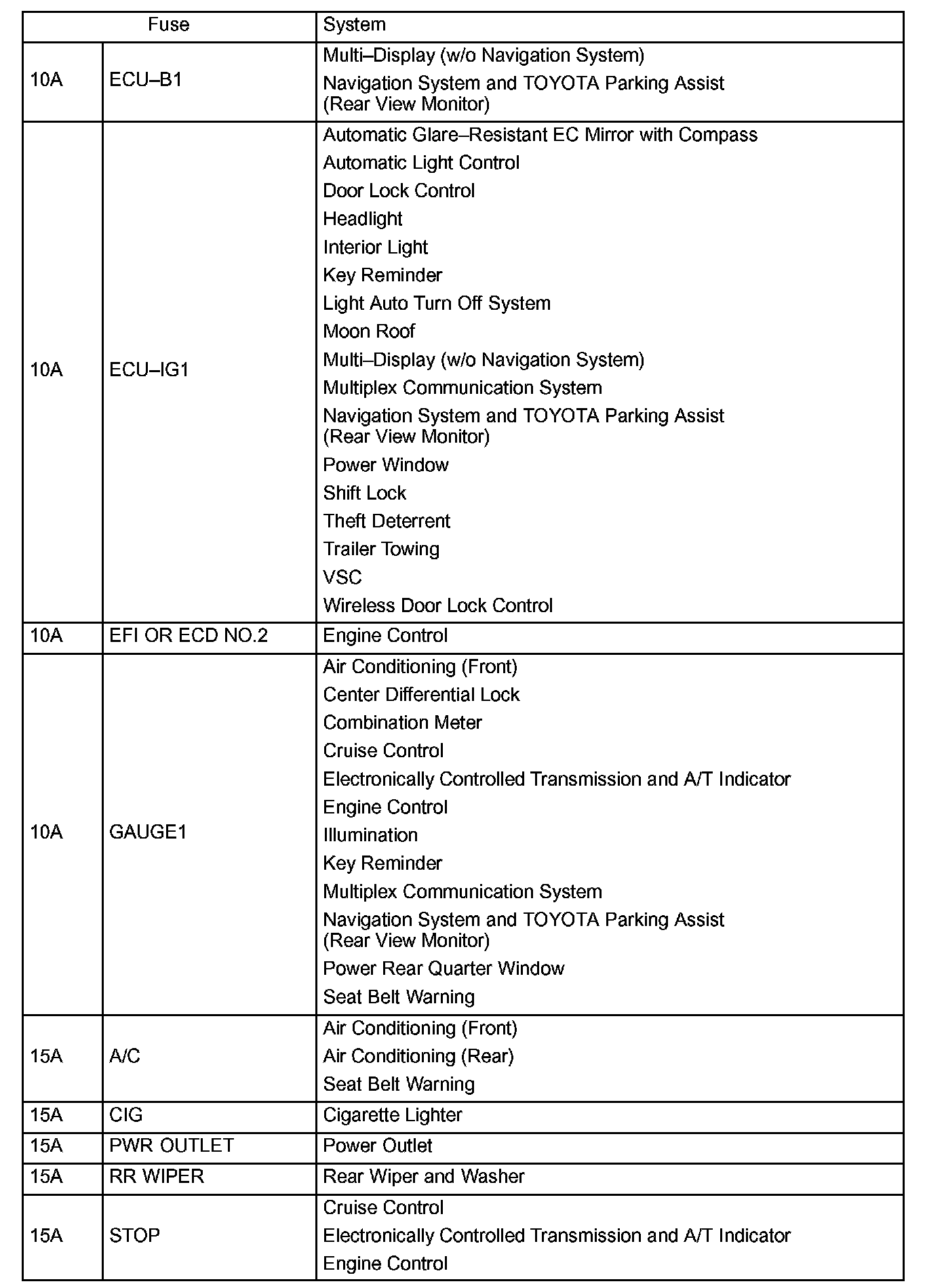

Cowl Side J/B LH Part 2:

Cowl Side J/B LH Part 3:

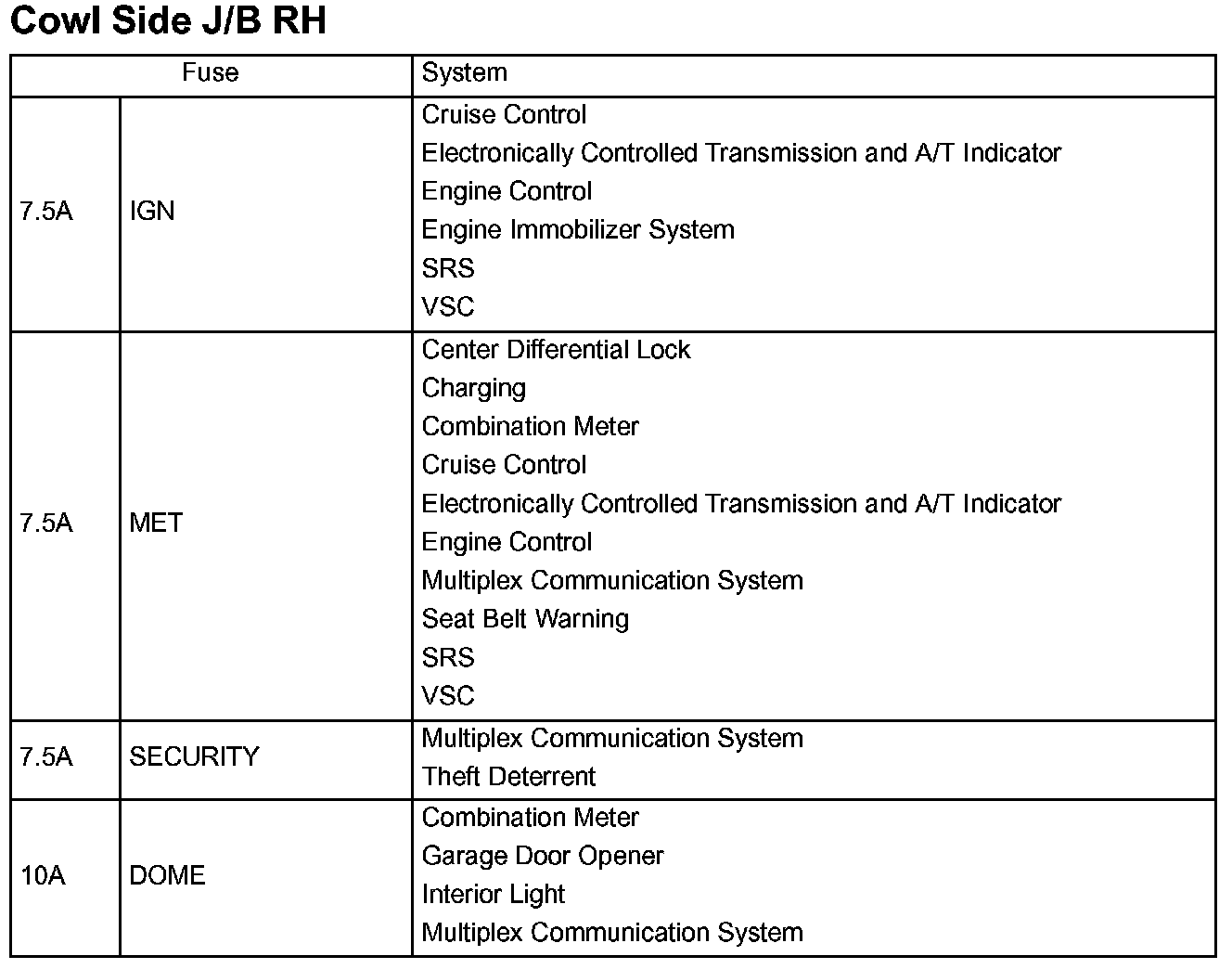

Cowl Side J/B RH Part 1:

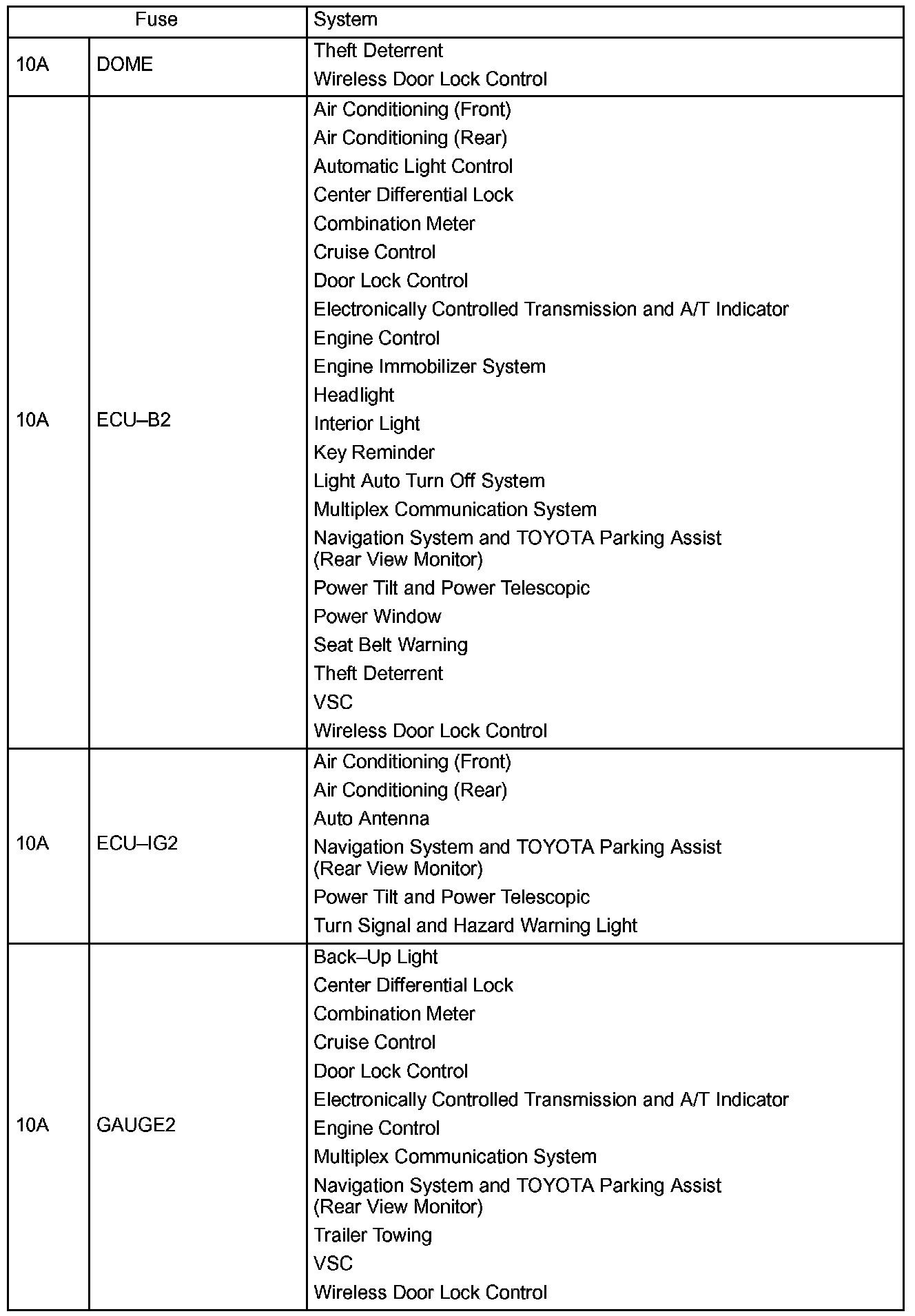

Cowl Side J/B RH Part 2:

Cowl Side J/B RH Part 3:
