Drive Belt: Testing and Inspection

INSPECTION
INSPECT DRIVE BELT

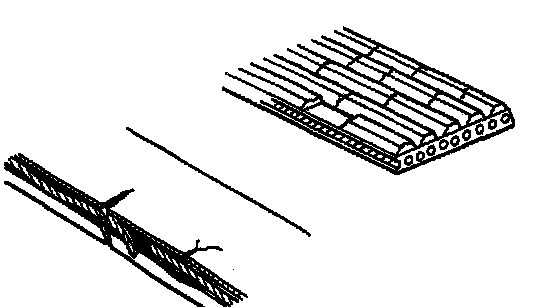

Visually check the belt for excessive wear, frayed cords, etc. If any defect has been found, replace the drive belt.

HINT: Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.
