Interior Light Switch: Testing and Inspection

INSPECTION

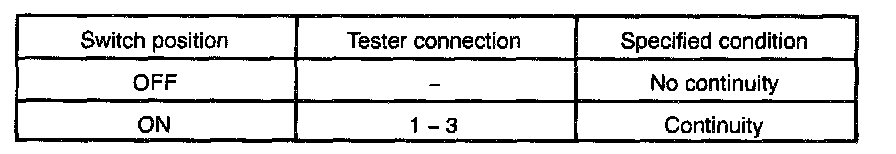

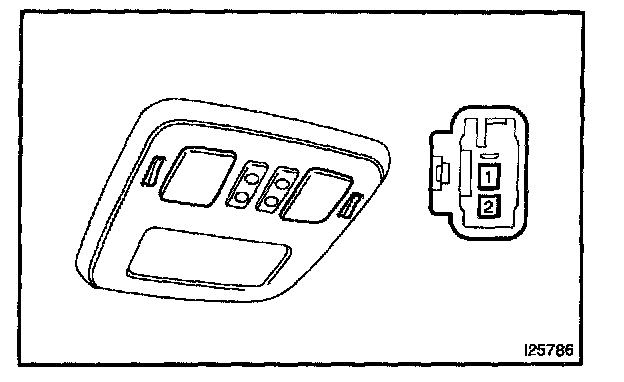

INSPECT FRONT PERSONAL LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the light assembly or bulb.

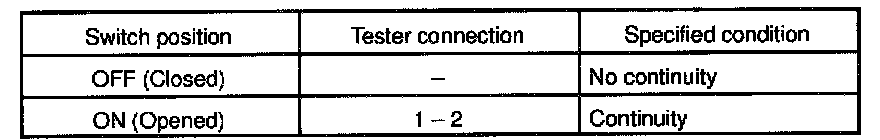

INSPECT REAR PERSONAL LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the light assembly or bulb.

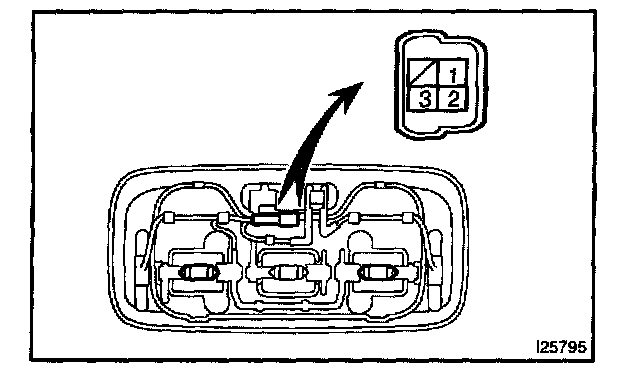

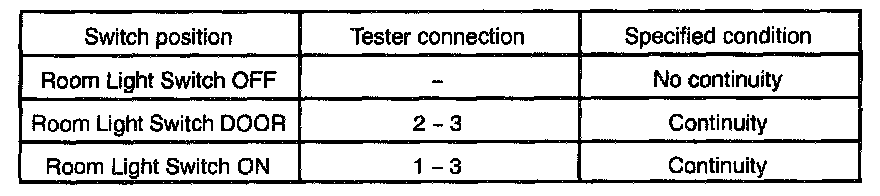

INSPECT ROOM LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the light assembly or bulb.

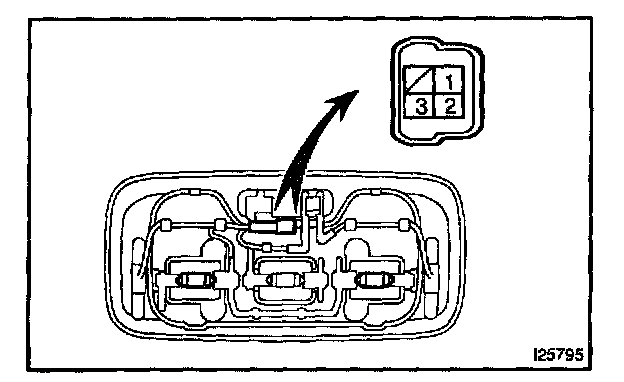

INSPECT REAR ROOM LIGHT SWITCH CONTINUITY
a. Disconnect the connector from room light assembly.

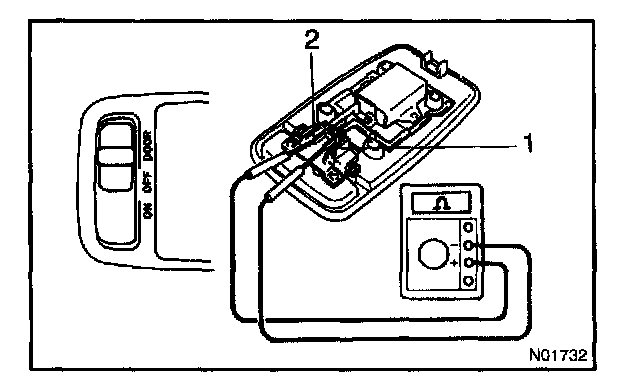

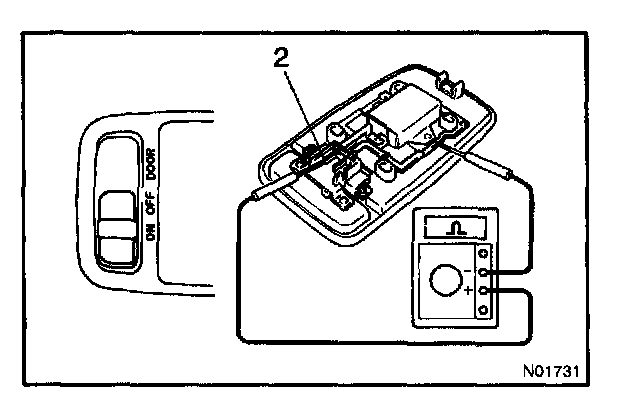

b. Turn the room light switch ON, check that continuity exists between terminal 2 and body ground.




c. Turn the room light switch DOOR, check that continuity exists between terminal 1 and 2.
If operation is not as specified, replace the light assembly or bulb.
