Room Temperature Sensor (For Rear Air Conditioning)

INSPECTION




1. REMOVE ROOM TEMPERATURE SENSOR

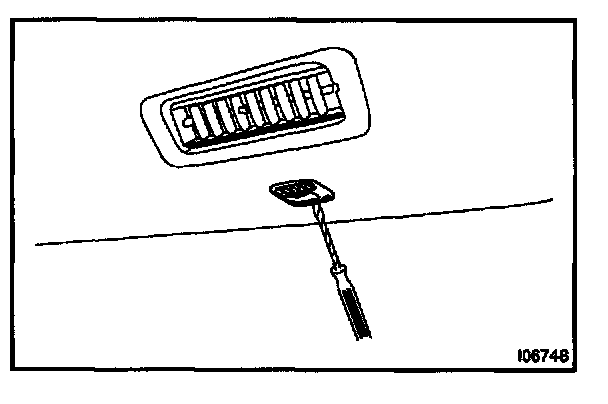

Using a screwdriver, pull out the room temperature sensor, then disconnect the connector.

HINT: Tape the screwdriver tip before use.

2. INSPECT ROOM TEMPERATURE SENSOR
Refer to Heating and Air Conditioning; Testing and Inspection.

3. INSTALL ROOM TEMPERATURE SENSOR
a. Connect the connector.
b. Insert the room temperature sensor to the roof headlining.
