Front

INSPECTION

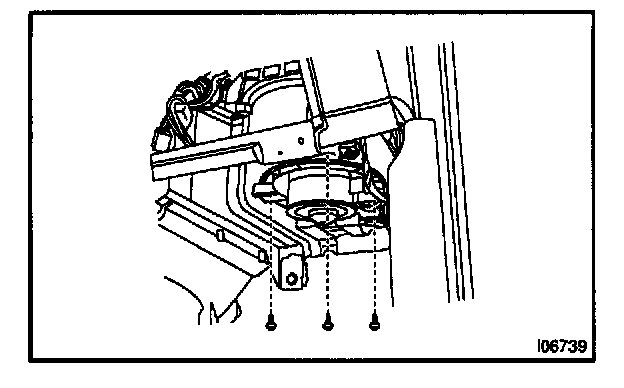

1. REMOVE BLOWER MOTOR
a. Disconnect the connector.
b. Remove the 3 screws and blower motor.

2. INSPECT BLOWER MOTOR CIRCUIT
Refer to Heating and Air Conditioning; Testing and Inspection.
3. INSTALL BLOWER MOTOR
a. Install the blower motor with 3 screws.
b. Connect the connector.
