Heater Main Relay

INSPECTION

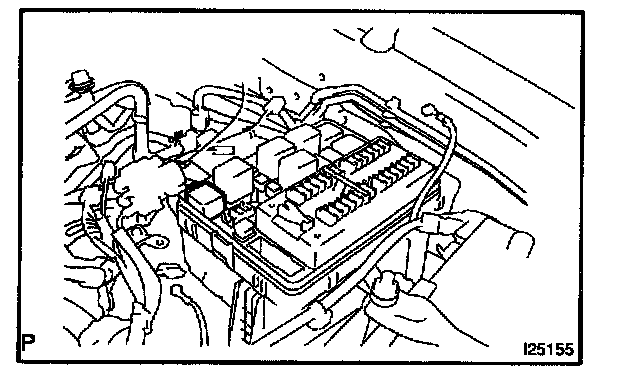

1. REMOVE HEATER MAIN RELAY
Remove the heater main relay.

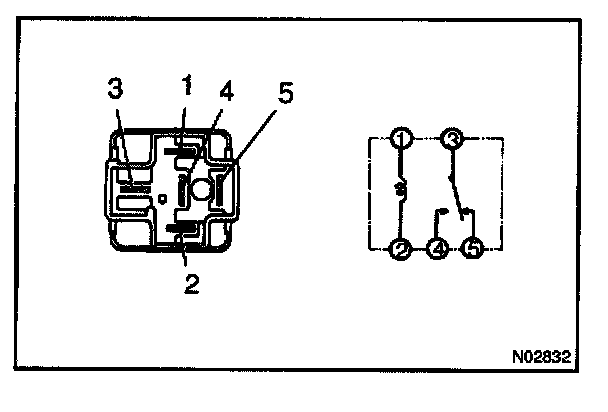

2. INSPECT HEATER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

3. INSTALL HEATER MAIN RELAY
