Blower Motor Control Relay

INSPECTION




1. REMOVE BLOWER MOTOR CONTROL RELAY
a. Disconnect the connectors.

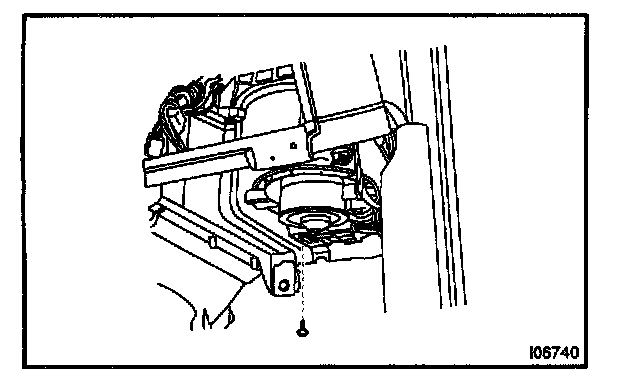

b. Remove the screw and blower motor control relay.







2. INSPECT BLOWER MOTOR CONTROL RELAY

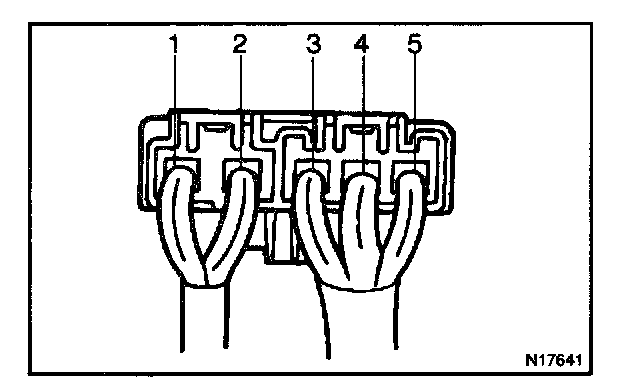

Connect the connector to the blower motor control relay and inspect the wire harness side connector from the back side as shown in the chart.
Test condition:
Turn ignition switch to ON
If circuit is not as specified, replace the relay.
