Power Tilt and Power Telescopic Steering Column

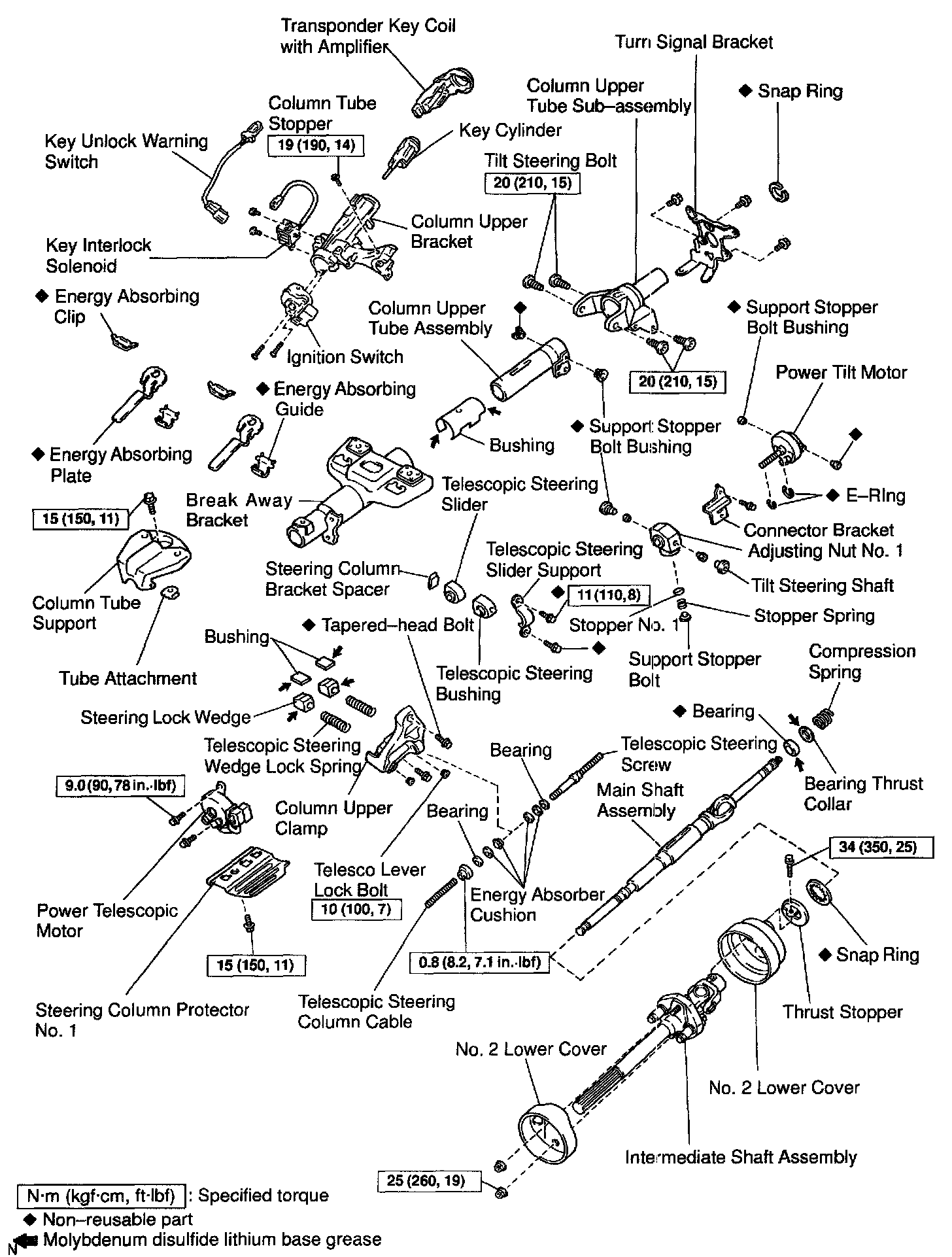

Part 1 Of 2:

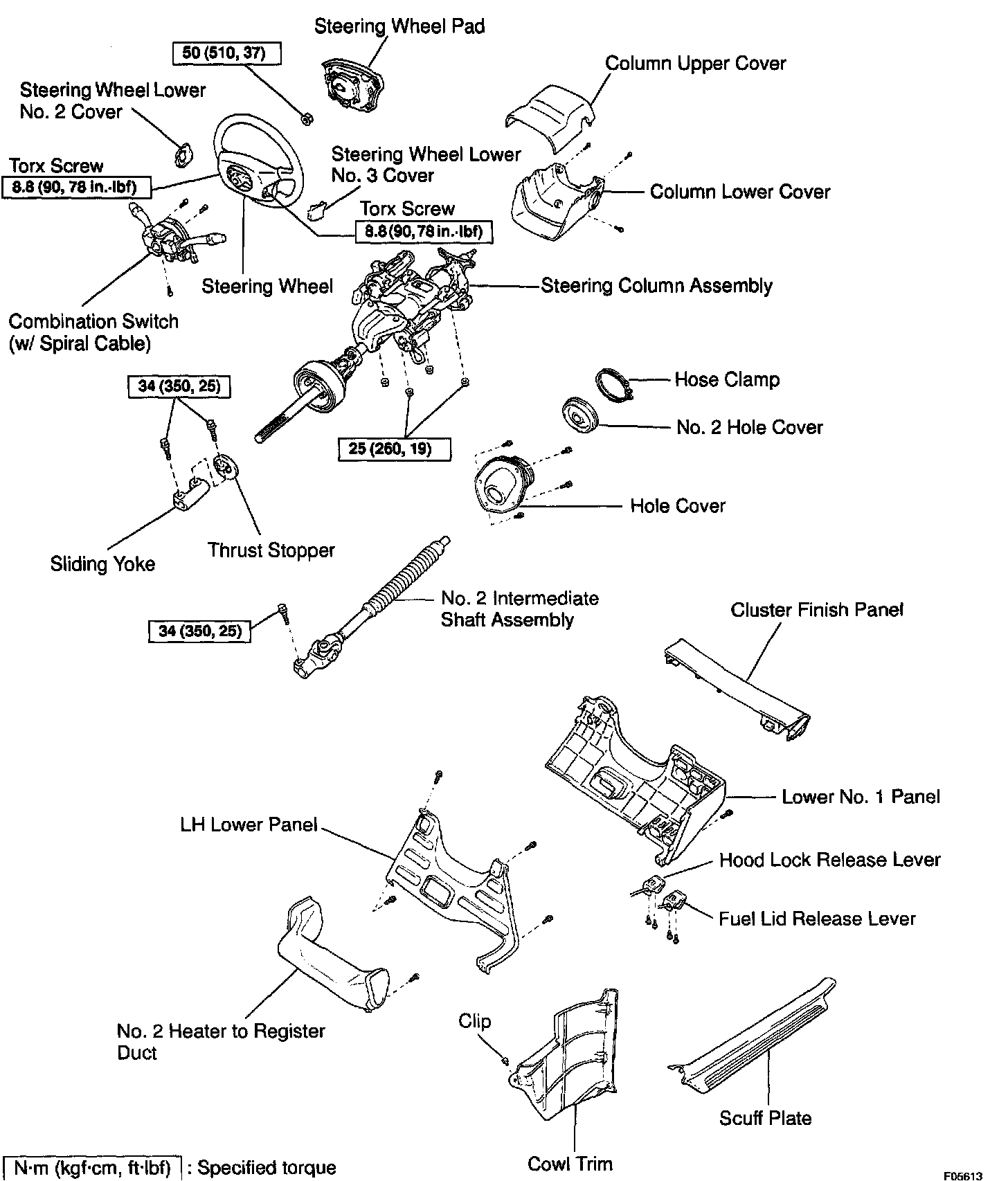

Part 2 Of 2:





POWER TILT AND POWER TELESCOPIC STEERING COLUMN REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
