Differential Assembly
>>
Rear
>>
Differential Carrier (W/ LSD)
Differential Carrier (W/ LSD)

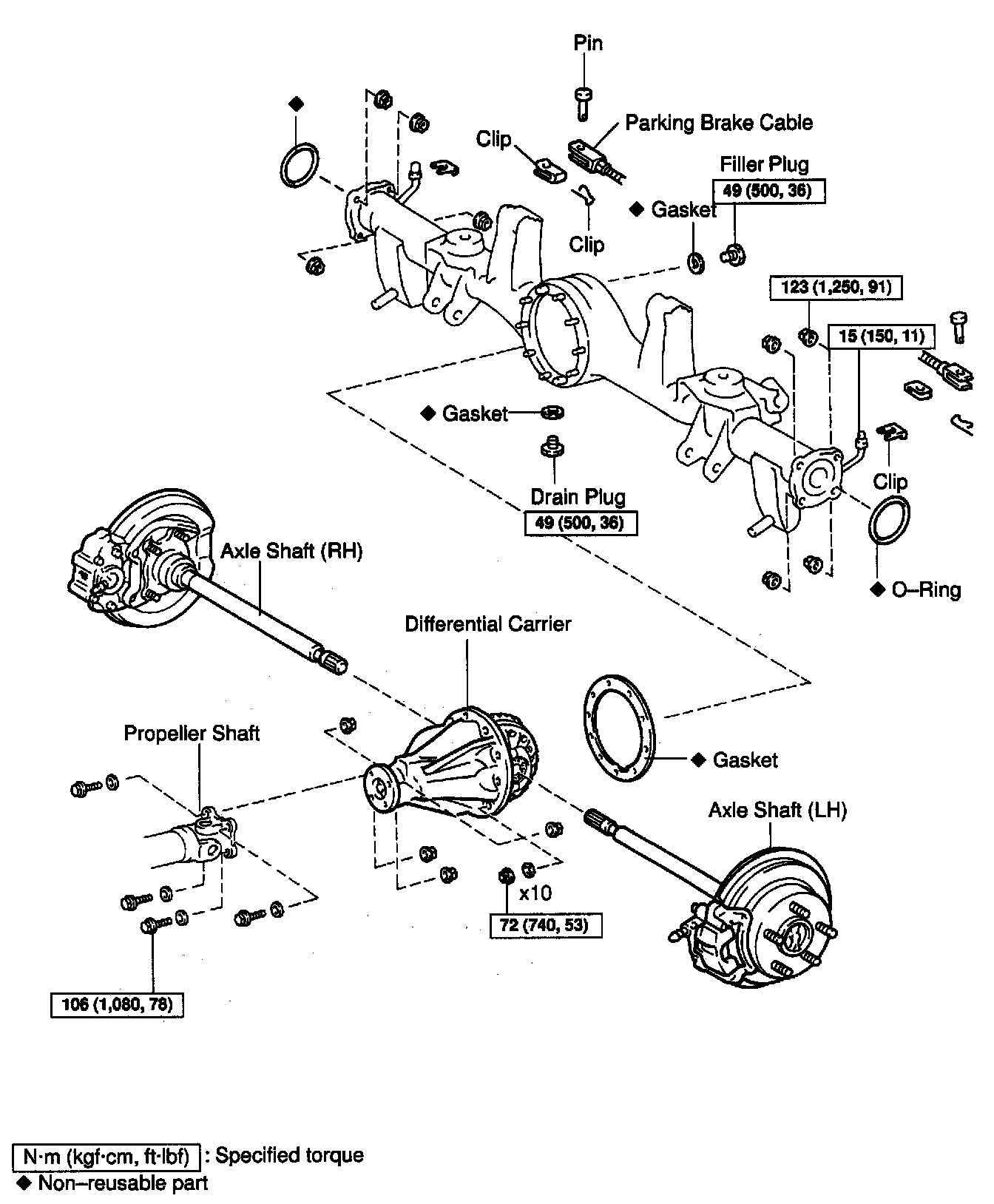

Part 1 Of 2:

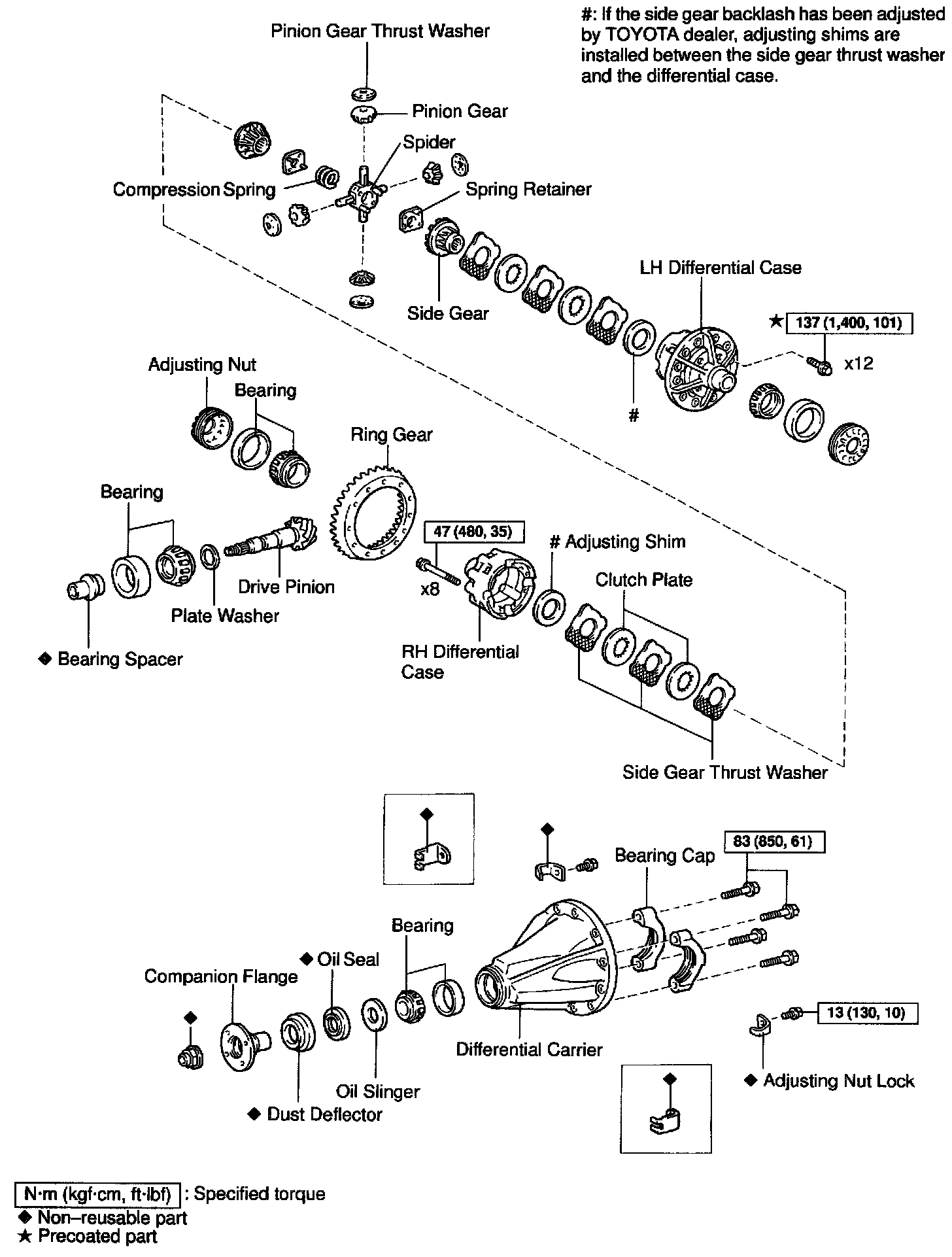

Part 2 Of 2:
REAR
DIFFERENTIAL CARRIER
(w/ LSD) REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
