Toyota Truck
>>
2005
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear
>>
Differential Carrier (W/ Diff. Lock)
Differential Carrier (W/ Diff. Lock)

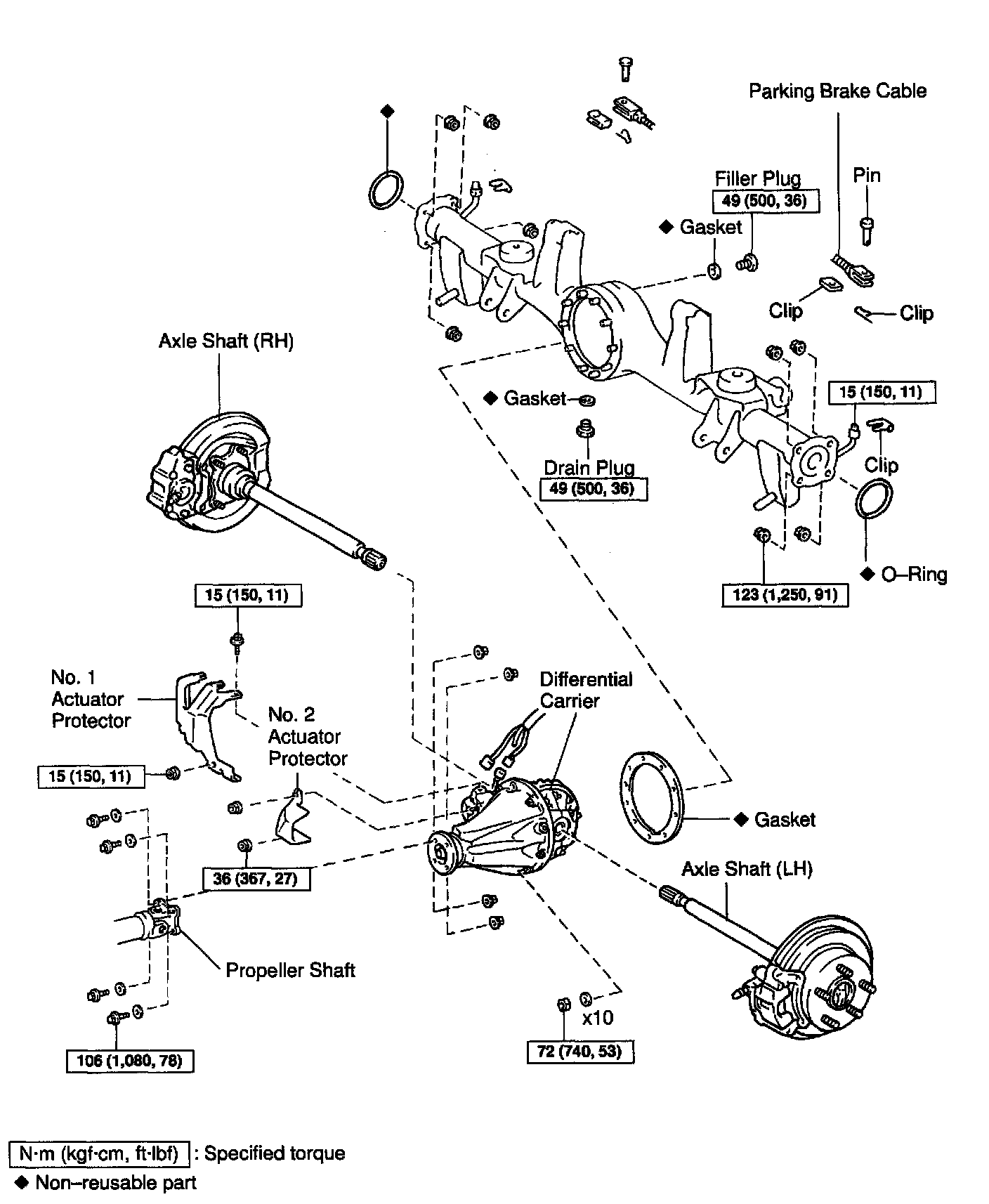

Part 1 Of 2:

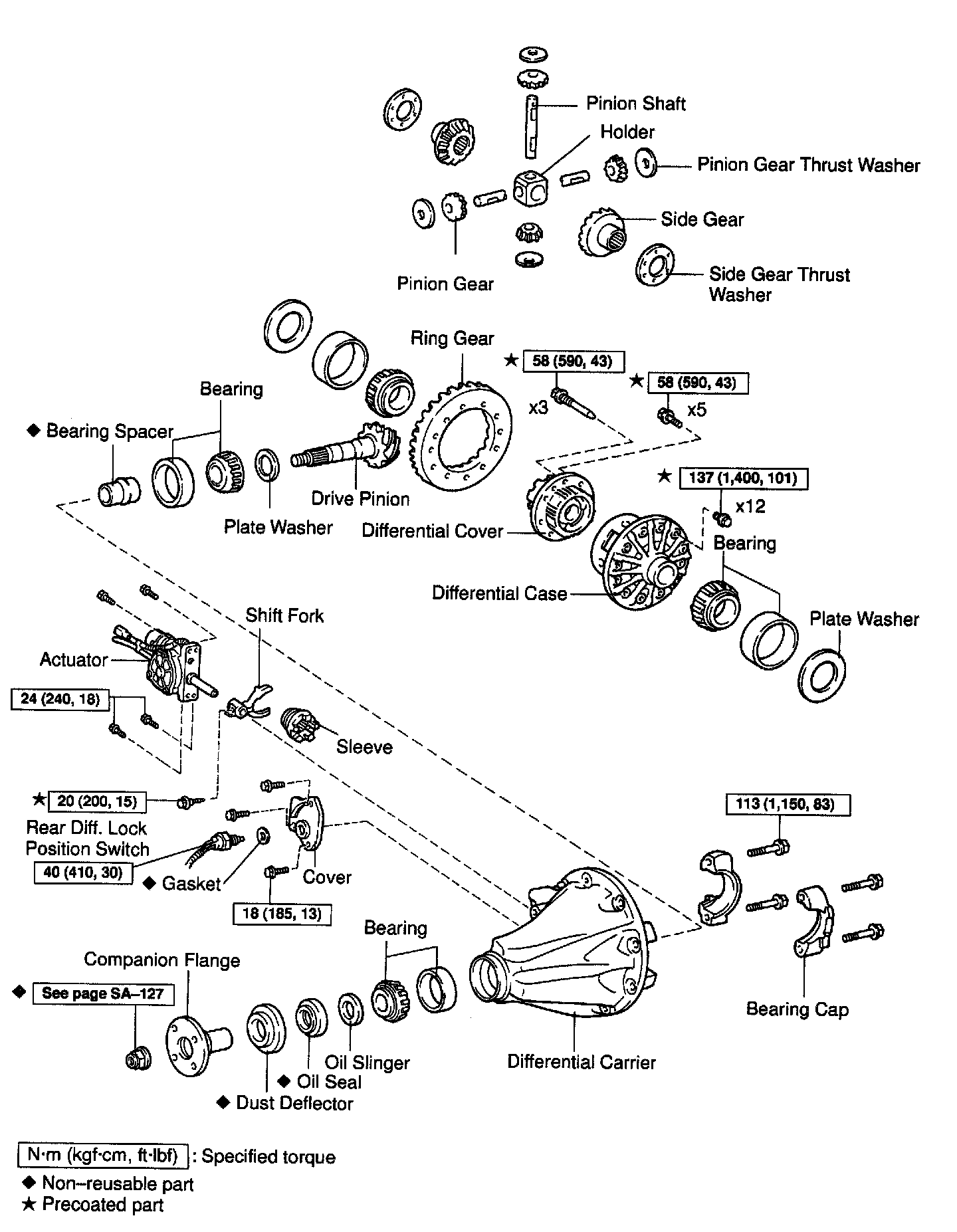

Part 2 Of 2:
REAR
DIFFERENTIAL CARRIER
(w/ Diff. Lock) REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
