Toyota Truck
>>
2005
>>
Landcruiser V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

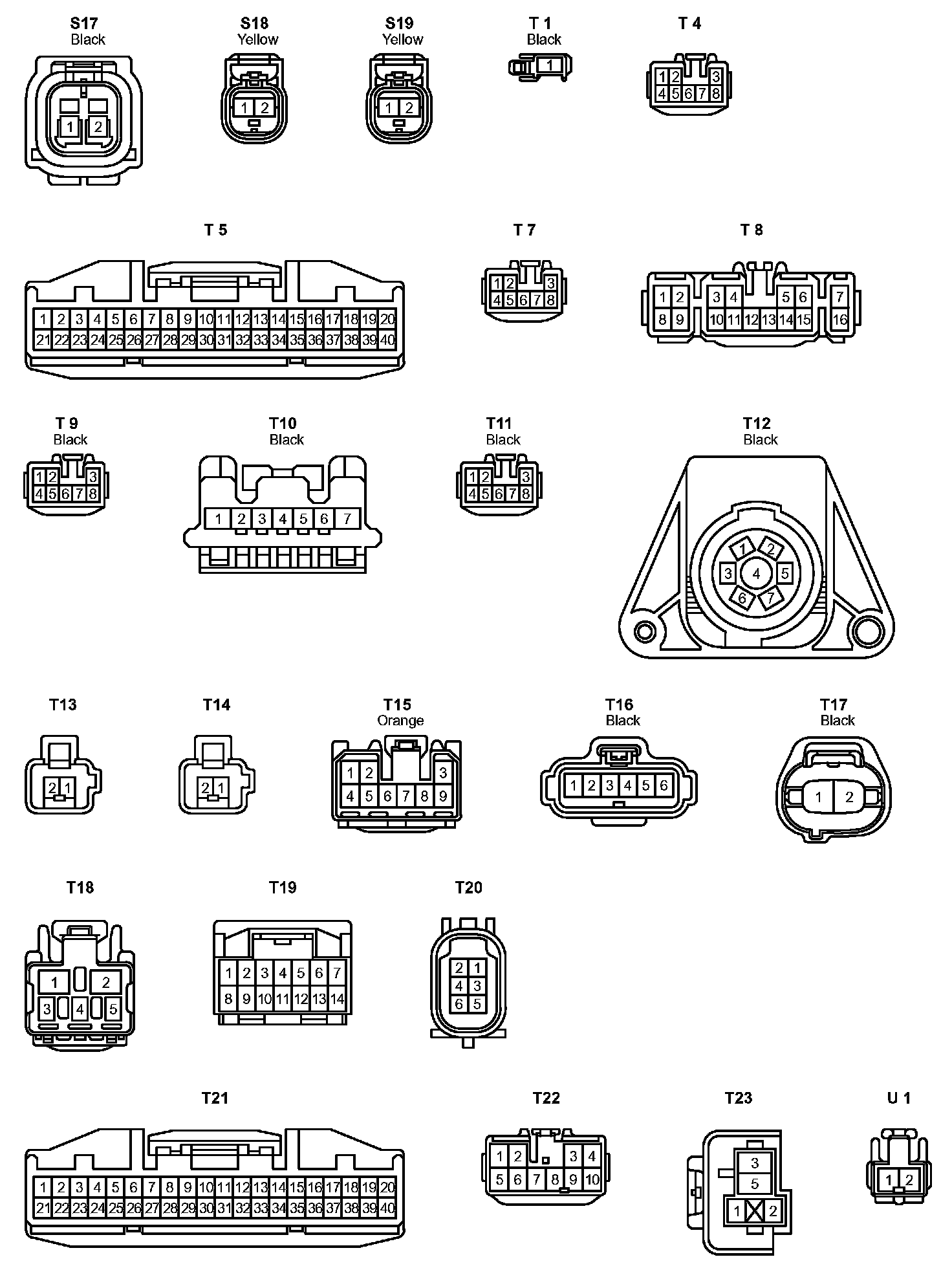

S17 - U1
S17 - U1
S17 - U1:
