Removal and Installation

REMOVAL





1. REMOVE FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
2. DISCONNECT BRAKE LINE
a. Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper.
Torque: 30 Nm (310 kgf-cm, 22 ft. lbs.)
b. Use a container to catch the brake fluid as it drains out.





3. REMOVE CALIPER

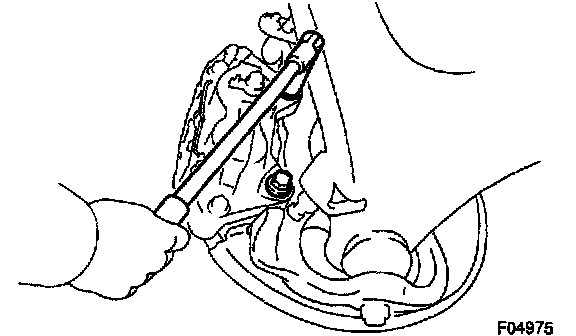

Remove the 2 mounting bolts and remove the caliper.
Torque: 123 Nm (1,250 kgf-cm, 90 ft. lbs.)
4. REMOVE CLIP AND 2 PINS
5. REMOVE 2 PAD RETAINER CLIPS
6. REMOVE 2 PADS, ANTI-SQUEAL SHIMS AND PAD RETAINERS

INSTALLATION
Installation is in the reverse order of removal.

HINT:
^ After installation, fill the brake reservoir with brake fluid and bleed brake system.
^ Check for leaks.
