Front

REMOVAL
REMOVE SPEED SENSOR

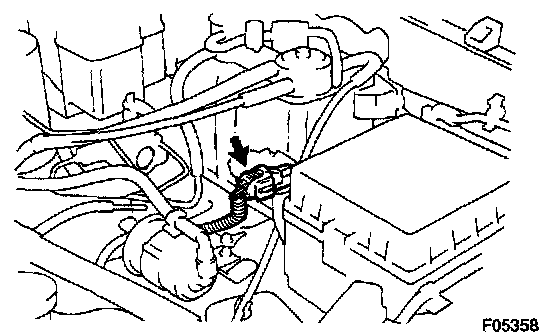

a. Disconnect the speed sensor connector.
b. Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.
Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)





c. Remove the speed sensor installation bolt and speed sensor from the steering knuckle.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check the speed sensor signal.
