VSC TRAC Warning Light Circuit

CIRCUIT DESCRIPTION

If the ECU stores DTC, the VSC TRAC warning light illuminates the combination meter.

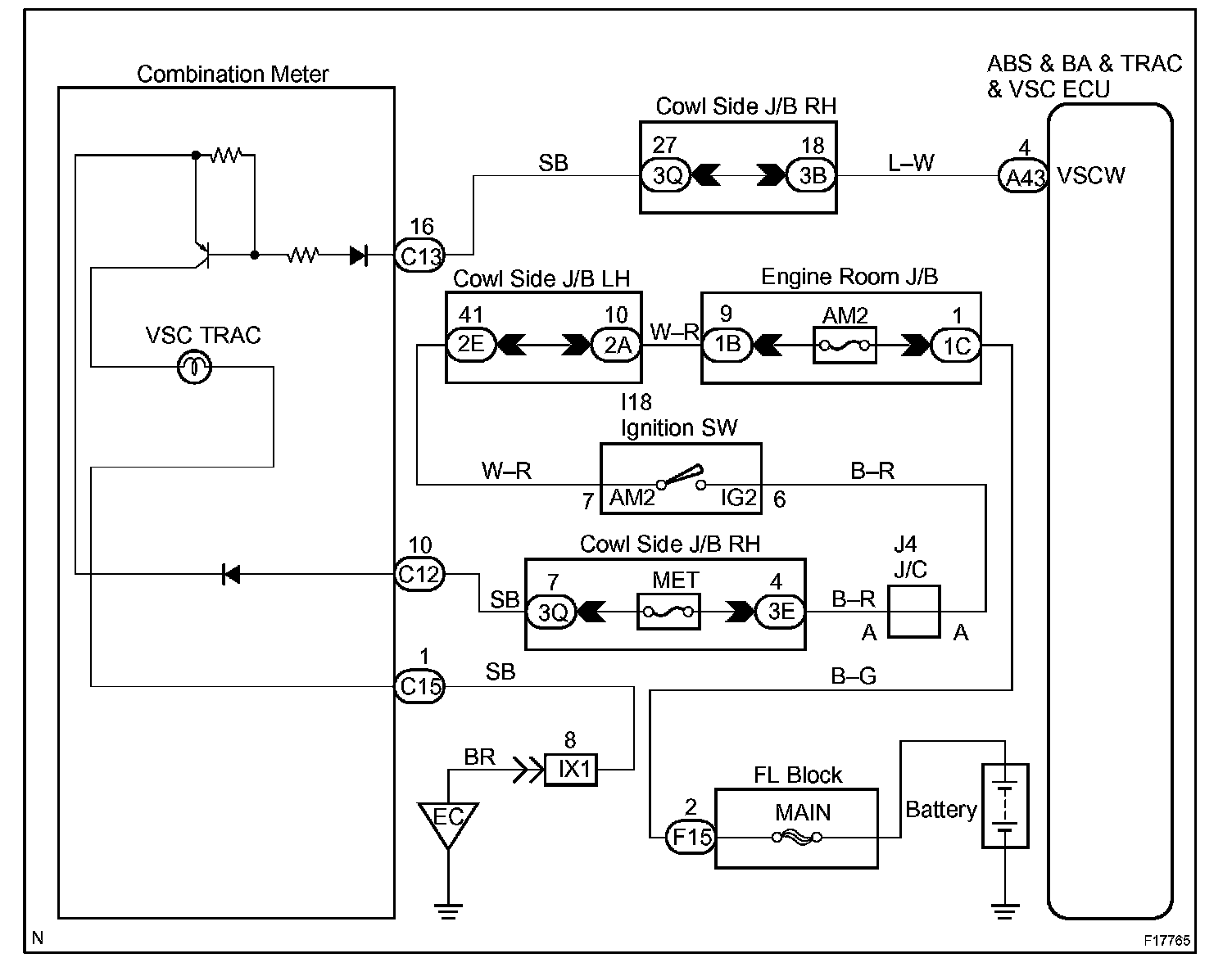

Wiring Diagram:

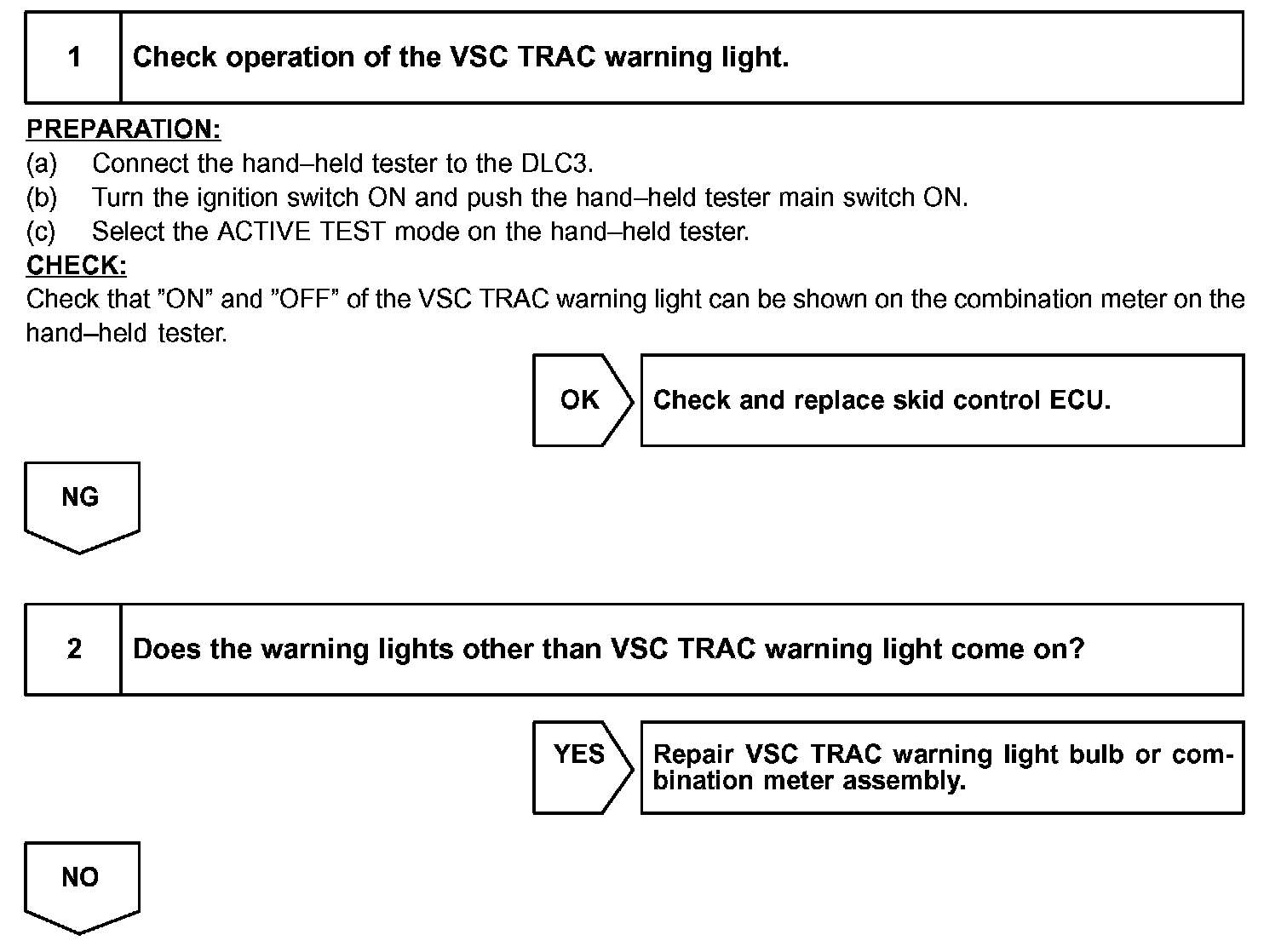

Step 1 - 2:

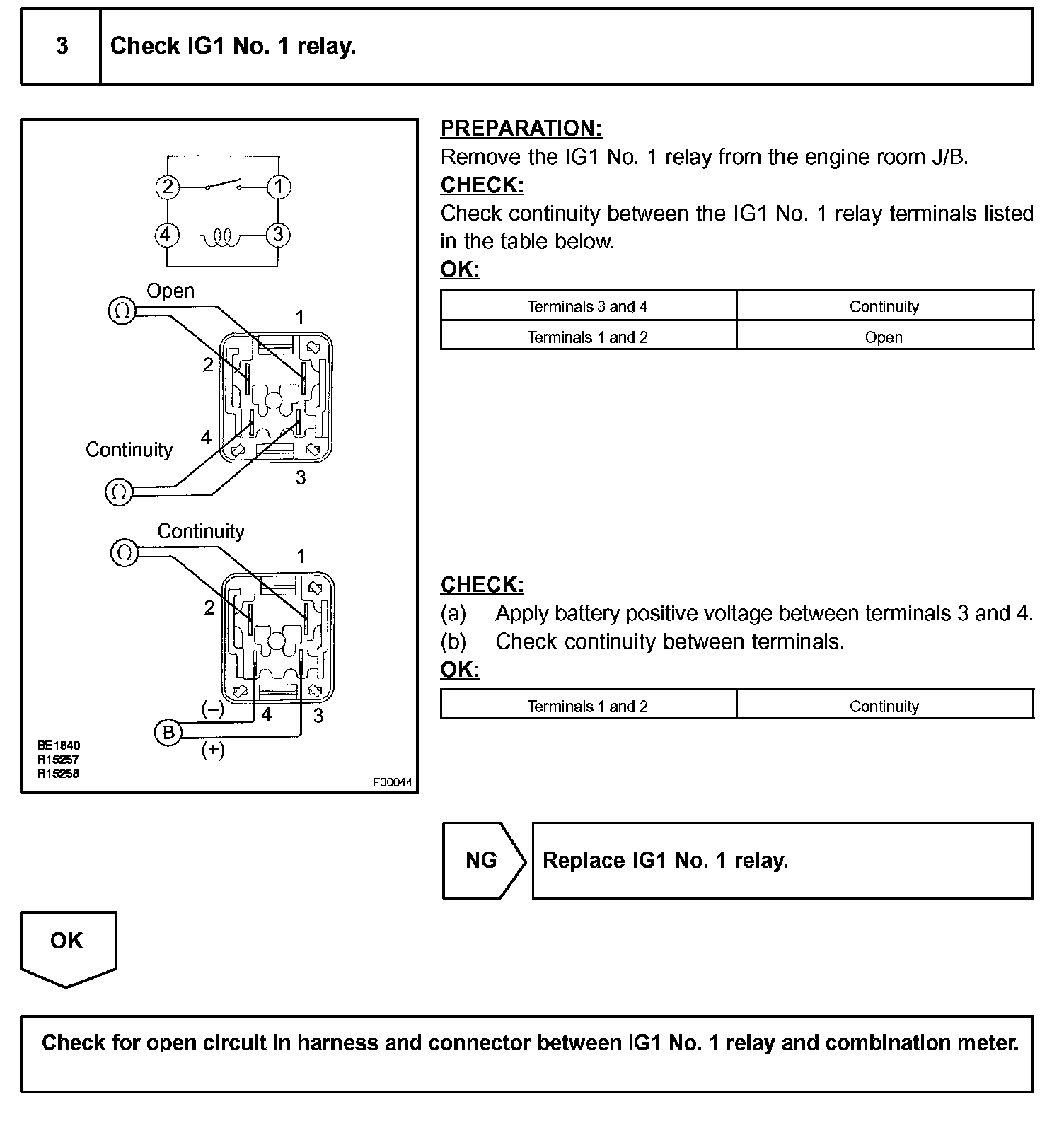

Step 3:

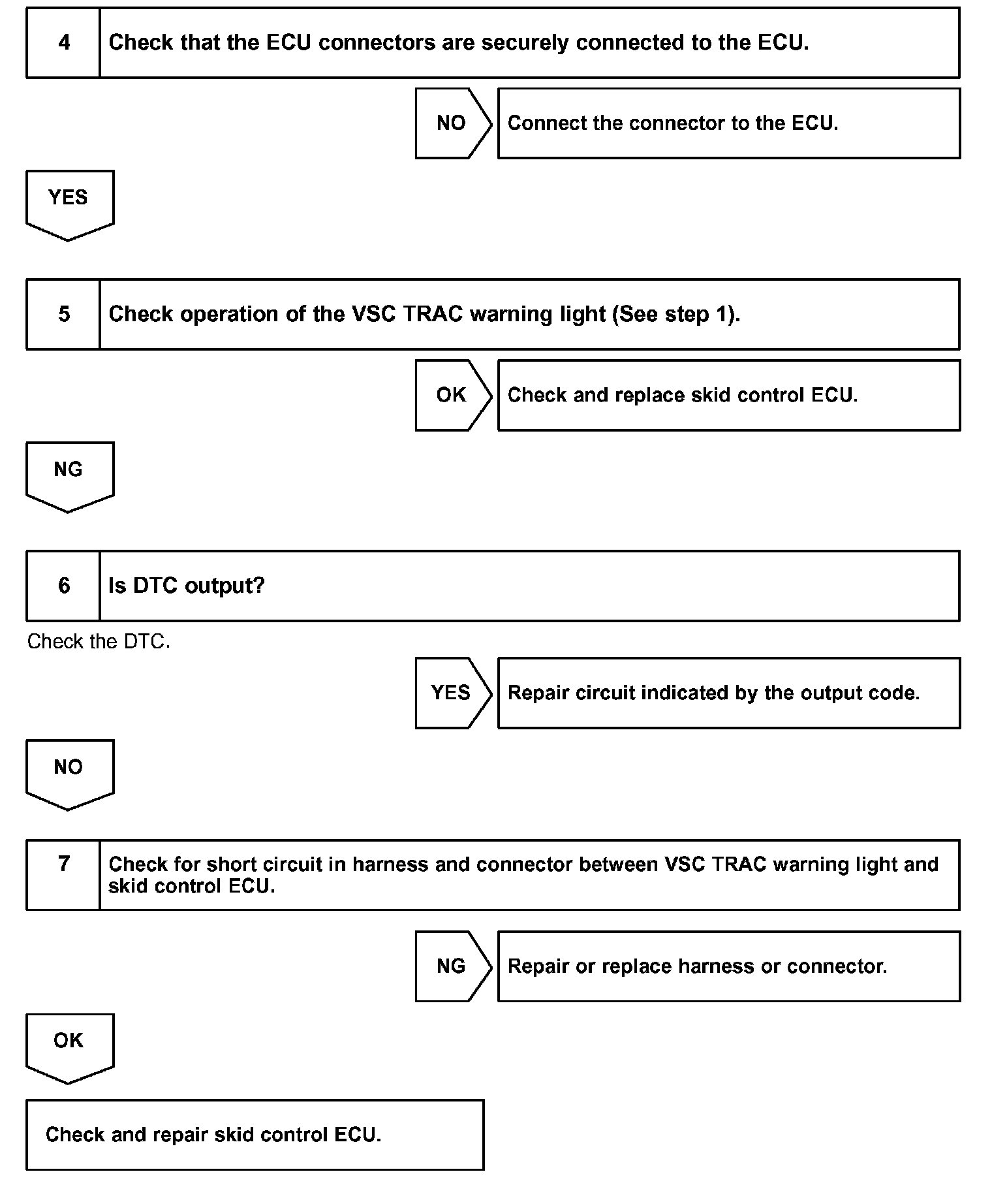

Step 4 - 7:

INSPECTION PROCEDURE

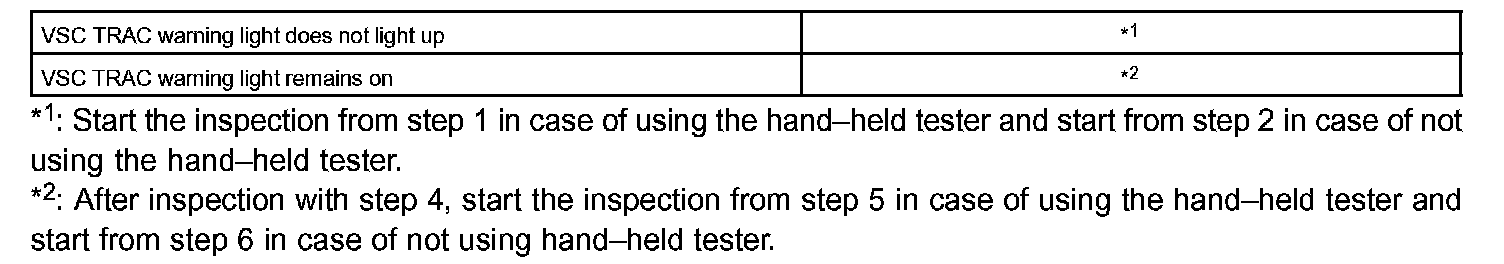

HINT: Troubleshoot in accordance with the table for each trouble symptom.
