SLIP Indicator Light Circuit

CIRCUIT DESCRIPTION

The SLIP indicator blinks during VSC operation.

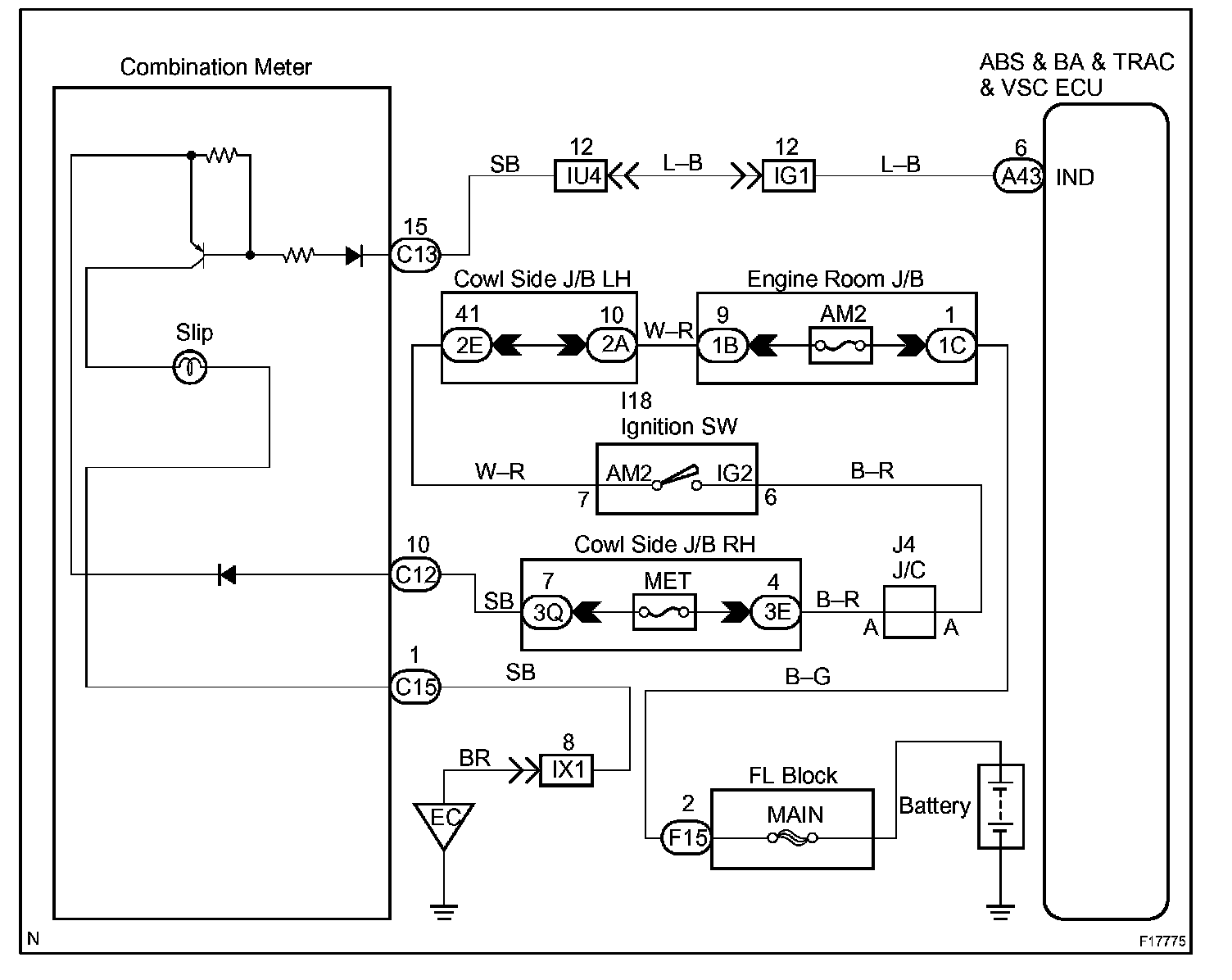

Wiring Diagram:

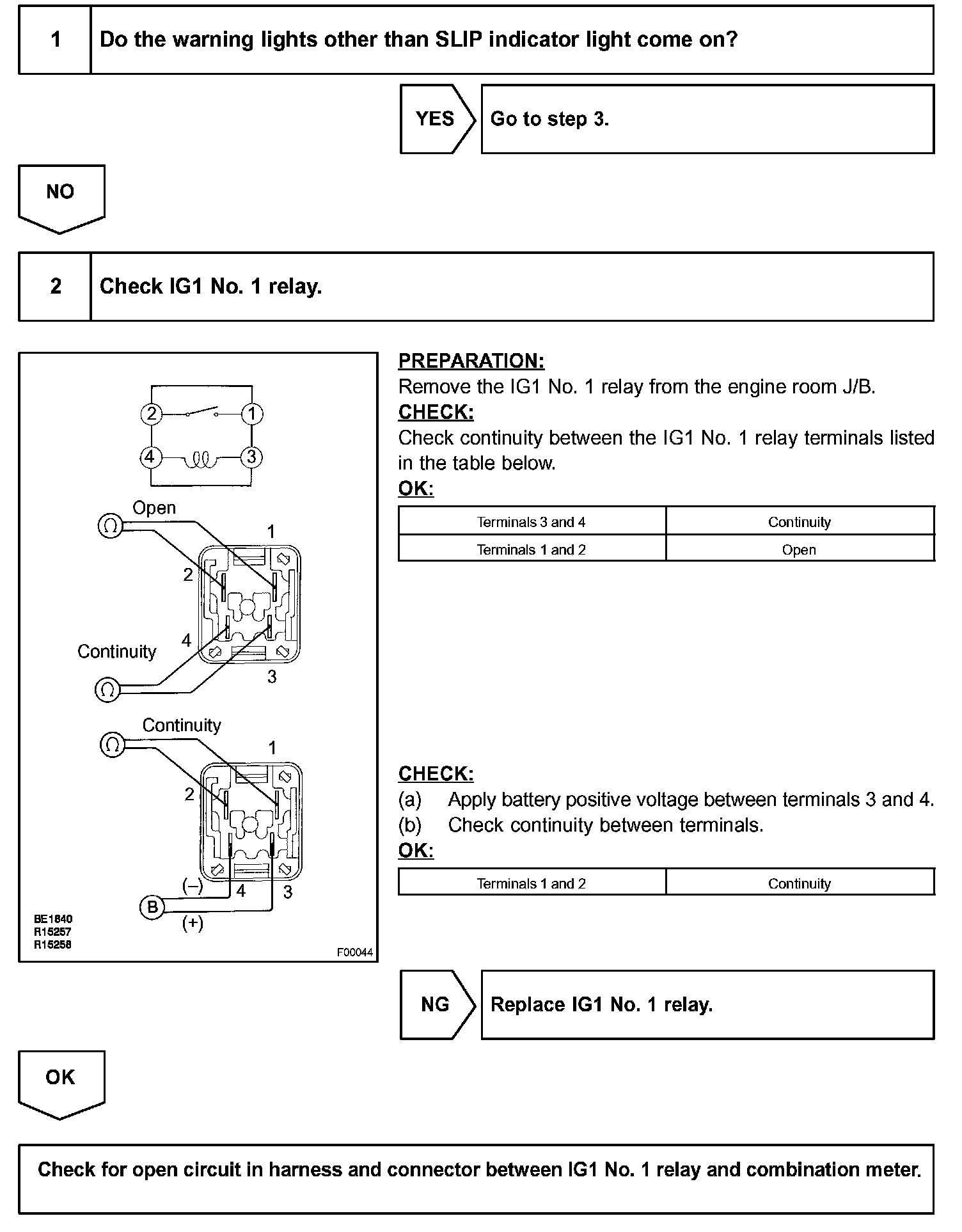

Step 1 - 2:

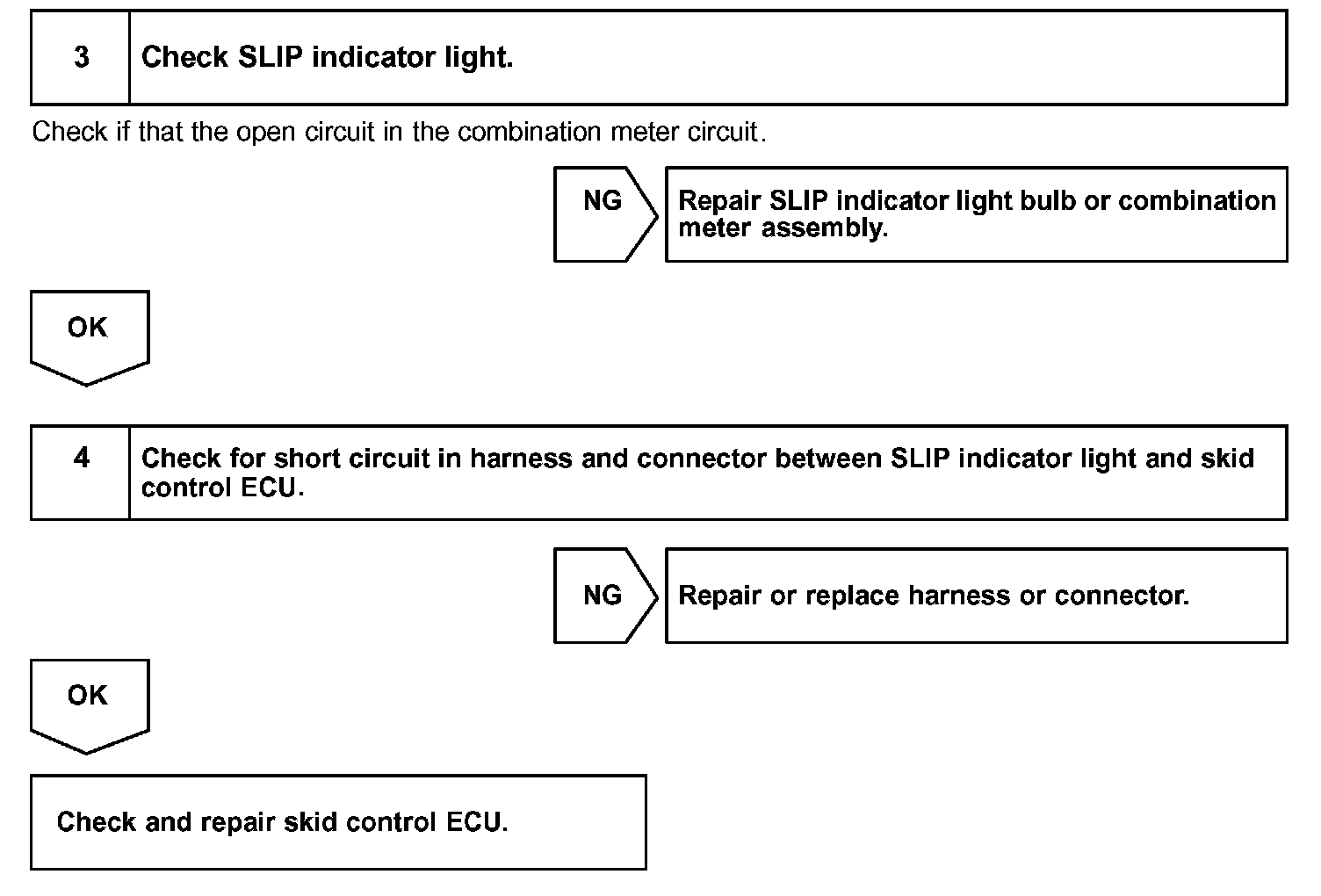

Step 3 - 4:




INSPECTION PROCEDURE
