With Manufacturer's Scan Tool

SPEED SENSOR SIGNAL CHECK (TEST MODE)

In case of using hand held tester




Check the sensor signal

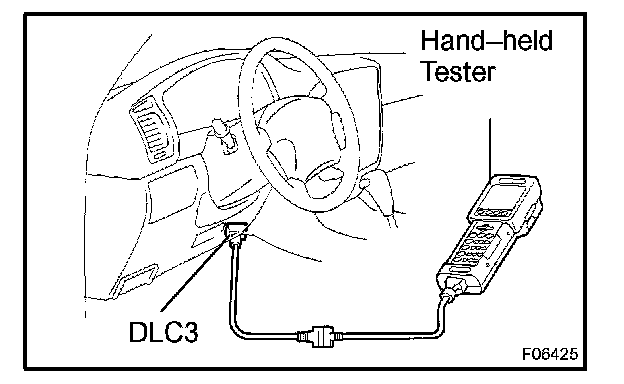

1. Hook up the hand held tester to the DLC3.
2. Do step (3) to (10) on the previous image.
3. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the hand held tester operator's manual for further details.

C1271 - C1283:

DTC of speed sensor signal check function:
