Accessory Control Display: Testing and Inspection

TROUBLESHOOTING






HINT:

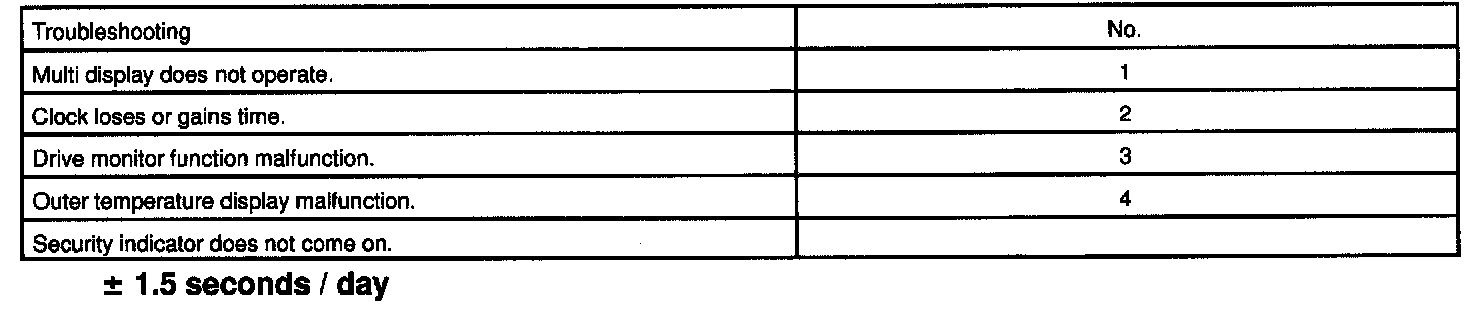

- Troubleshoot the Multi Display according to the table.
- W/ Navigation System, refer to Navigation System; Testing and Inspection.

Part 1:

Part 2:

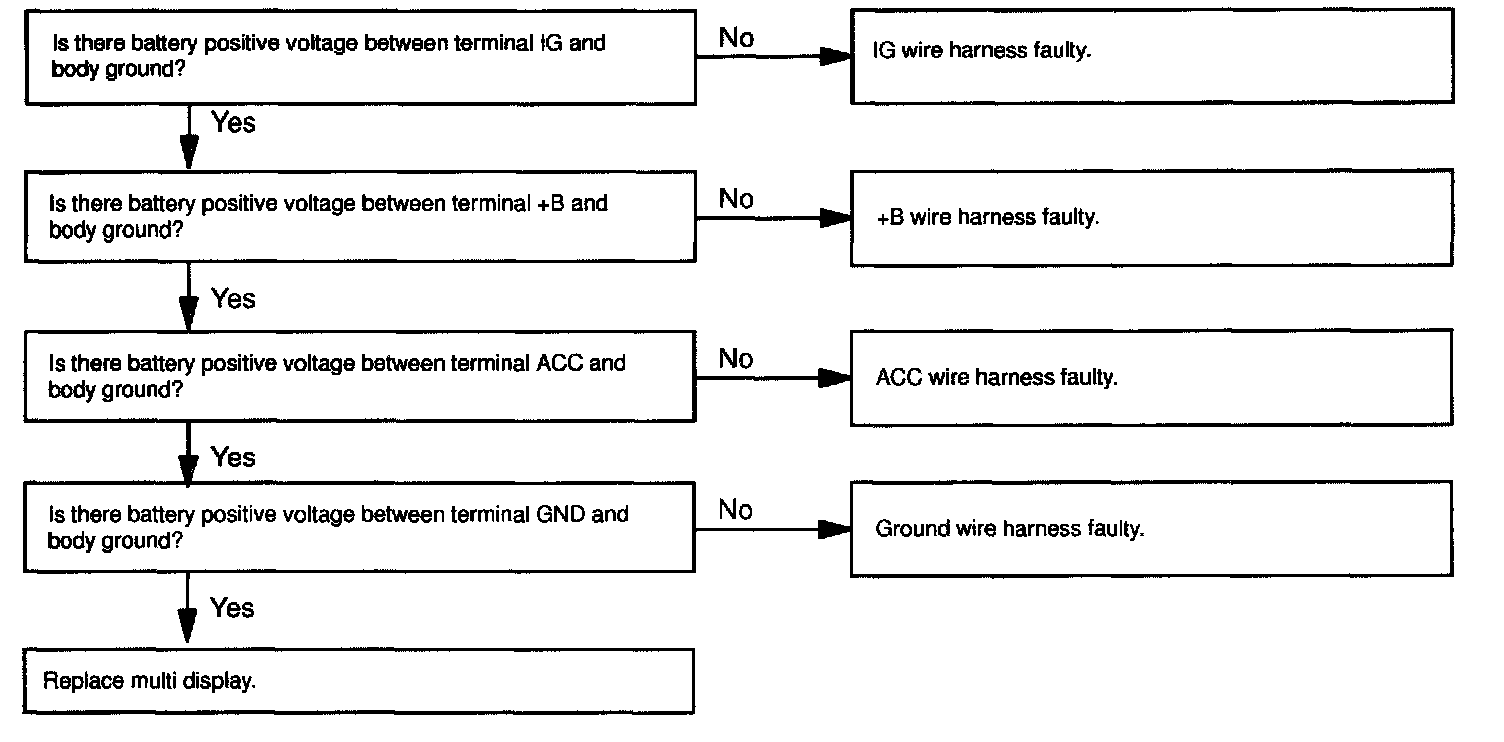

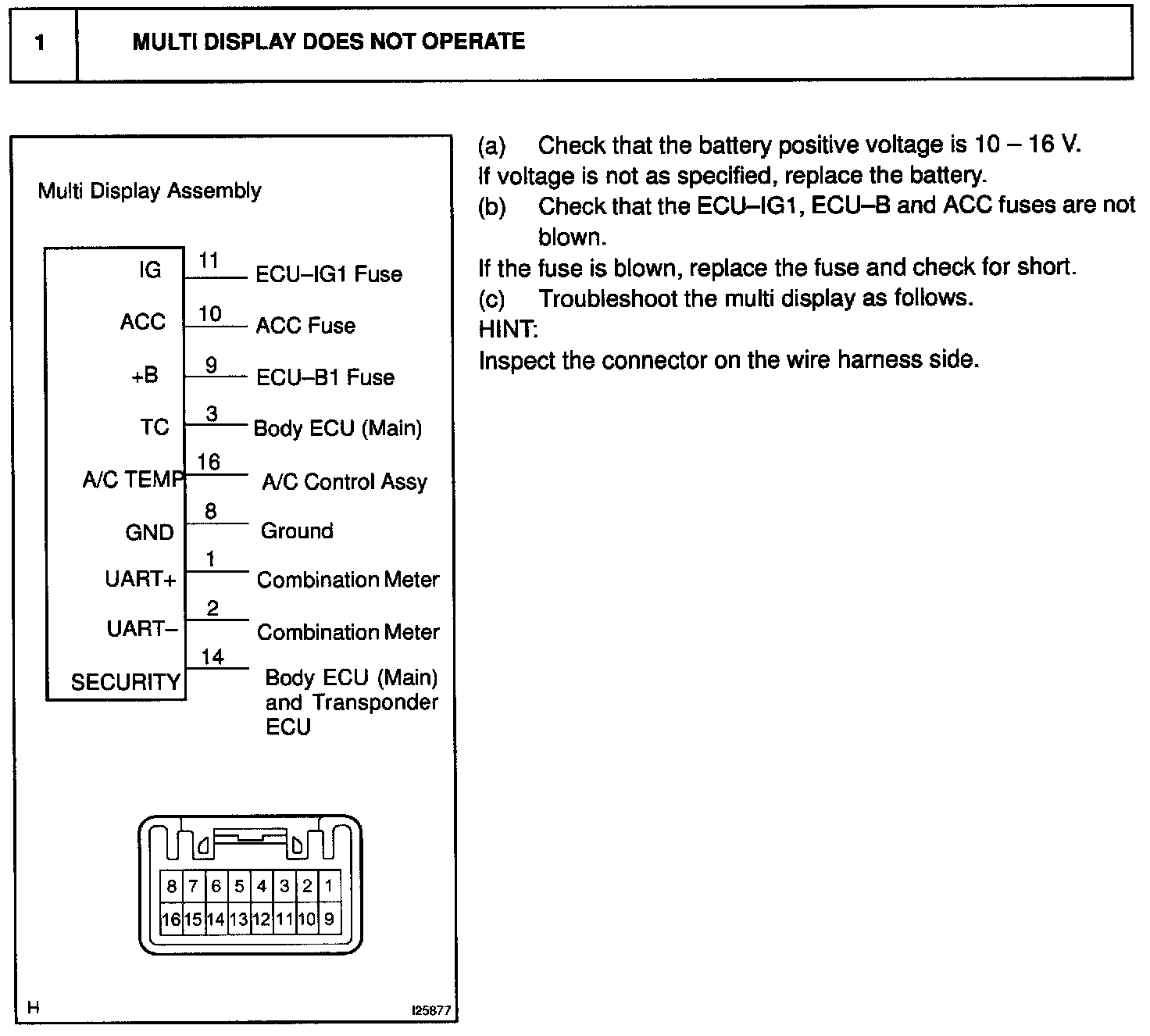

1. TROUBLESHOOTING NO.1

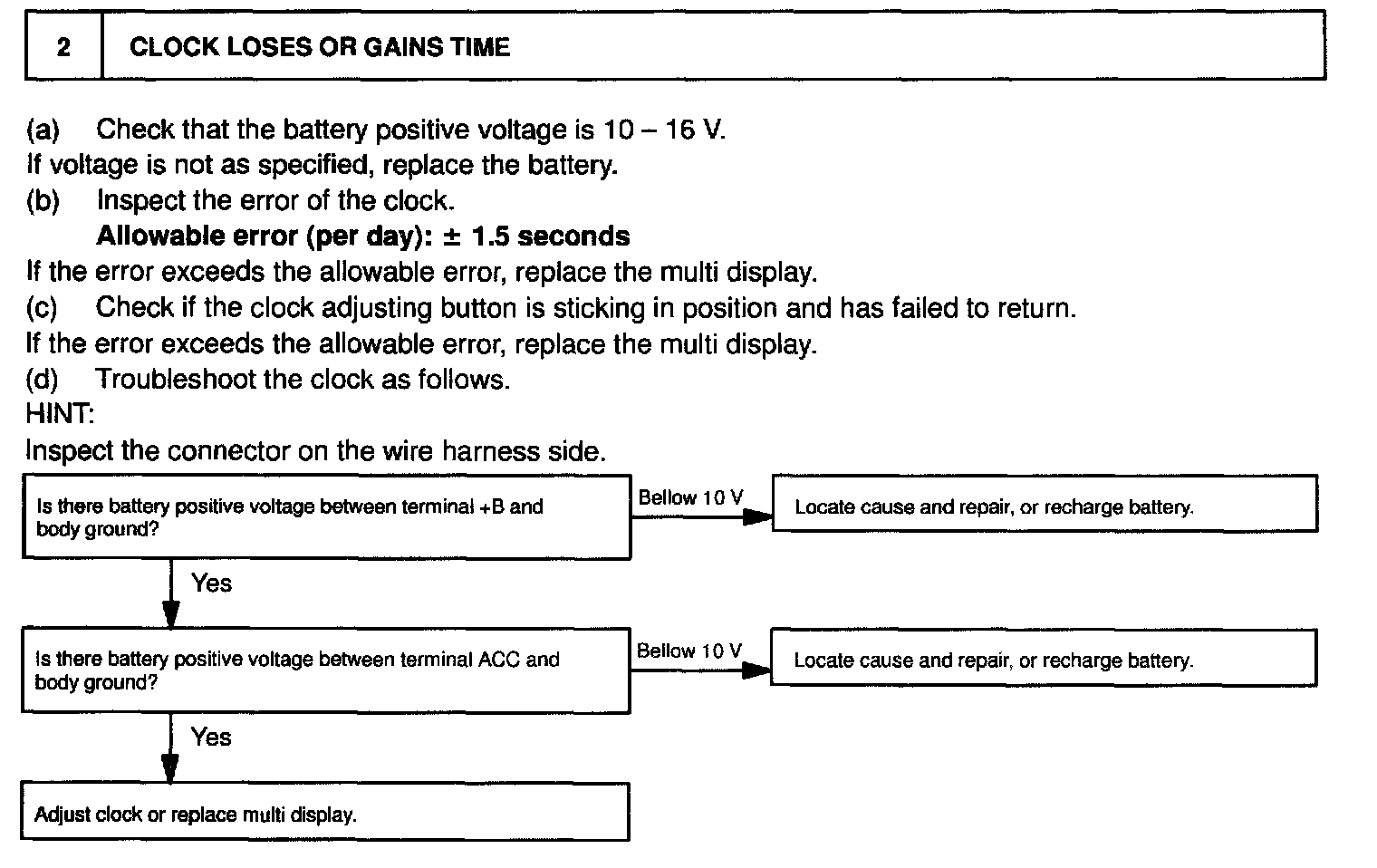

2. TROUBLESHOOTING NO.2

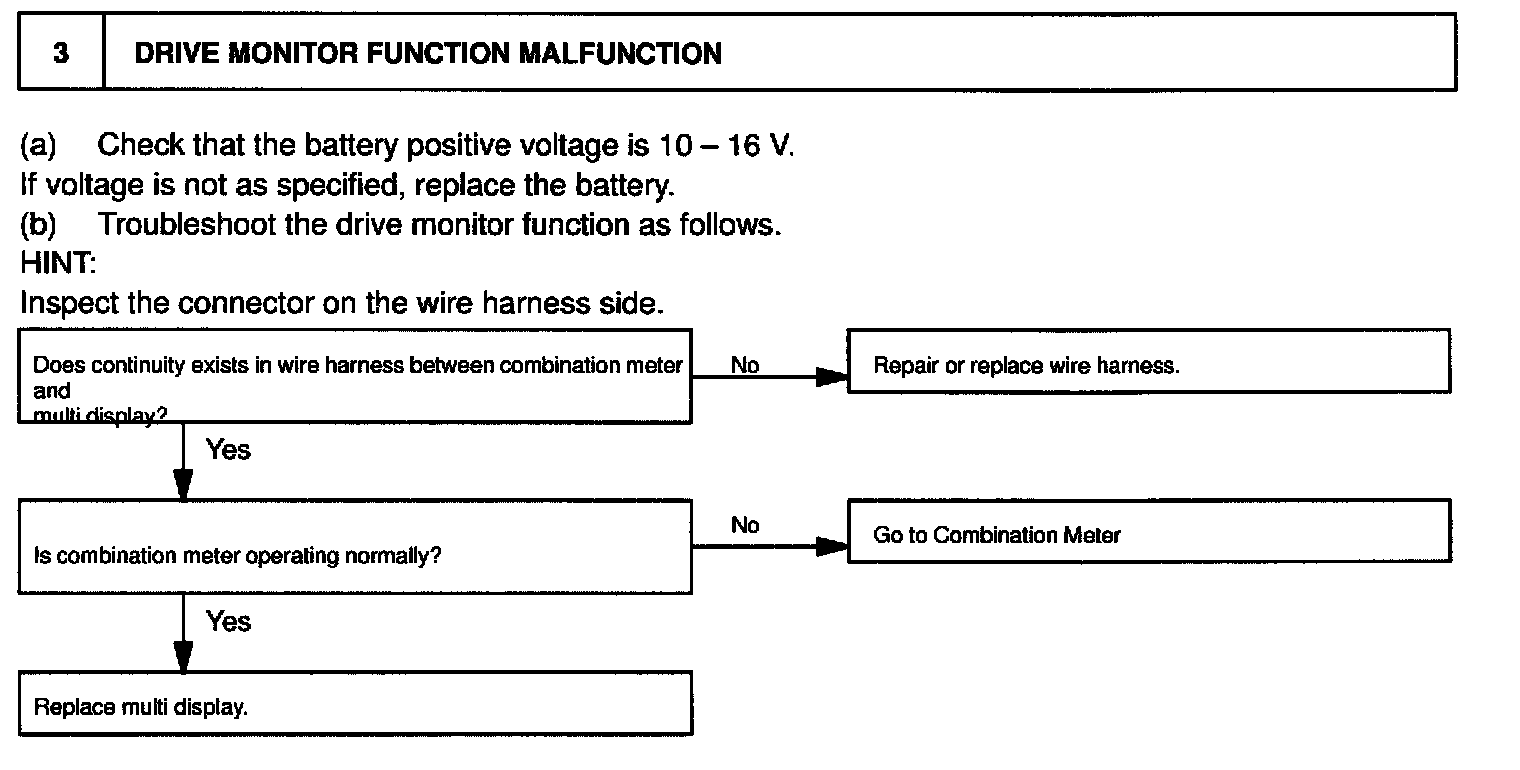

3. TROUBLESHOOTING NO.3

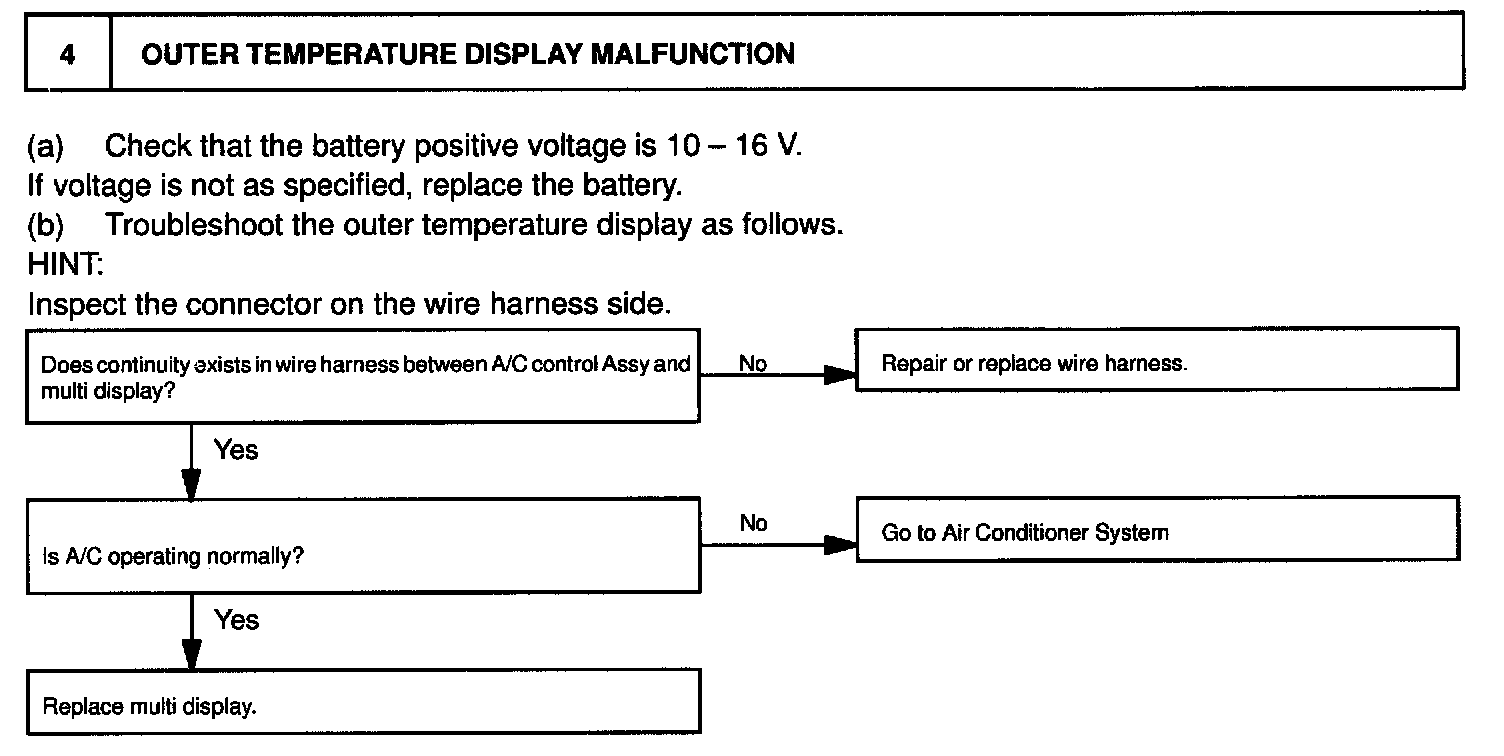

4. TROUBLESHOOTING NO.4
