Navigation System

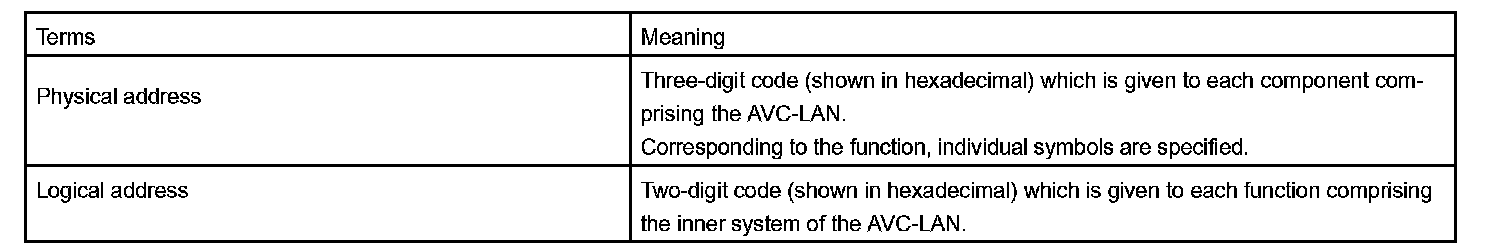

DIAGNOSTIC TROUBLE CODE CHART

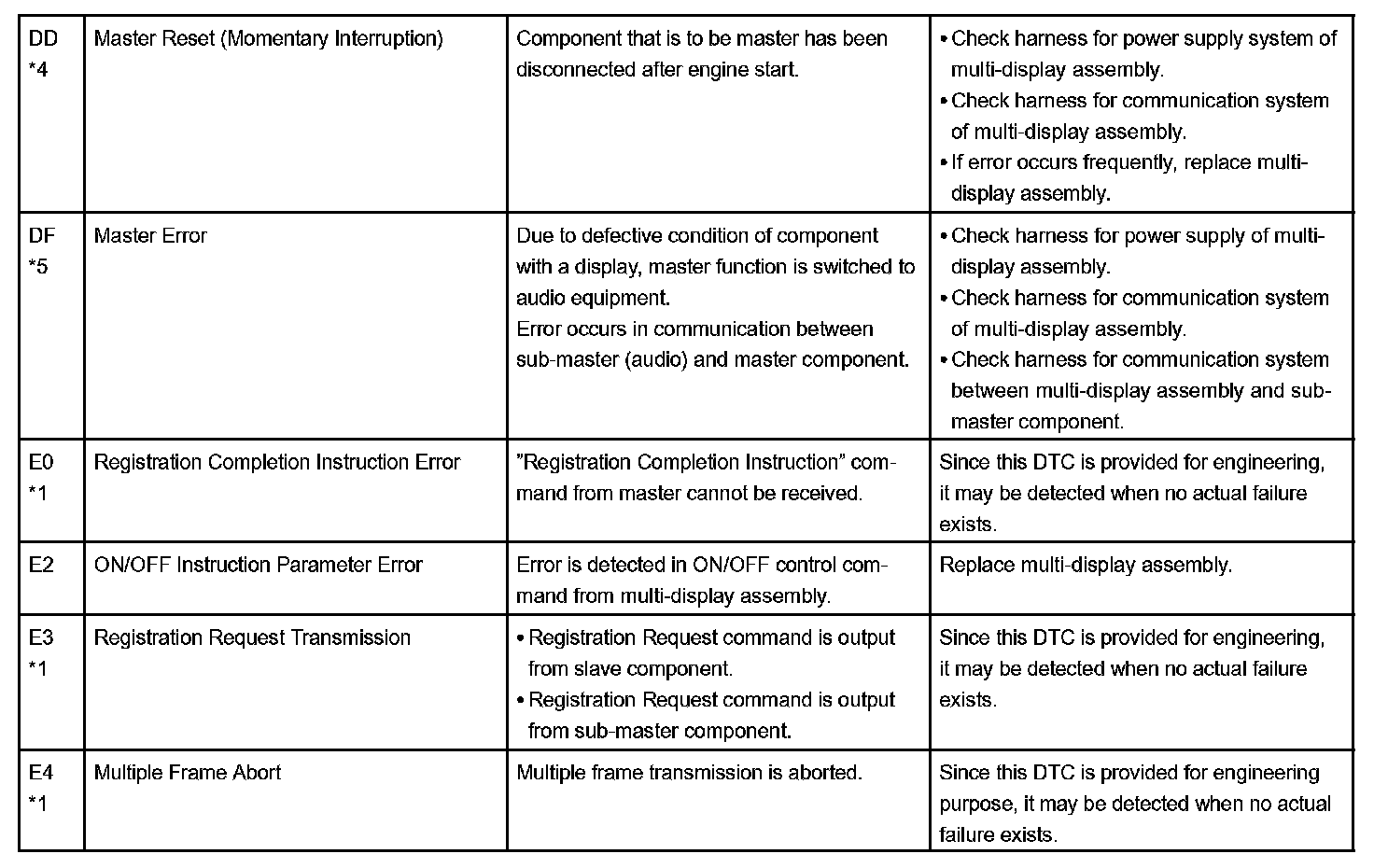

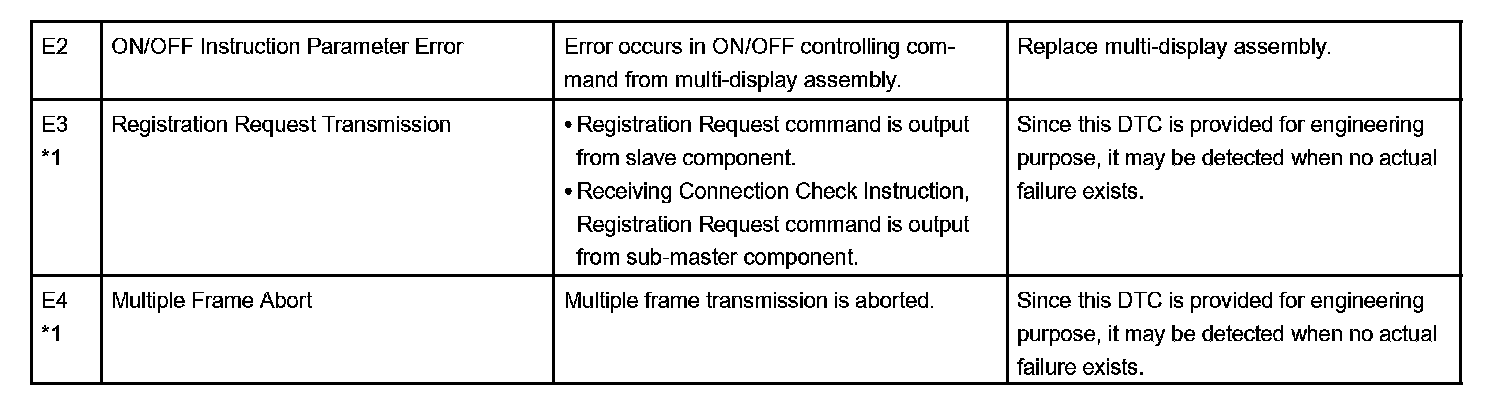

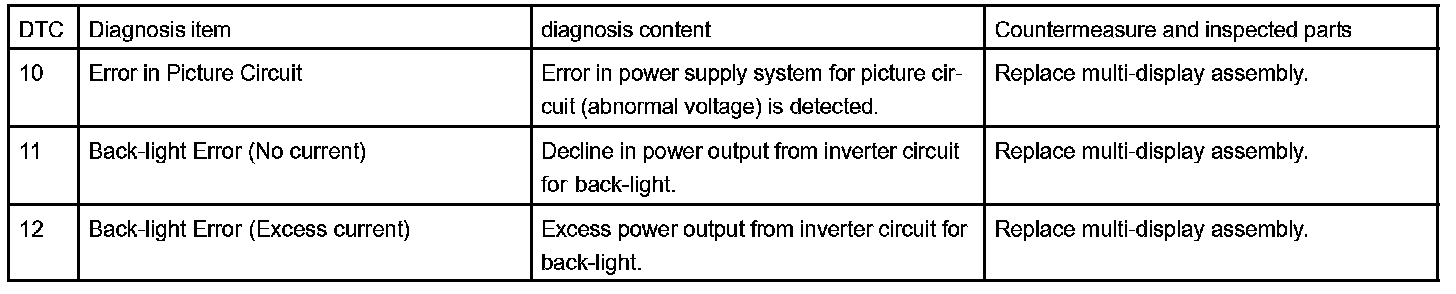

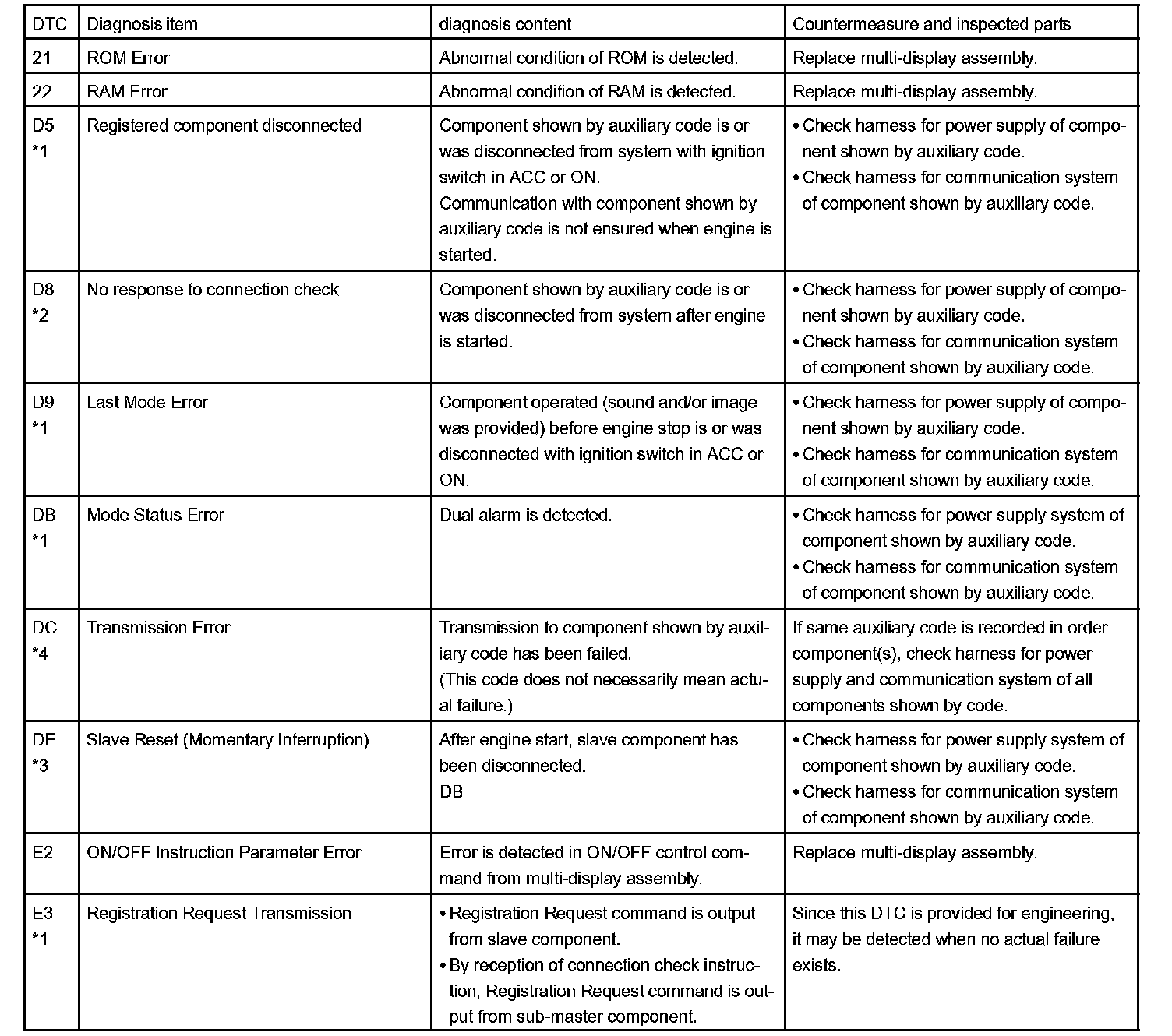

1. PHYSICAL ADDRESS: 110 MULTI DISPLAY (EMV)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: It may be stored when the engine key is turned 1 min. again after engine start.

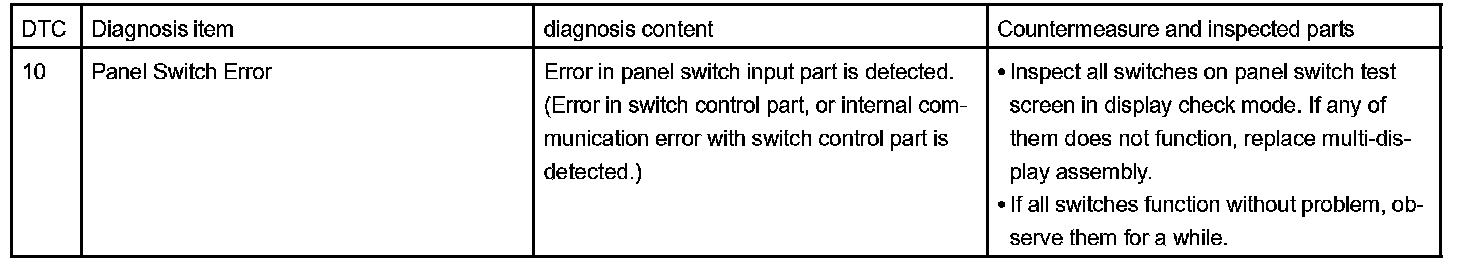

21 - E3*1:




a. Logical address: 01 (Communication control)

10:




b. Logical address: 21 (Switch)

10 - 12:




c. Logical address: 34 (Front passenger monitor)

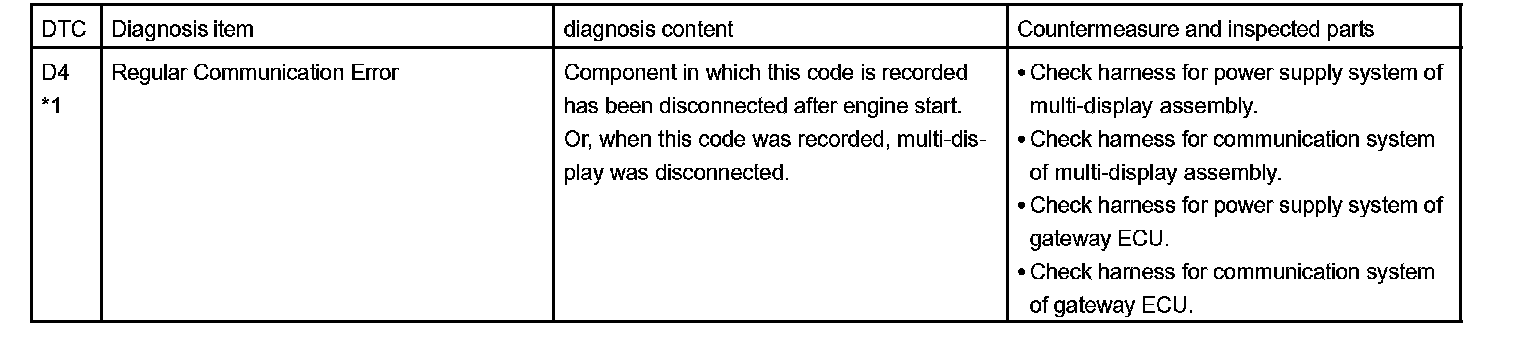

2. PHYSICAL ADDRESS: 1C6 GATEWAY ECU (G/W-ECU)

HINT: *1: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

D4:




Logical address: 01 (Communication control)

3. PHYSICAL ADDRESS: 190 RADIO RECEIVER (AUDIO H/U)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

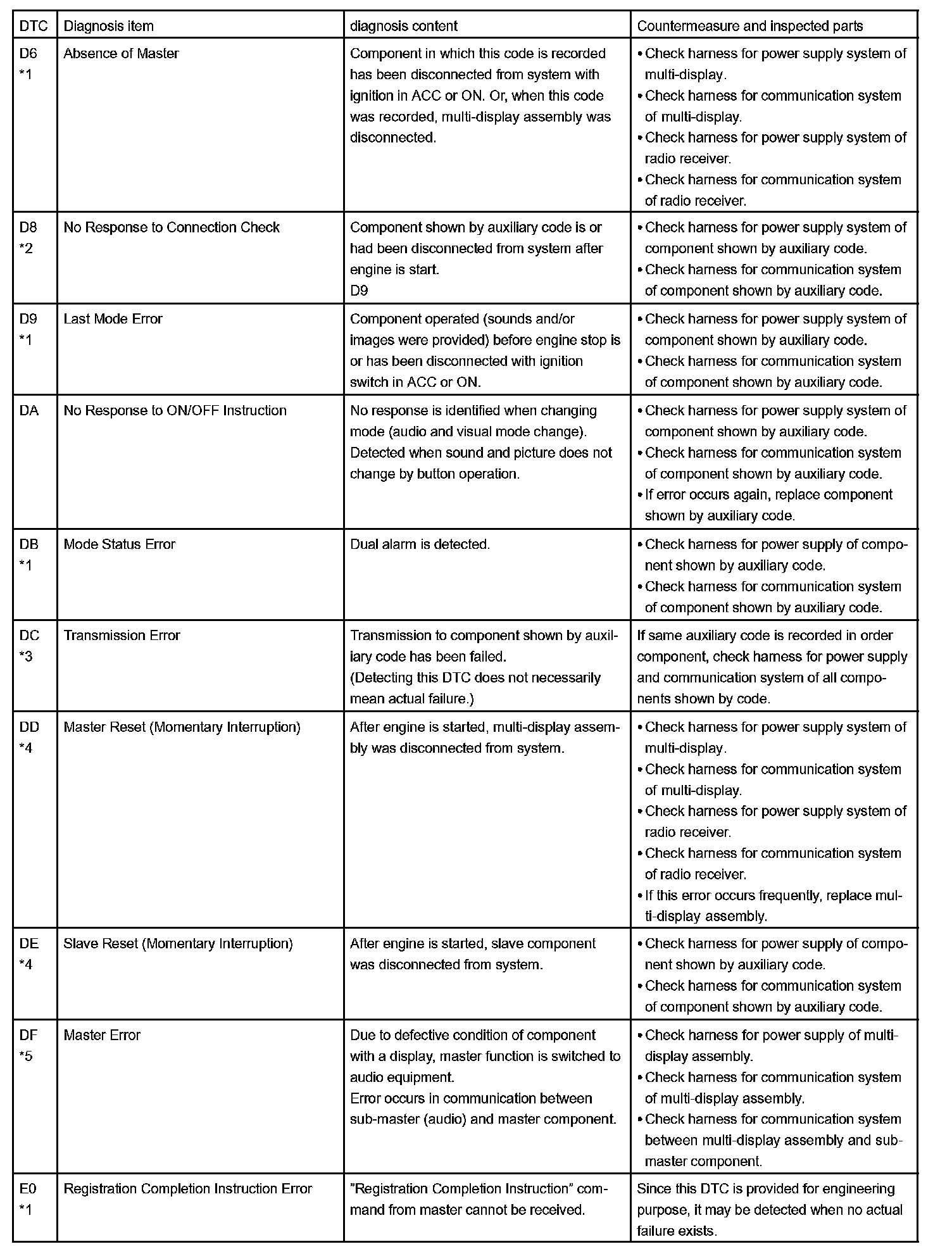

D6*1 - E0*1:




E1*1 - E4*1:




a. Logical address: 01 (Communication control)

40:




b. Logical address: 61 (Cassette switch)

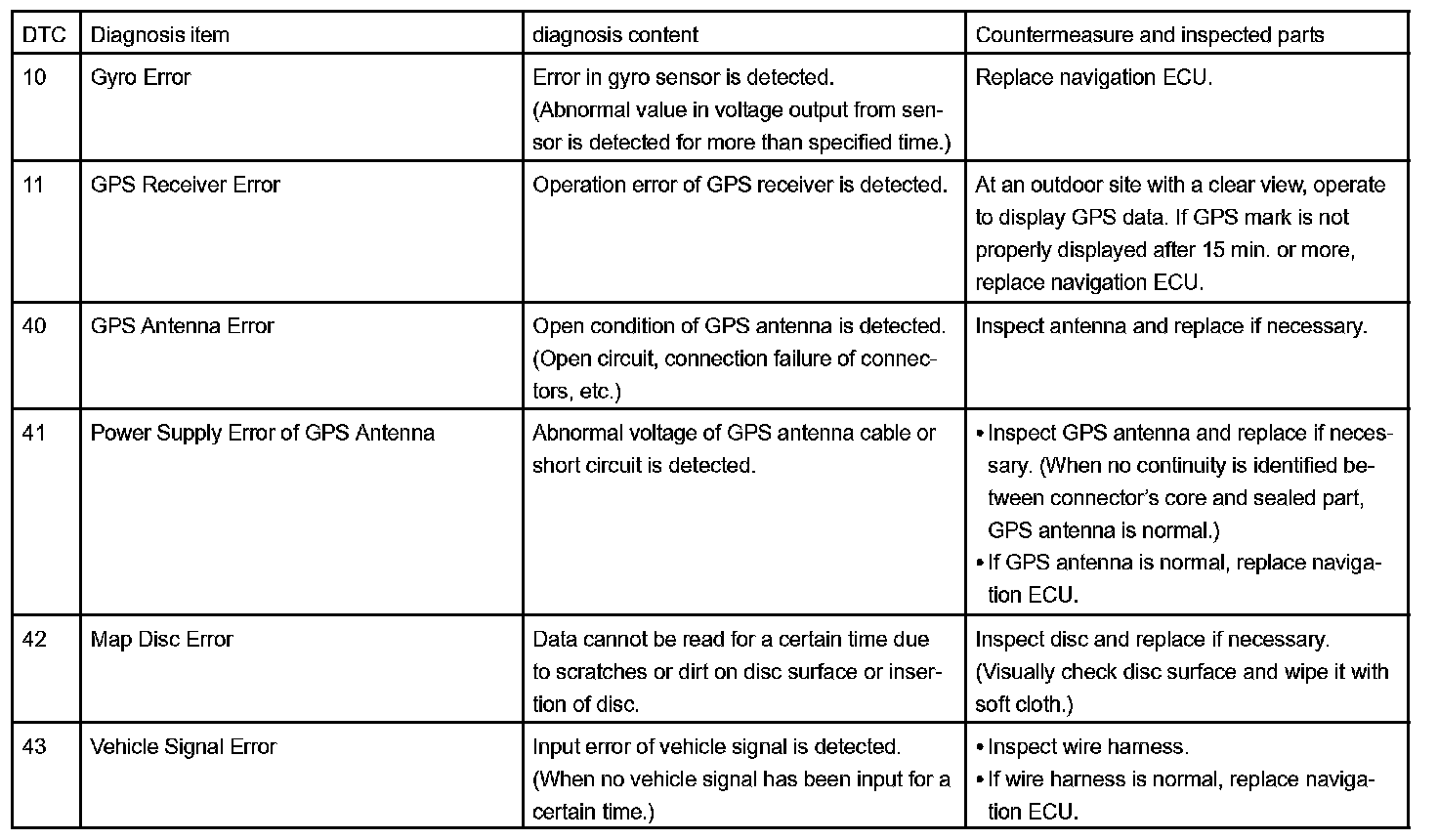

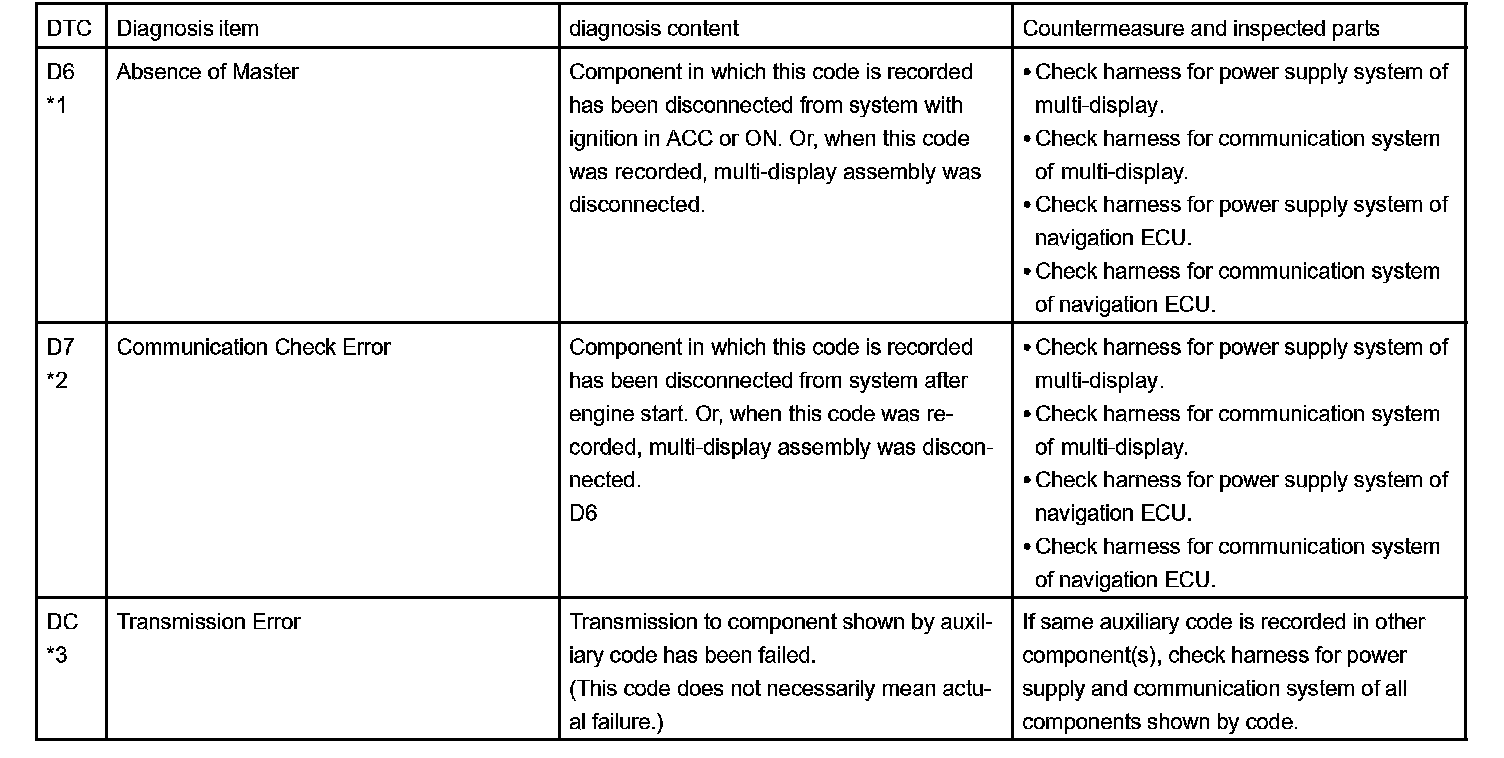

4. PHYSICAL ADDRESS: 178 NAVIGATION ECU (NAVI-ECU)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
- *3: It may be stored when the engine key is turned 1 min. again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.

D6*1 - DC*3:




DD*4 - E4*1:




a. Logical address: 01 (Communication control)

10 - 43:




b. Logical address: 58 (Navigation ECU)

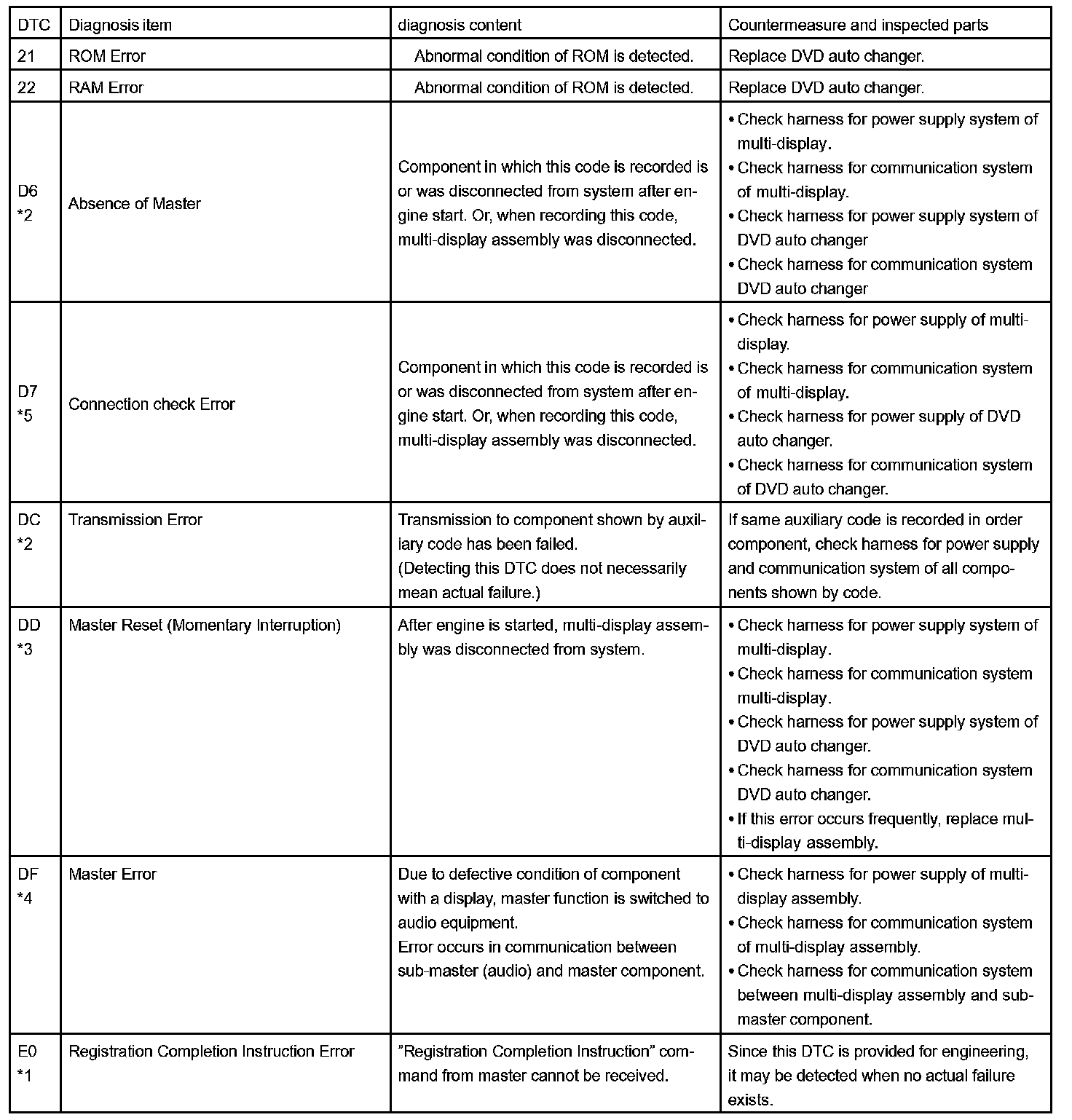

5. PHYSICAL ADDRESS: 250 DVD AUTO CHANGER (DVD-CH)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 min. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

21 - E0*1:




E2 - E4*1:




Logical address: 01 (Communication control)
